FT60DET (2005)
CRANKSHAFT & PISTON

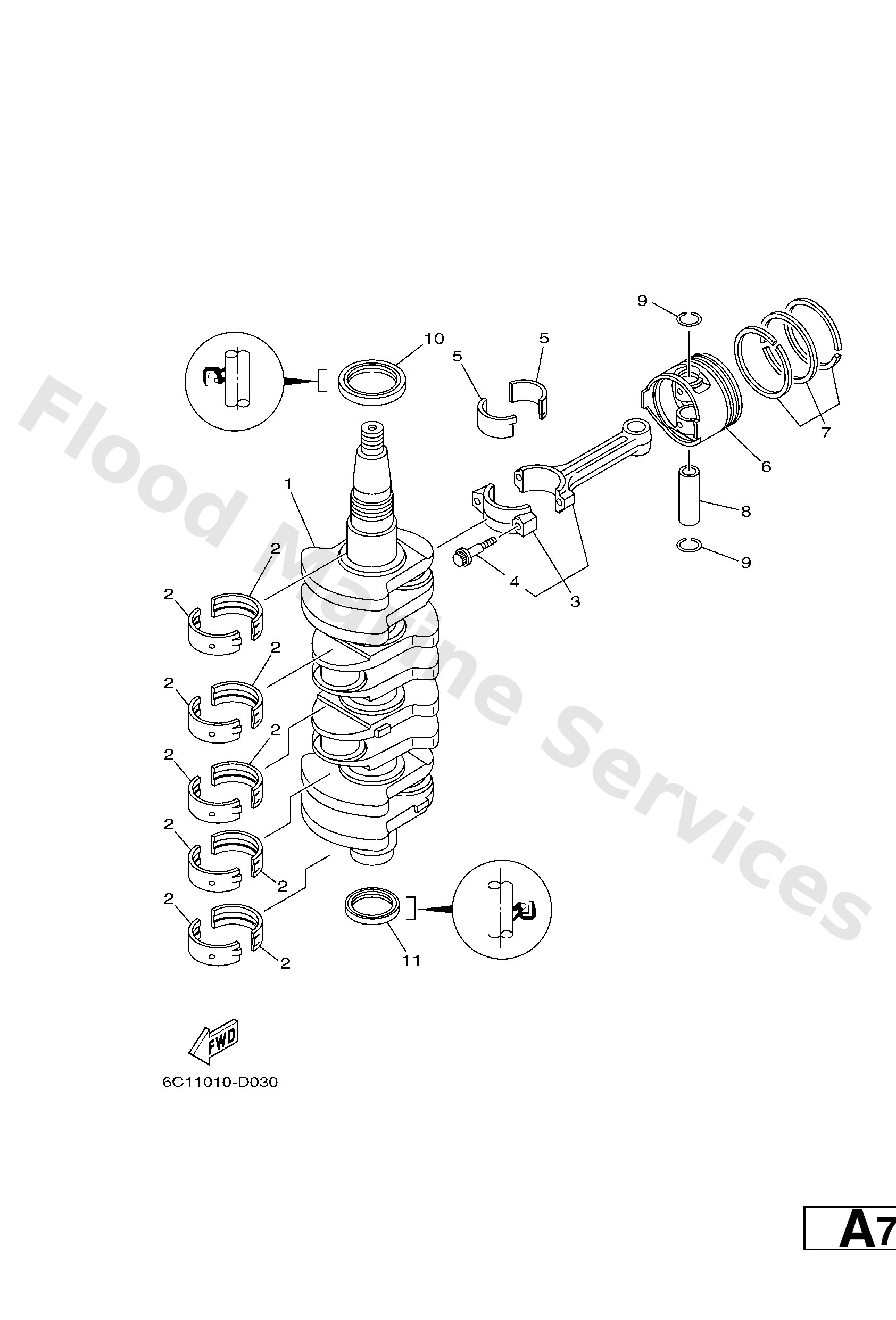

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6C51141100
Crankshaft & nut set
Loading…
↗
2
6C51141600
UR YELLOW
Plane bearing, crankshaft 1
Loading…
↗
2
6C51141610
UR RED
Plane bearing, crankshaft 1
Loading…
↗
2
6C51141620
UR PINK
Plane bearing, crankshaft 1
Loading…
↗
2
6C51141630
UR GREEN
Plane bearing, crankshaft 1
Loading…
↗
3
6C51165000
Connecting rod assembly
Loading…
↗
4
6C51165400
Bolt, connecting rod
Loading…
↗
5
6C51165630
UR GREEN
Plane bearing, connecting rod
Loading…
↗
5
6C51165620
UR PINK
Plane bearing, connecting rod
Loading…
↗
5
6C51165610
UR RED
Plane bearing, connecting rod
Loading…
↗
5
6C51165600
UR YELLOW
Plane bearing, connecting rod
Loading…
↗
6
69W116310097
Piston (std)
Loading…
↗
6
69W1163500
AP
Piston (0.25mm o/s)
Loading…
↗
6
69W1163600
AP
Piston (0.50mm o/s)
Loading…
↗
7
67C1160300
Piston ring set (std)
Loading…
↗
7
67C1160400
AP
Piston ring set (0.25mm o/s)
Loading…
↗
7
67C1160500
AP
Piston ring set (0.50mm o/s)
Loading…
↗
8
62Y1163300
Pin, piston
Loading…
↗
9
9345017129
Circlip(1ar)
Loading…
↗
10
9310243M42
Oil seal(62y)
Loading…
↗
11
9310135002
Oil seal
Loading…
↗
