FT8DMH (2004)
CRANKSHAFT & PISTON

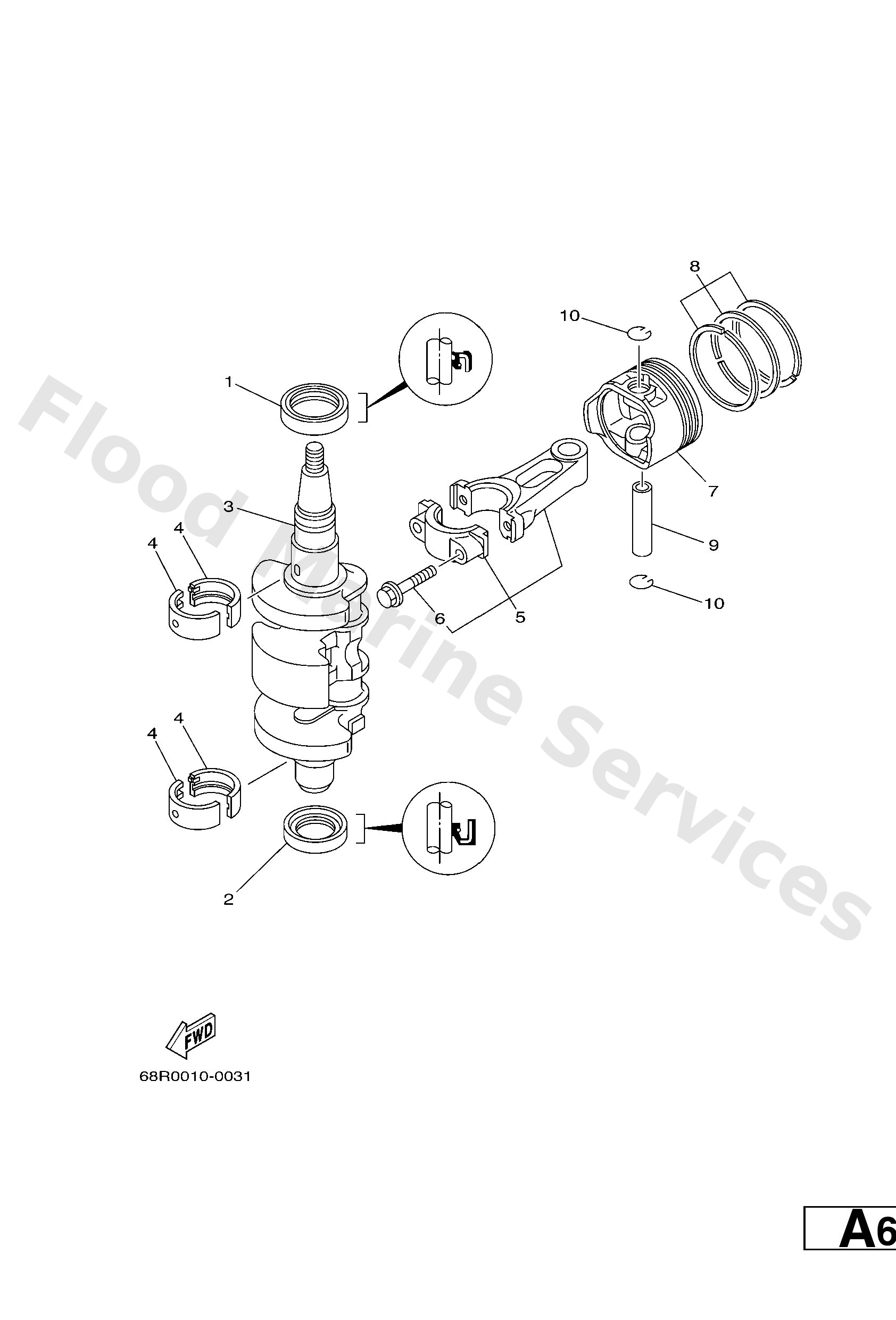

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
9310230M22
Oil seal (6g8)
Loading…
↗
2
9310125M69
Oil seal
Loading…
↗
3
68T1141100
-
Loading…
↗
4
68T1141600
UR BROWN
Plane bearing, crankshaft 1
Loading…
↗
4
68T1141610
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
4
68T1141620
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
5
68T1165000
Connecting rod kit
Loading…
↗
6
67D1165400
Bolt, connecting rod
Loading…
↗
7
68T116310096
Piston (std)
Loading…
↗
7
68T1163500
AP
Piston (0.25mm o/s)
Loading…
↗
7
68T1163600
AP
Piston (0.50mm o/s)
Loading…
↗
8
68T1160301
Piston ring set (std)
Loading…
↗
8
68T1160401
AP
Piston ring set (0.25mm o/s)
Loading…
↗
8
68T1160501
AP
Piston ring set (0.50mm o/s)
Loading…
↗
9
68T1163300
Pin, piston
Loading…
↗
10
9345015023
Circlip 131116340000
Loading…
↗
