FT9.9LMH (2023)
CRANKSHAFT & PISTON

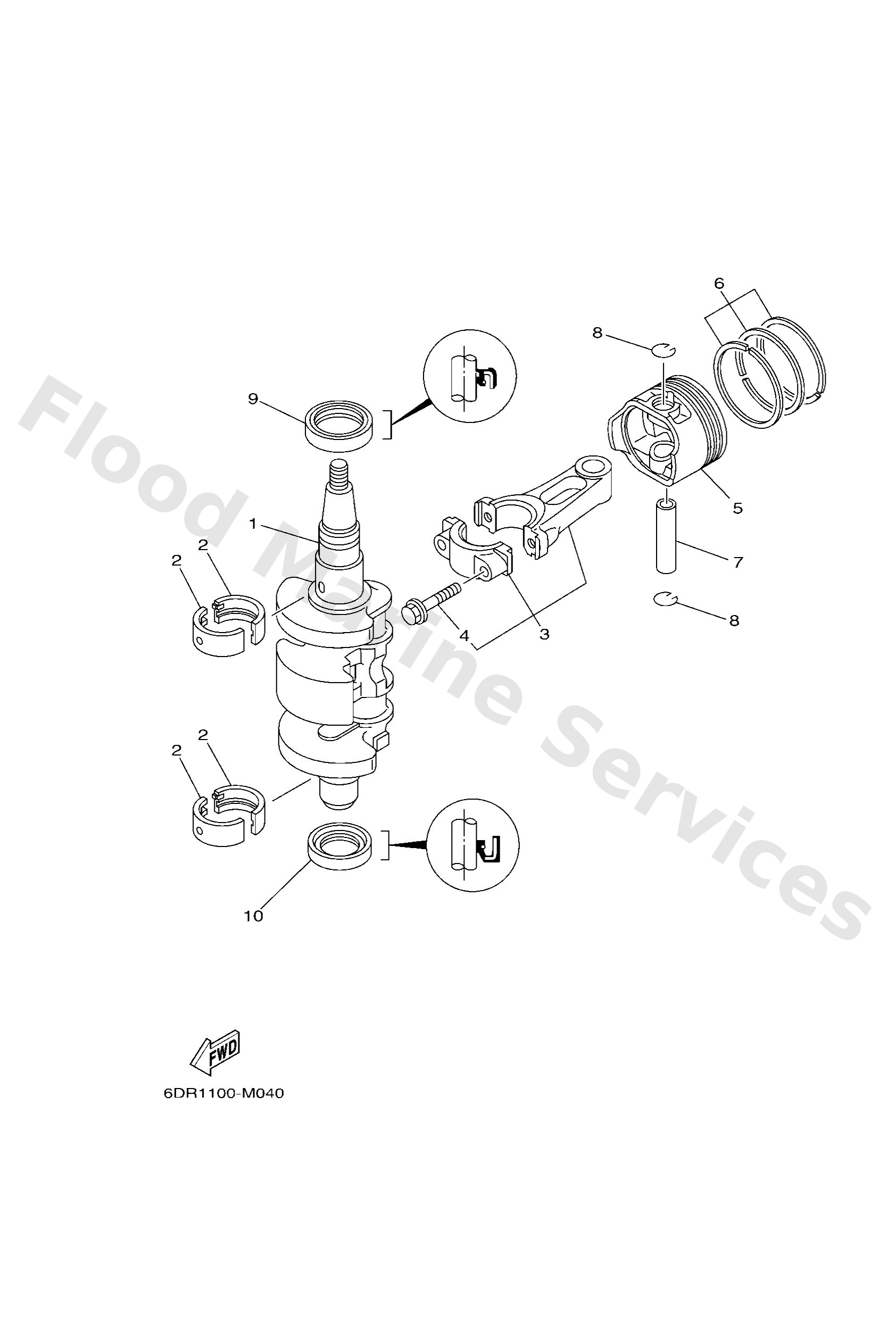

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6AU1141100
Crankshaft
Loading…
↗
2
68T1141601
UR BROWN
Plane bearing, crankshaft 1
Loading…
↗
2
68T1141611
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
2
68T1141621
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
3
6AU1165000
Connecting rod assembly
Loading…
↗
4
67D1165400
Bolt, connecting rod
Loading…
↗
5
6AU116310096
Piston (std)
Loading…
↗
5
6AU1163500
AP
Piston (0.25mm o/s)
Loading…
↗
5
6AU1163600
AP
Piston (0.50mm o/s)
Loading…
↗
6
68T1160301
Piston ring set (std)
Loading…
↗
6
68T1160401
AP
Piston ring set (0.25mm o/s)
Loading…
↗
6
68T1160501
AP
Piston ring set (0.50mm o/s)
Loading…
↗
7
68T1163300
Pin, piston
Loading…
↗
8
9345015023
Circlip 131116340000
Loading…
↗
9
9310230M22
Oil seal (6g8)
Loading…
↗
10
9310125M69
Oil seal
Loading…
↗
