L200FETO (2006)
CRANKSHAFT & PISTON

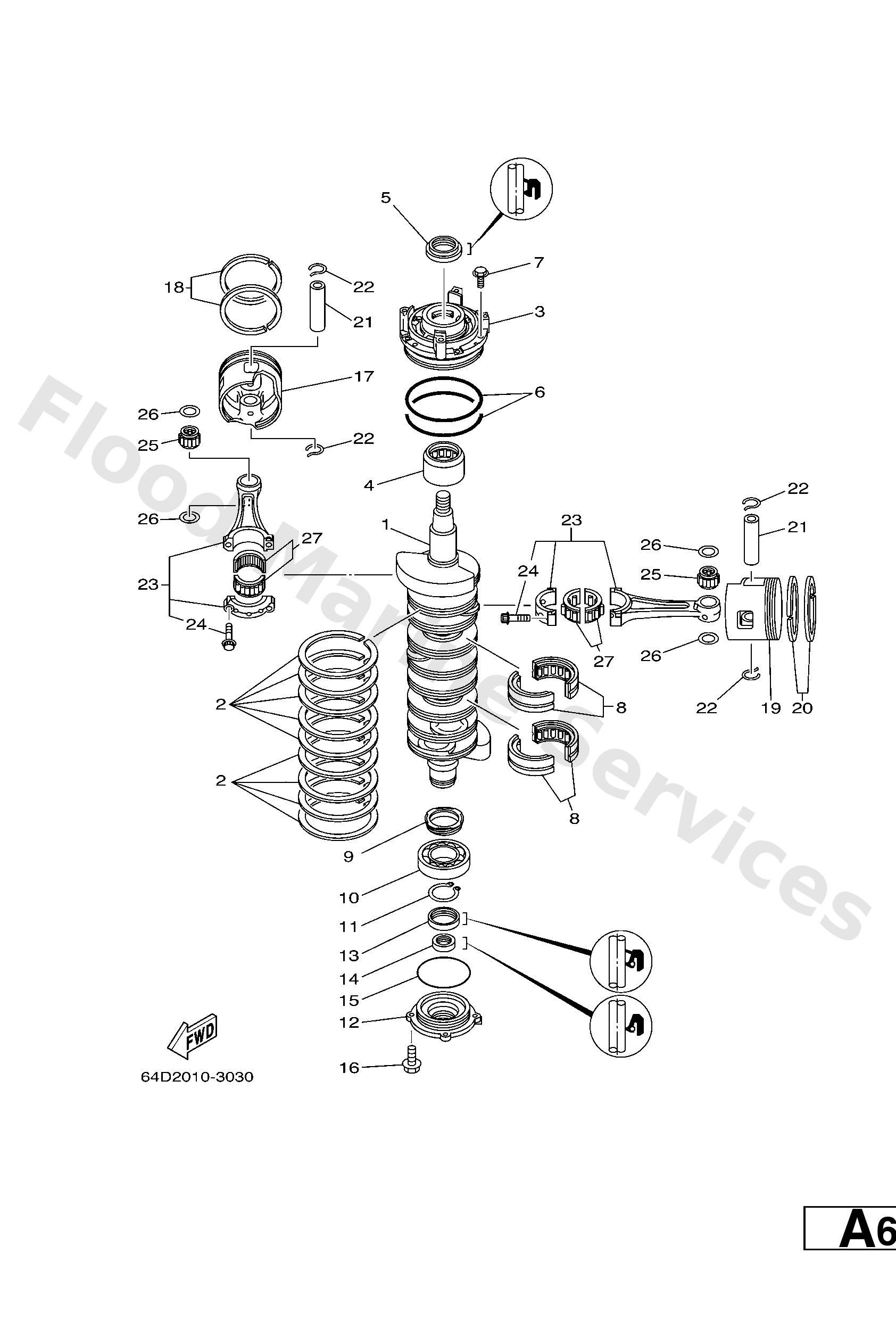

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6G51141102
Crankshaft
Loading…
↗
2
6E51144700
Seal, ring
Loading…
↗
3
6R315163001S
Housing, bearing 1
Loading…
↗
4
93311940U3
Brg,cyl-cal roller 36g (6e5)
Loading…
↗
5
9310240M14
Oil seal(61a)
Loading…
↗
6
9321104001
O-ring
Loading…
↗
7
9011906MA2
Bolt, with washer
Loading…
↗
8
93310954U1
Bearing, cylindrical(64c)
Loading…
↗
9
6R31153600
Gear, drive
Loading…
↗
10
93306208U0
Brg,r-b 6208 80mm 345g (6e5)
Loading…
↗
11
9341040M03
Circlip(n02)
Loading…
↗
12
6G5153590094
Housing, oil seal
Loading…
↗
13
9310235M13
Oil seal (6e5)
Loading…
↗
14
9310122M15
Oil seal (6e5)
Loading…
↗
15
9321074M35
O-ring (6e5)
Loading…
↗
17
64D1163602
AP
Piston (0.50mm o/s)
Loading…
↗
17
64D1163502
AP
Piston (0.25mm o/s)
Loading…
↗
17
64D116310290
Piston (std)
Loading…
↗
18
64D1160302
Piston ring set (std)
Loading…
↗
18
64D1160402
AP
Piston ring set (0.25mm o/s)
Loading…
↗
18
64D1160502
AP
Piston ring set (0.50mm o/s)
Loading…
↗
19
64D116420290
Piston 2 (std)
Loading…
↗
19
64D1164502
AP
Piston 2 (0.25mm o/s)
Loading…
↗
19
64D1164602
AP
Piston 2 (0.50mm o/s)
Loading…
↗
21
6R51163310
Pin, piston
Loading…
↗
22
6R51163410
Clip, piston pin
Loading…
↗
23
6R51165010
Connecting kit
Loading…
↗
24
9010908022
Bolt
Loading…
↗
25
9331032337
Bearing
Loading…
↗
26
9020123M01
Washer, plate(6g6)
Loading…
↗
27
93310836V2
Brg, cyl-cal roller (6e5)
Loading…
↗
