L250AETO (2006)
CRANKSHAFT & PISTON

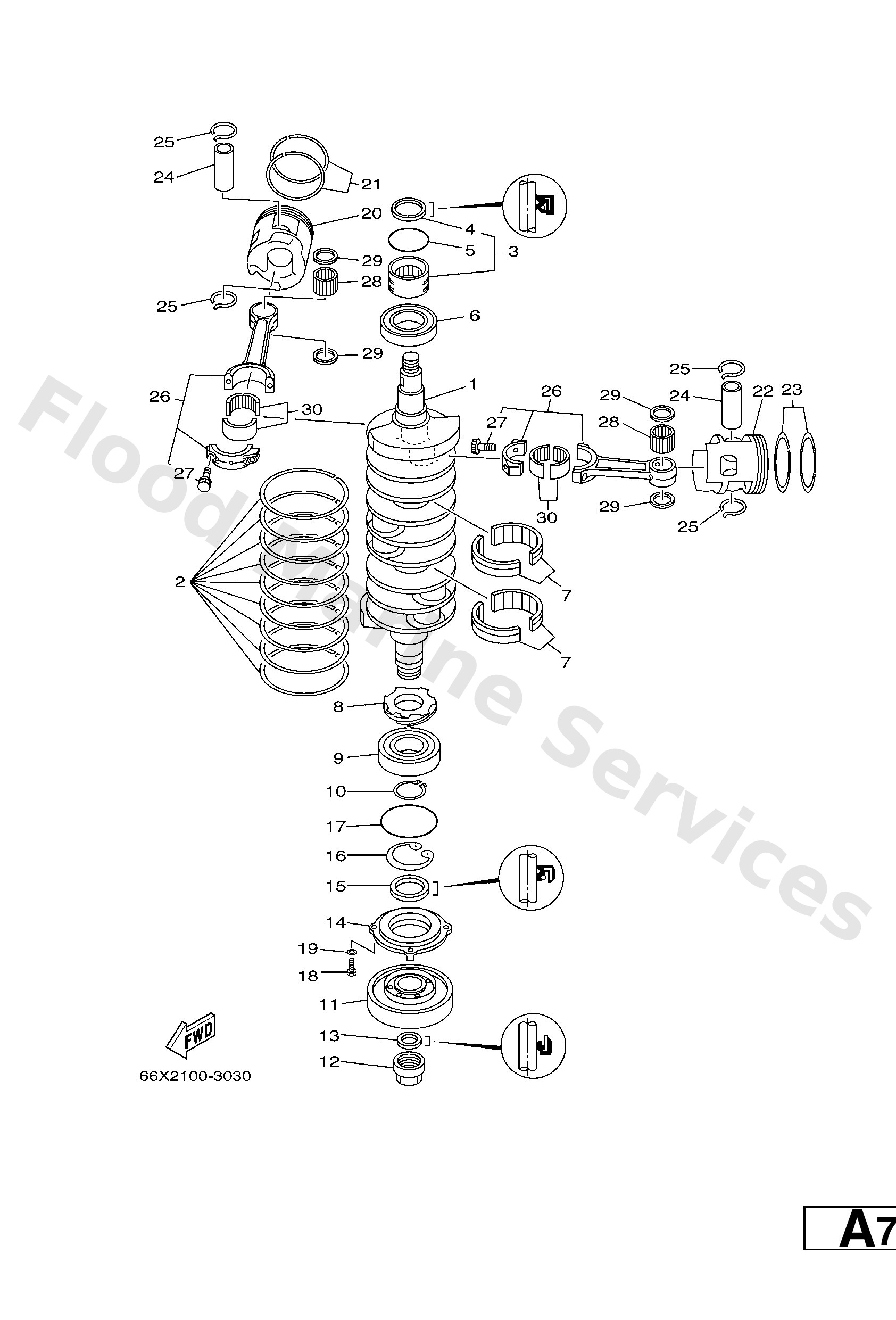

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6D01141100
Crankshaft
Loading…
↗
2
61A1144700
Seal, crank
Loading…
↗
3
93311940V0
Bearing, cylindrical(61a)
Loading…
↗
4
9310240M38
Oil seal(61a)
Loading…
↗
5
9321054M54
O-ring (6g1)
Loading…
↗
6
93306209U1
Bearing(61a)
Loading…
↗
7
93310959U0
Bearing, cylindrical(61a)
Loading…
↗
8
61A1153600
Gear, drive
Loading…
↗
9
93306308U0
Bearing(61a)
Loading…
↗
10
9341040M03
Circlip(n02)
Loading…
↗
11
61A1158601
Pulley, crankshaft balance
Loading…
↗
12
60V1155500
Nut, crankshaft 1
Loading…
↗
13
9310422M07
Oil seal(61a)
Loading…
↗
14
61A153590094
Housing, oil seal
Loading…
↗
15
9310240M36
Oil seal
Loading…
↗
16
9342061M07
Circlip(61a)
Loading…
↗
17
9321081MA6
O-ring(61a)
Loading…
↗
18
9709506020
Bolt(7u8)
Loading…
↗
19
9299506100
Washer(6a1)
Loading…
↗
20
69L116310085
Piston (std)
Loading…
↗
20
69L1163600
AP
Piston (0.50mm o/s)
Loading…
↗
20
69L1163500
AP
Piston (0.25mm o/s)
Loading…
↗
21
64D1160302
Piston ring set (std)
Loading…
↗
21
64D1160402
AP
Piston ring set (0.25mm o/s)
Loading…
↗
21
64D1160502
AP
Piston ring set (0.50mm o/s)
Loading…
↗
22
69L116420085
Piston 2 (std)
Loading…
↗
22
69L1164500
AP
Piston 2 (0.25mm o/s)
Loading…
↗
22
69L1164600
AP
Piston 2 (0.50mm o/s)
Loading…
↗
24
61A1163302
Pin, piston
Loading…
↗
25
61A1163400
Clip, piston pin
Loading…
↗
26
61A1165000
-
Loading…
↗
27
9010909001
Bolt
Loading…
↗
28
93310326V4
Bearing, cylindrical(61a)
Loading…
↗
29
9020126M03
Washer, plate(61a)
Loading…
↗
30
9331084106
Bearing
Loading…
↗
