LF150B (2022)
CRANKSHAFT & PISTON

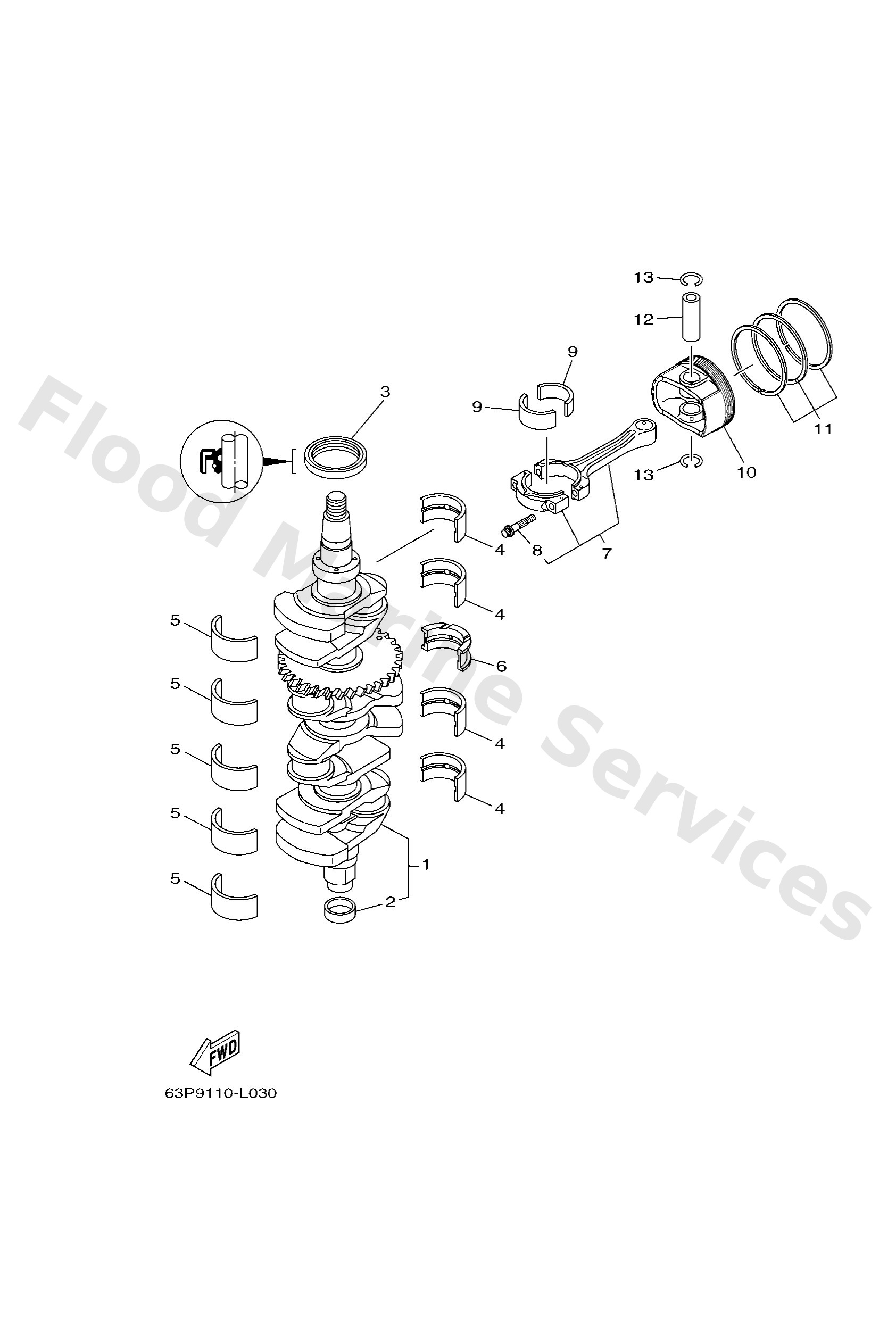

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
63P1141004
Crankshaft
Loading…
↗
2
6CB1147800
Collar
Loading…
↗
3
9310260004
Oil seal
Loading…
↗
4
63P1141651
UR YELLOW
Plane bearing, crankshaft 1
Loading…
↗
4
63P1141641
UR RED
Plane bearing, crankshaft 1
Loading…
↗
4
63P1141631
UR GREEN
Plane bearing, crankshaft 1
Loading…
↗
5
63P1141781
UR BLUE
Plane bearing, crankshaft 2
Loading…
↗
5
63P1141771
UR YELLOW
Plane bearing, crankshaft 2
Loading…
↗
5
63P1141761
UR RED
Plane bearing, crankshaft 2
Loading…
↗
5
63P1141751
UR GREEN
Plane bearing, crankshaft 2
Loading…
↗
5
63P1141741
UR BROWN
Plane bearing, crankshaft 2
Loading…
↗
6
63P1142641
UR RED
Bearing, thrust 1
Loading…
↗
6
63P1142651
UR YELLOW
Bearing, thrust 1
Loading…
↗
6
63P1142631
UR GREEN
Bearing, thrust 1
Loading…
↗
7
63PW116510
Connecting rod assembly
Loading…
↗
8
63P1165410
Bolt, connecting rod
Loading…
↗
9
63P1165650
UR RED
Plane bearing, connecting rod
Loading…
↗
9
63P1165640
UR BLUE
Plane bearing, connecting rod
Loading…
↗
9
63P1165630
UR GREEN
Plane bearing, connecting rod
Loading…
↗
10
63P116311093
Piston (std)
Loading…
↗
10
63P1163510
AP
Piston (0.25mm o/s)
Loading…
↗
11
63P1160301
Piston ring set (std)
Loading…
↗
11
63P1160400
AP
Piston ring set (0.25mm o/s)
Loading…
↗
12
63P1163310
Pin, piston
Loading…
↗
13
63P1163400
Clip, piston pin
Loading…
↗
