Yamaha Outboard Parts - CRANKSHAFT & PISTON - VF150LB (2025) | Flood Marine

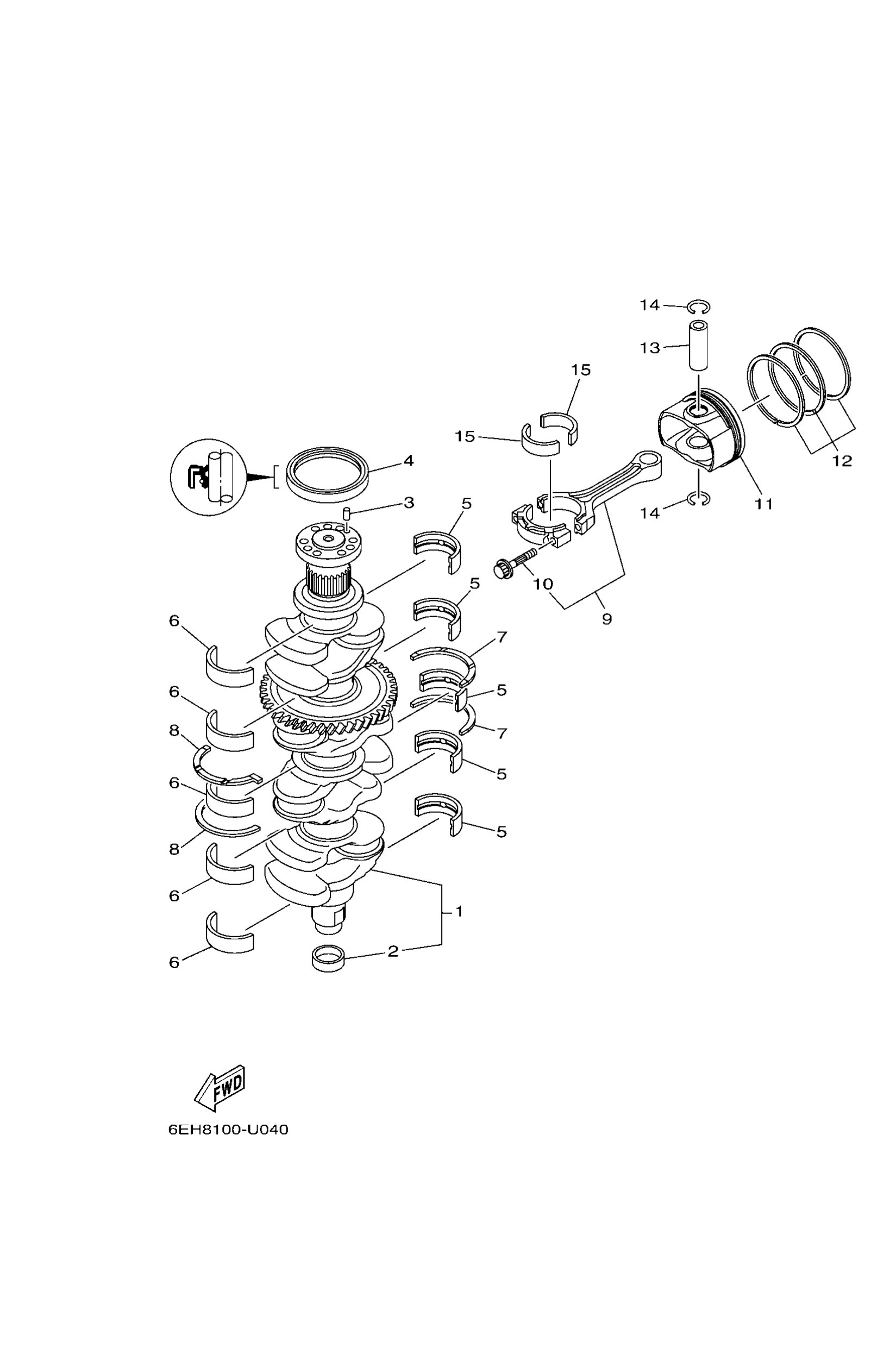

Diagram: CRANKSHAFT & PISTON

Diagram

Parts List

Reference
Description
Price


1
6DA1141000
Crankshaft
Loading…

↗
2
6CB1147800
Collar
Loading…

↗
3
9360612019
Pin, dowel (614)
Loading…

↗
4
9310285008
Oil seal
Loading…

↗
5
6DA1141600 UR YELLOW
Plane bearing, crankshaft 1
Loading…

↗
5
6DA1141610 UR GREEN
Plane bearing, crankshaft 1
Loading…

↗
5
6DA1141620 UR BLUE
Plane bearing, crankshaft 1
Loading…

↗
6
6DA1141700 UR YELLOW
Plane bearing, crankshaft 2
Loading…

↗
6
6DA1141710 UR GREEN
Plane bearing, crankshaft 2
Loading…

↗
6
6DA1141720 UR BLUE
Plane bearing, crankshaft 2
Loading…

↗
7
6DA1142600
Bearing, thrust 1
Loading…

↗
8
6DA1142700
Bearing, thrust 2
Loading…

↗
9
6CBW116510
Connecting rod assembly
Loading…

↗
10
63P1165410
Bolt, connecting rod
Loading…

↗
11
6DA116312194
Piston (std)
Loading…

↗
12
6CB1160300
Piston ring set (std)
Loading…

↗
13
6CB1163300
Pin, piston
Loading…

↗
14
K0FA323300
Ring, hole snap
Loading…

↗
15
6JD1165600 UR BLACK
Plane bearing, connecting rod
Loading…

↗
15
6JD1165610 UR PINK
Plane bearing, connecting rod
Loading…

↗
15
6JD1165620 UR RED
Plane bearing, connecting rod
Loading…

↗
