Z250DETO (2005)
CRANKSHAFT & PISTON

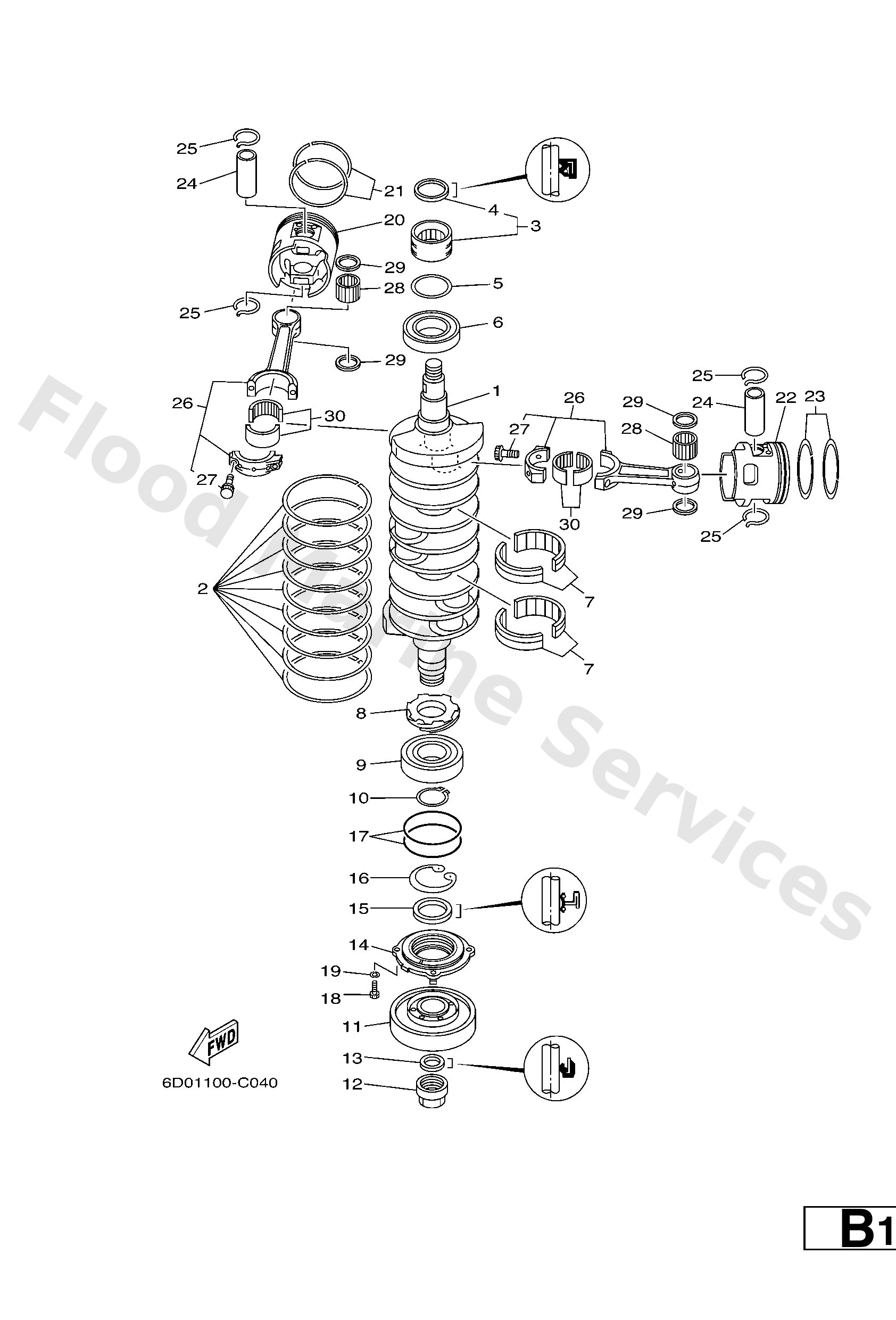

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6D01141100
Crankshaft
Loading…
↗
2
61A1144700
Seal, crank
Loading…
↗
3
93311940V0
Bearing, cylindrical(61a)
Loading…
↗
4
9310240M38
Oil seal(61a)
Loading…
↗
5
60V1147900
O-ring
Loading…
↗
6
93306209U1
Bearing(61a)
Loading…
↗
7
93310959U0
Bearing, cylindrical(61a)
Loading…
↗
8
61A1153600
Gear, drive
Loading…
↗
9
93306308U0
Bearing(61a)
Loading…
↗
10
9341040M03
Circlip(n02)
Loading…
↗
11
61A1158601
Pulley, crankshaft balance
Loading…
↗
12
60V1155500
Nut, crankshaft 1
Loading…
↗
13
9310422M07
Oil seal(61a)
Loading…
↗
14
6D0153590094
Housing, oil seal
Loading…
↗
15
9310340011
Oil seal
Loading…
↗
16
9342061M07
Circlip(61a)
Loading…
↗
17
9321085M32
O-ring (173)
Loading…
↗
18
9709506020
Bolt(7u8)
Loading…
↗
19
9299506100
Washer(6a1)
Loading…
↗
20
6D0116310285
Piston (std)
Loading…
↗
20
6D01163602
AP
Piston (0.50mm o/s)
Loading…
↗
20
6D01163502
AP
Piston (0.25mm o/s)
Loading…
↗
21
6D01160301
Piston ring set (std)
Loading…
↗
21
6D01160401
AP
Piston ring set (0.25mm o/s)
Loading…
↗
21
6D01160501
AP
Piston ring set (0.50mm o/s)
Loading…
↗
22
6D0116420285
Piston 2 (std)
Loading…
↗
22
6D01164502
AP
Piston 2 (0.25mm o/s)
Loading…
↗
22
6D01164602
AP
Piston 2 (0.50mm o/s)
Loading…
↗
24
61A1163302
Pin, piston
Loading…
↗
25
60X1163400
Clip, piston pin
Loading…
↗
26
69L1165000
Connecting Rod assembly
Loading…
↗
27
9010909001
Bolt
Loading…
↗
28
9331032657
Bearing
Loading…
↗
29
9020126M03
Washer, plate(61a)
Loading…
↗
30
9331084106
Bearing
Loading…
↗
