Yamaha Outboard Parts - CRANKSHAFT. - 115BETO (2000) | Flood Marine

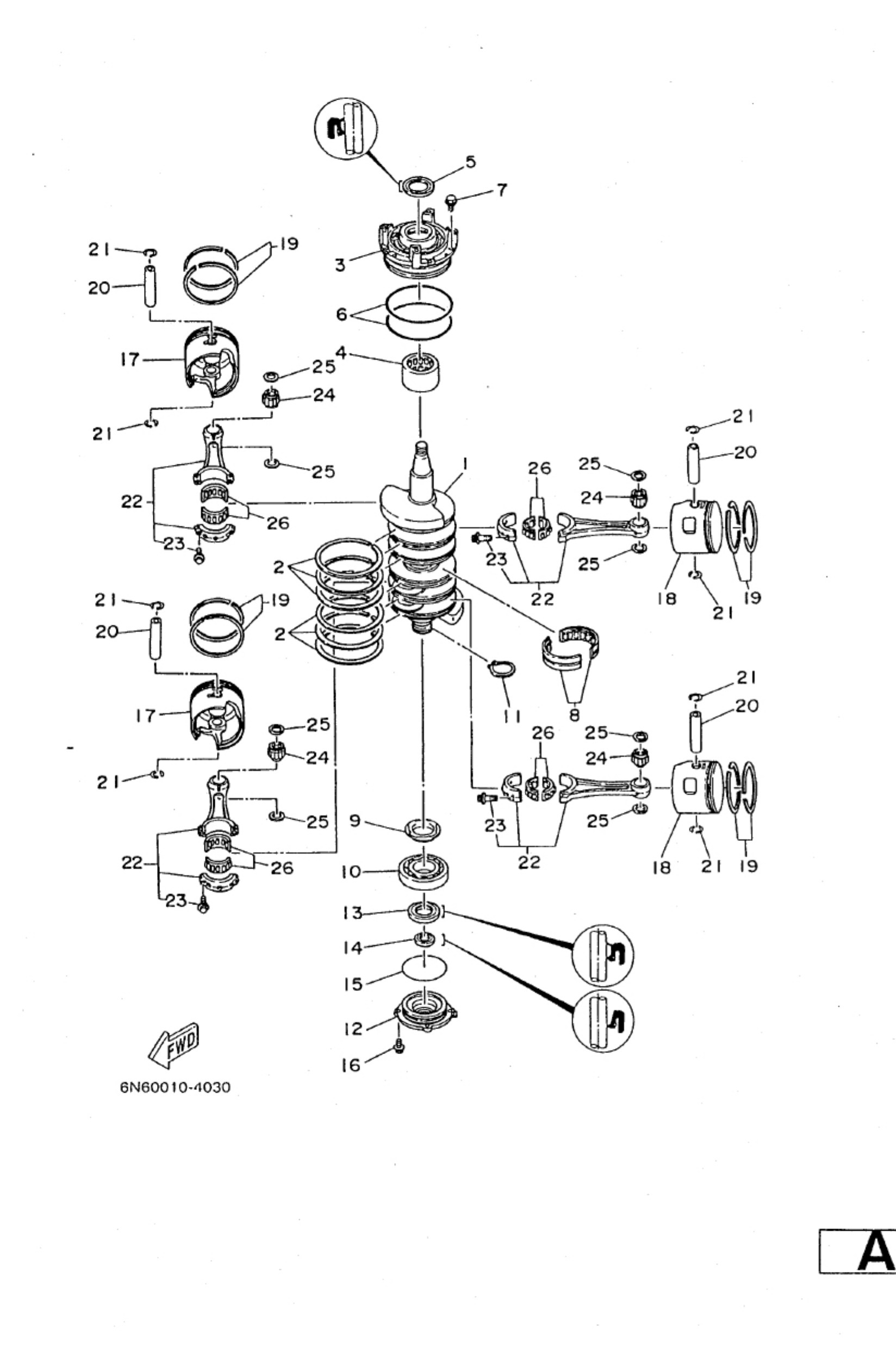

Diagram: CRANKSHAFT.

Diagram

Parts List

Reference
Description
Price


1
6N71141100
Crankshaft
Loading…

↗
2
BES1144700
3-2
Loading…

↗
3
6E515163001S
Housing, bearing 1
Loading…

↗
4
93311940U3
Brg,cyl-cal roller 36g (6e5)
Loading…

↗
5
9310240M14
Oil seal(61a)
Loading…

↗
6
9321104M36
O-ring (705)
Loading…

↗
7
9011906MA2
Bolt, with washer
Loading…

↗
8
93310954U1
Bearing, cylindrical(64c)
Loading…

↗
9
6R31153600
Gear, drive
Loading…

↗
10
93306208U0
Brg,r-b 6208 80mm 345g (6e5)
Loading…

↗
11
9341040M03 [
Circlip(n02)
Loading…

↗
12
B6G5153590094
Housing, Oil Seal
Loading…

↗
13
9310235M13
Oil seal (6e5)
Loading…

↗
14
9310122M15
Oil seal (6e5)
Loading…

↗
15
9321074M35
O-ring (6e5)
Loading…

↗
17
BR5116311193
Piston
Loading…

↗
17
B6R51163511
Piston
Loading…

↗
17
BR51163611 AP
Piston (0.50Mm O/S)
Loading…

↗
18
6R5116421193
Piston 2 (std)
Loading…

↗
18
6R51164611 Ap
Piston 2 (0.50mm o/s)
Loading…

↗
19
64D1160301
Piston ring set (std)
Loading…

↗
19
64D1160501 AP
Piston ring set (0.50mm o/s)
Loading…

↗
21
6R51163410
Clip, piston pin
Loading…

↗
22
6R51165010
Connecting kit
Loading…

↗
23
9010908M71
Bolt
Loading…

↗
24
93310323V6 a
Bearing
Loading…

↗
25
9020123M01
Washer, plate(6g6)
Loading…

↗
26
933108362 a
Bearing
Loading…

↗
