225GETO (1999)
CRANKSHAFT.

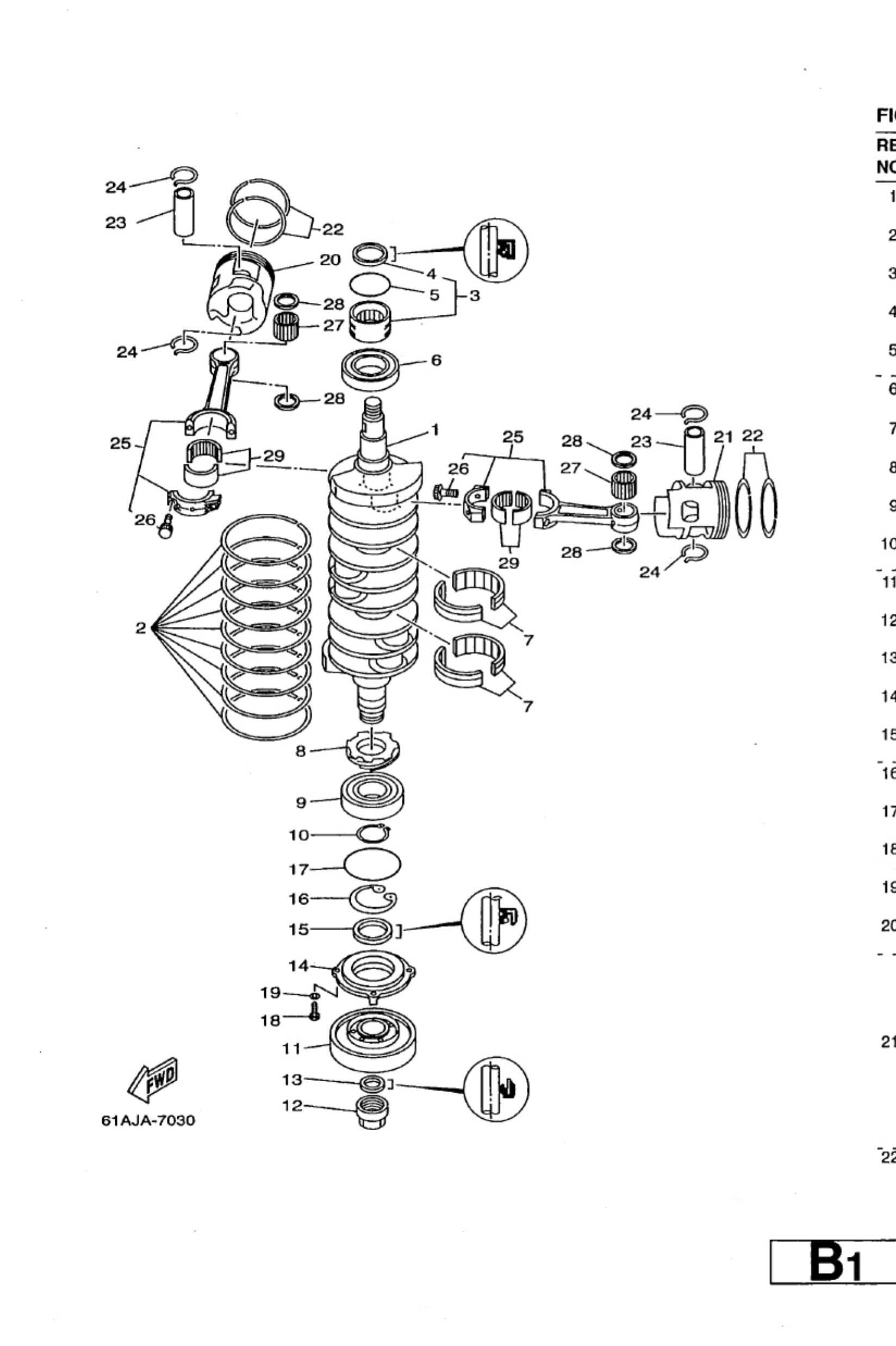

Diagram: CRANKSHAFT.
Parts List
Reference
Description
Price
1
61A1141100
Crankshaft
Loading…
↗
2
61A1144700
Seal, crank
Loading…
↗
3
933119400
Bearing
Loading…
↗
4
9310240M38
Oil seal(61a)
Loading…
↗
5
9321054M54
O-ring (6g1)
Loading…
↗
6
9330620901
Brg,r-b 6209rsh2-c2 85mm 412g
Loading…
↗
7
9331095000
Bearing
Loading…
↗
8
61A1153600
Gear, drive
Loading…
↗
9
93306308U0
Bearing(61a)
Loading…
↗
10
9341040M03
Circlip(n02)
Loading…
↗
11
B1A1158601
i
Pulley, Crankshaft Balance
Loading…
↗
12
61A1155501
Nut, crankshaft 1
Loading…
↗
13
9310422M07
Oil seal(61a)
Loading…
↗
14
61A153590094
Housing, oil seal
Loading…
↗
15
9310240M36
Oil seal
Loading…
↗
16
93420-61M07
Circlip(61a)
Loading…
↗
17
9321081MA6
O-ring(61a)
Loading…
↗
18
9709506020
Bolt(7u8)
Loading…
↗
19
9299506100
Washer(6a1)
Loading…
↗
20
66X116310085
Piston (std)
Loading…
↗
20
66X1163600
AP
Piston (0.50mm o/s)
Loading…
↗
21
66X116420085
Piston 2 (std)
Loading…
↗
23
64D160301
Piston Ring Setistd)”
Loading…
↗
23
64D1160401
AP
Piston ring set (0.25mm o/s)
Loading…
↗
