115BETO (1998)
CRANKSHAFT. PISTON

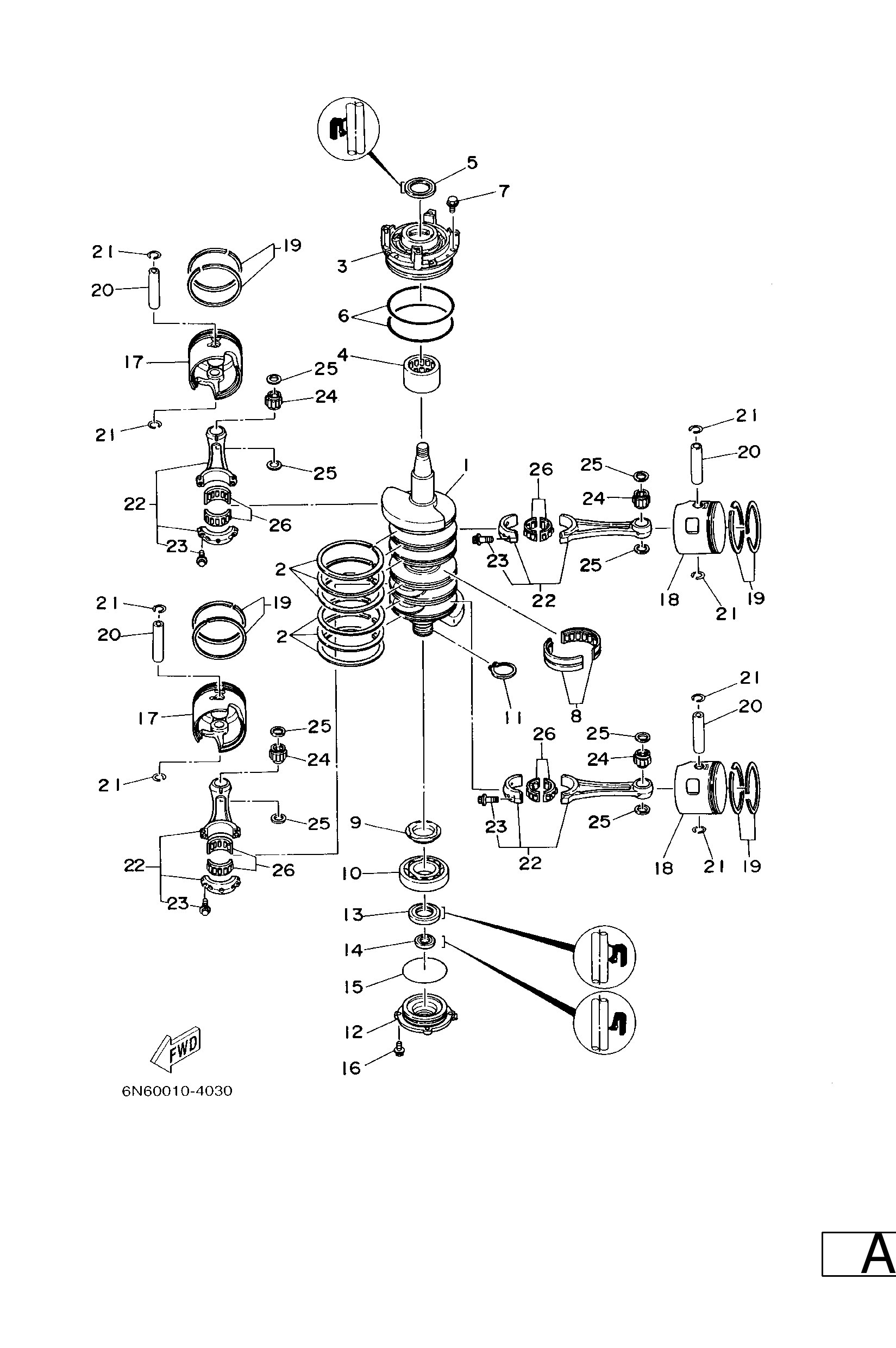

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
6N71141100
Crankshaft
Loading…
↗
2
6E51144700
Seal, ring
Loading…
↗
4
93311940U3
Brg,cyl-cal roller 36g (6e5)
Loading…
↗
5
9310240M38
Oil seal(61a)
Loading…
↗
6
9321104384
O-ring (705)
Loading…
↗
7
9759506520
Bolt(7u8)
Loading…
↗
8
93310954U1
Bearing, cylindrical(64c)
Loading…
↗
9
6R31153600
Gear, drive
Loading…
↗
10
93306208U0
Brg,r-b 6208 80mm 345g (6e5)
Loading…
↗
11
9341040M03
Circlip(n02)
Loading…
↗
13
9310235M13
Oil seal (6e5)
Loading…
↗
14
9310122M15
Oil seal (6e5)
Loading…
↗
15
9321074M35
O-ring (6e5)
Loading…
↗
16
6R51163511
AP
Piston (0.25mm o/s)
Loading…
↗
16
6R51164611
AP
Piston 2 (0.50mm o/s)
Loading…
↗
16
6R51164511
AP
Piston 2 (0.25mm o/s)
Loading…
↗
16
6R51163611
AP
Piston (0.50mm o/s)
Loading…
↗
19
64D1160301
Piston ring set (std)
Loading…
↗
19
64D1160401
AP
Piston ring set (0.25mm o/s)
Loading…
↗
19
64D1160501
AP
Piston ring set (0.50mm o/s)
Loading…
↗
20
6R51163310
Pin, piston
Loading…
↗
21
6R51163410
Clip, piston pin
Loading…
↗
22
6R51165010
Connecting kit
Loading…
↗
23
9010908M71
Bolt
Loading…
↗
24
93310323V6
Bearing
Loading…
↗
25
9020123M01
Washer, plate(6g6)
Loading…
↗
26
93310836V2
Brg, cyl-cal roller (6e5)
Loading…
↗
