15FWC (2002)
CRANKSHAFT. PISTON

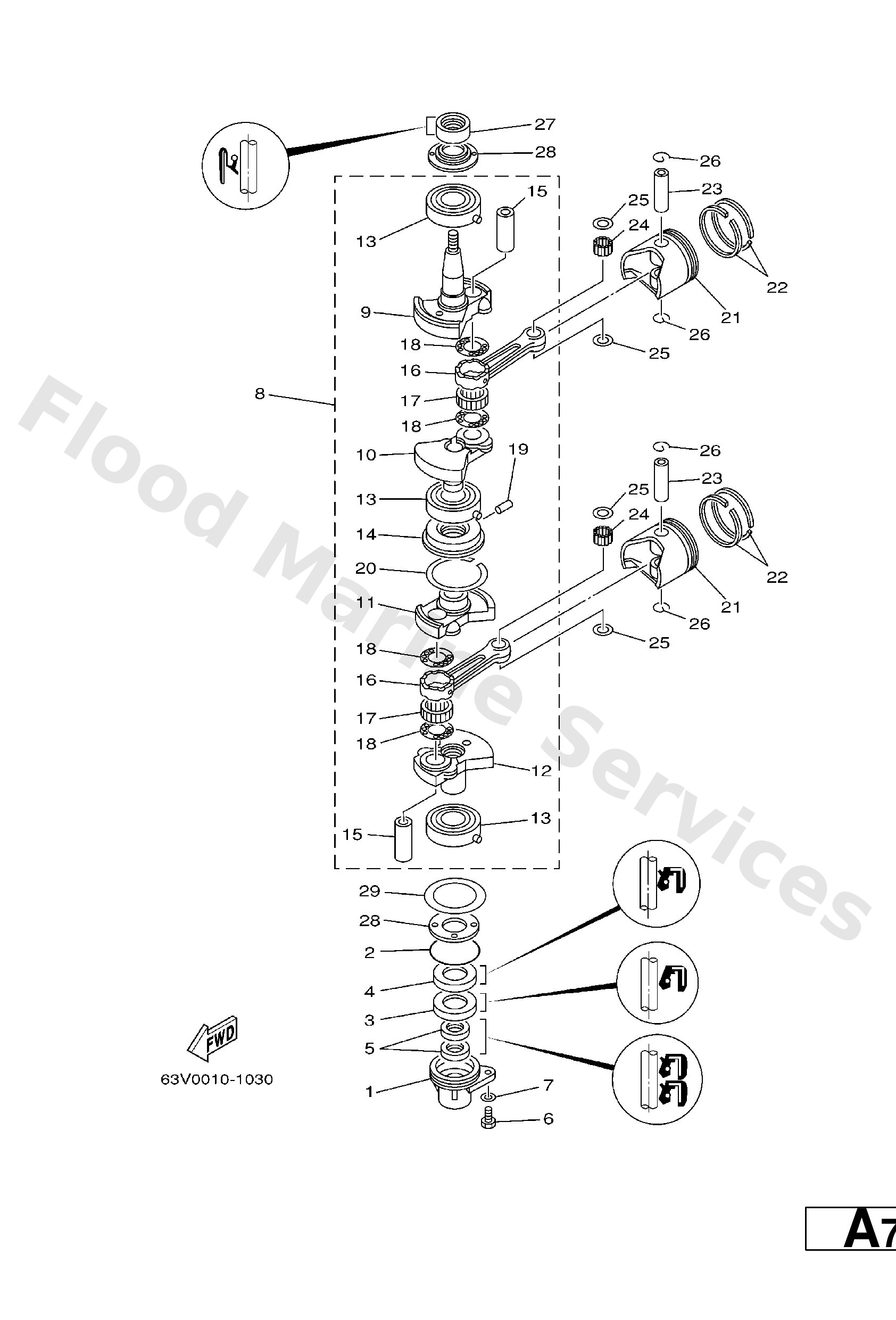

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
63V153960194
Housing, oil seal
Loading…
↗
2
93210--46M16
O-ring (688)
Loading…
↗
3
93101--25018
Oil seal
Loading…
↗
4
93102--25M48
Oil seal(63v)
Loading…
↗
5
93101--13018
Oil seal
Loading…
↗
6
97095--06016
Bolt, hexagon deep recess
Loading…
↗
7
92995--06600
Washer, plain (646)
Loading…
↗
8
63V--11400--01
Crankshaft assembly
Loading…
↗
9
63V--11412--00
Crank 1
Loading…
↗
10
63V--11422--00
Crank 2
Loading…
↗
11
63V--11432--00
Crank 3
Loading…
↗
12
63V--11442--00
Crank 4
Loading…
↗
13
93306--205U7
Bearing(63v)
Loading…
↗
14
63V--11515--02
Seal, labyrinth 1
Loading…
↗
15
682--11681--00
Pin crank
Loading…
↗
16
650--11651--04
Rod, connecting
Loading…
↗
17
93310--620V5
Bearing, big end (682)
Loading…
↗
18
90209--20M23
Washer, crank pin (1h9)
Loading…
↗
19
91609--20008
Pin, spring
Loading…
↗
20
93440--52009
Circlip (168)
Loading…
↗
21
6E7--11631--00--97
Piston (std)
Loading…
↗
21
6E7--11635--00
AP
Piston (1st o.s)
Loading…
↗
21
6E7--11636--00
AP
Piston (2nd o.s)
Loading…
↗
22
682--11610--01
Piston ring set (std)
Loading…
↗
22
682--11610--11
AP
Piston ring set (1st o/s)
Loading…
↗
22
682--11610--21
AP
Piston ring set (2nd o/s)
Loading…
↗
23
634--11633--00
Pin, piston
Loading…
↗
24
93602--14104
Pin, dowel
Loading…
↗
25
90201--14377
Washer, plate
Loading…
↗
26
93450--15023
Circlip 131116340000
Loading…
↗
27
93110--23M00
Oil seal (682)
Loading…
↗
28
63V--11445--00
Spacer
Loading…
↗
29
90201--46M29
Washer, plate(63v)
Loading…
↗
