250BETO (2002)
CRANKSHAFT. PISTON

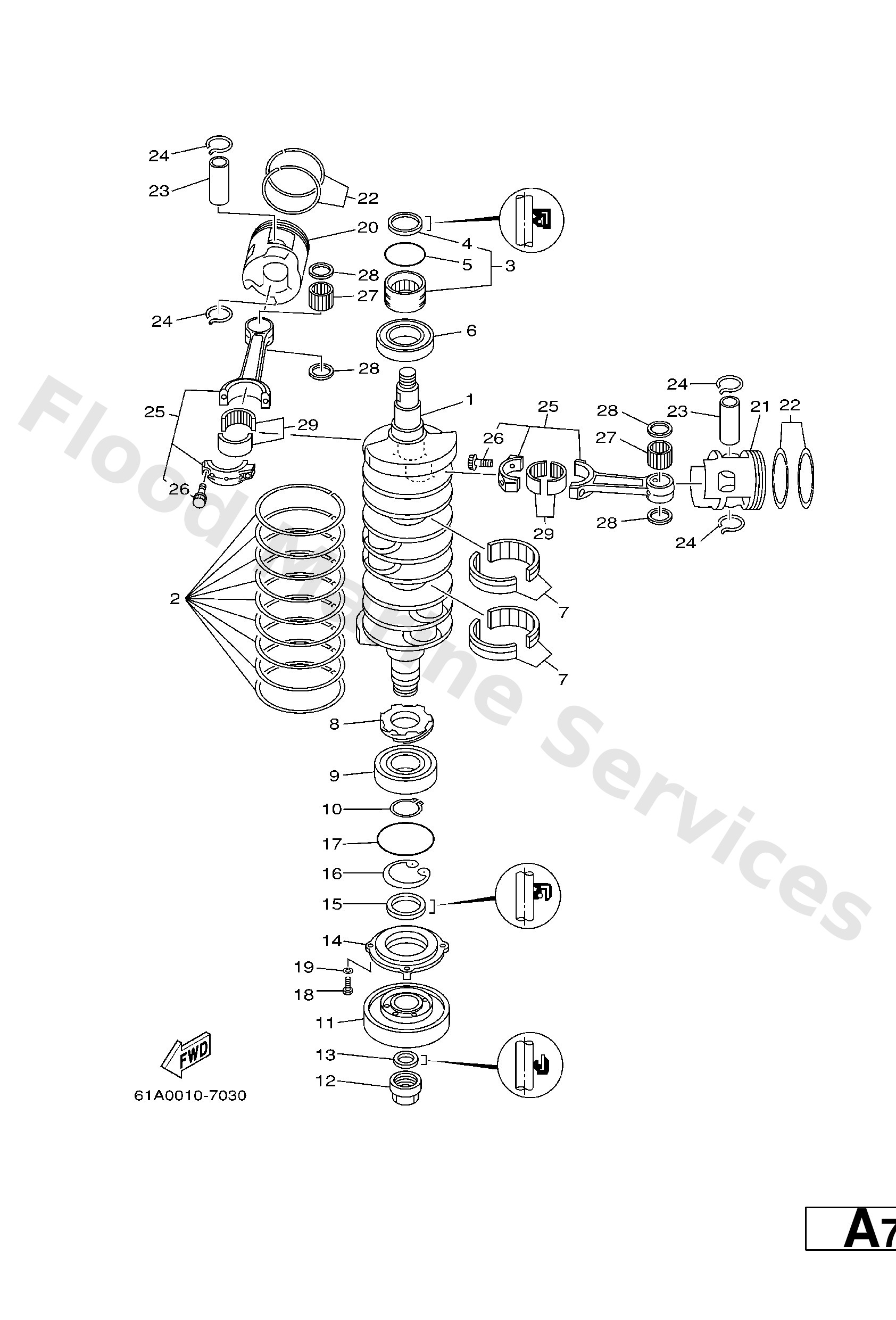

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
61A--11411--00
Crankshaft
Loading…
↗
2
61A--11447--00
Seal, crank
Loading…
↗
3
93311940V0
Bearing, cylindrical(61a)
Loading…
↗
4
93102--40M38
Oil seal(61a)
Loading…
↗
5
93210--54M54
O-ring (6g1)
Loading…
↗
6
93306209U1
Bearing(61a)
Loading…
↗
7
93310959U0
Bearing, cylindrical(61a)
Loading…
↗
8
61A--11536--00
Gear, drive
Loading…
↗
9
93306--308U0
Bearing(61a)
Loading…
↗
10
93410--40M03
Circlip(n02)
Loading…
↗
11
61A--11586--01
Pulley, crankshaft balance
Loading…
↗
12
61A--11555--01
Nut, crankshaft 1
Loading…
↗
13
93104--22M07
Oil seal(61a)
Loading…
↗
14
61A--15359--00--94
Housing, oil seal
Loading…
↗
15
93102--40M36
Oil seal
Loading…
↗
16
93420--61M07
Circlip(61a)
Loading…
↗
17
93210--81MA6
O-ring(61a)
Loading…
↗
18
97095--06020
Bolt(7u8)
Loading…
↗
19
92995--06100
Washer(6a1)
Loading…
↗
20
69L116310085
Piston (std)
Loading…
↗
20
69L1163500
AP
Piston (0.25mm o/s)
Loading…
↗
20
69L1163600
AP
Piston (0.50mm o/s)
Loading…
↗
21
69L116420085
Piston 2 (std)
Loading…
↗
21
69L1164500
AP
Piston 2 (0.25mm o/s)
Loading…
↗
21
69L1164600
AP
Piston 2 (0.50mm o/s)
Loading…
↗
22
64D--11604--01
AP
Piston ring set (0.25mm o/s)
Loading…
↗
22
64D--11603--01
Piston ring set (std)
Loading…
↗
22
64D--11605--01
AP
Piston ring set (0.50mm o/s)
Loading…
↗
23
61A--11633--02
Pin, piston
Loading…
↗
24
61A--11634--00
Clip, piston pin
Loading…
↗
25
61A1165000
-
Loading…
↗
26
9010909001
Bolt
Loading…
↗
27
93310--326V4
Bearing, cylindrical(61a)
Loading…
↗
28
90201--26M03
Washer, plate(61a)
Loading…
↗
29
93310840V8
Bearing
Loading…
↗
