25VMH (2000)
CRANKSHAFT. PISTON

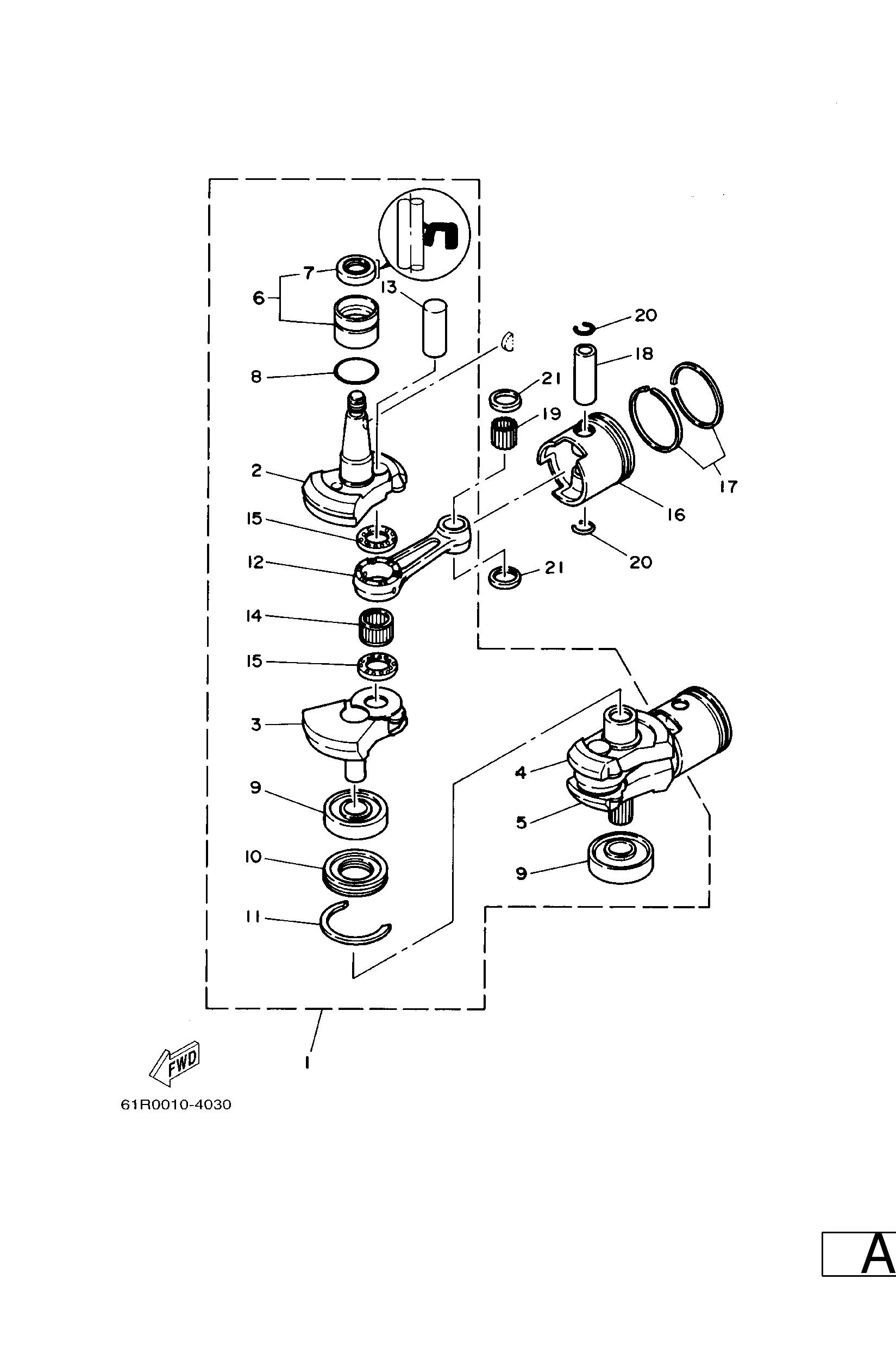

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
61N1140001
-
Loading…
↗
2
61N1141201
Crank 1
Loading…
↗
3
61N1142200
Crank 2
Loading…
↗
4
61N1143200
Crank 3
Loading…
↗
5
61N1144200
Crank 4
Loading…
↗
6
93311632V4
Bearing, cylindrical(61n)
Loading…
↗
7
9310232M07
Oil seal (697)
Loading…
↗
8
9321042159
O-ring (647)
Loading…
↗
9
93306305U3
Bearing(6j8)
Loading…
↗
10
61N1151500
Seal, labyrinth 1
Loading…
↗
11
9344062057
Cir clip (656)
Loading…
↗
12
6891165100
Rod, connecting
Loading…
↗
13
6891168101
Pin, crank
Loading…
↗
14
93310624U5
Brg,cyl-cal roller 37g (689)
Loading…
↗
15
9020924M03
Washer, plate (689)
Loading…
↗
16
61N116310095
Piston (std)
Loading…
↗
16
61N1163500
AP
Piston (0.25mm o/s)
Loading…
↗
16
61N1163600
AP
Piston (0.50mm o/s)
Loading…
↗
17
61N1160300
Piston ring set (std)
Loading…
↗
17
61N1160400
AP
Piston ring set (0.25mm o/s)
Loading…
↗
17
61N1160500
AP
Piston ring set (0.50mm o/s)
Loading…
↗
18
6891163300
Pin, piston
Loading…
↗
19
9360220M02
Pin, dowel b (664)
Loading…
↗
20
6881163400
Clip, piston pin
Loading…
↗
21
9020120M27
Washer, plate (689)
Loading…
↗
