75AET (2002)
CRANKSHAFT. PISTON

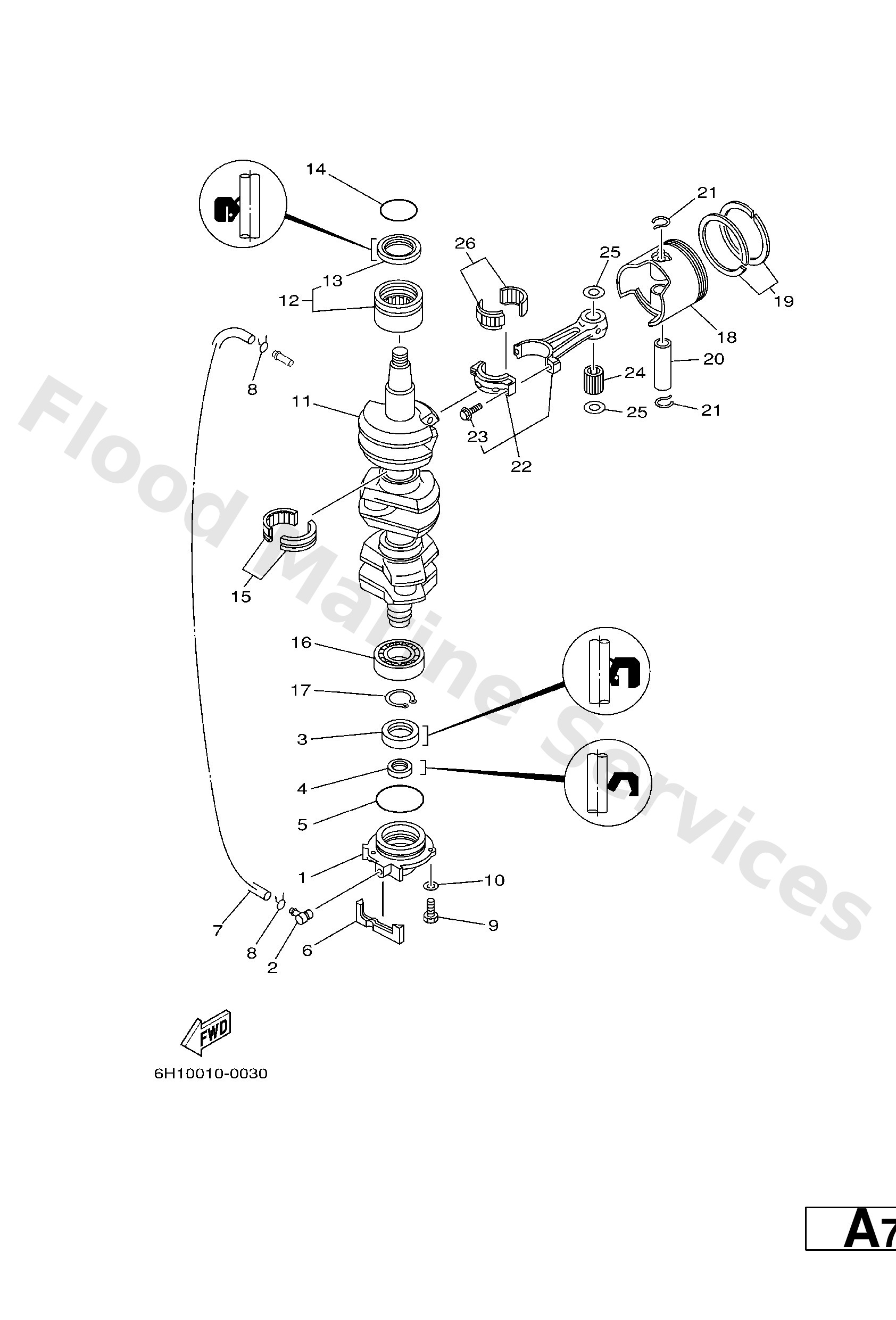

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
6H1--15359--01--94
Housing, oil seal
Loading…
↗
2
688--11370--00
Check valve assembly
Loading…
↗
3
93102--30M05
Oil seal (688)
Loading…
↗
4
93104--20M02
Oil seal (688)
Loading…
↗
5
93210--62269
Ring, o(663)
Loading…
↗
6
688--15379--00
Seal, crank case
Loading…
↗
7
90445--07M86
Hose (l770)
Loading…
↗
8
90467--06016
Clip (655)
Loading…
↗
9
97095--06020
Bolt(7u8)
Loading…
↗
10
92995--06600
Washer, plain (646)
Loading…
↗
11
688--11411--01
Crank, shaft
Loading…
↗
12
93310--636U4
Bearing (688)
Loading…
↗
13
93102--36M02
Oil seal(52w)
Loading…
↗
14
93210--46M16
O-ring (688)
Loading…
↗
15
93310--835U8
Brg,cyl-cal roller (688)
Loading…
↗
16
93306--206U5
Brg,r-b 6206 66mm (688)
Loading…
↗
17
93410--32M00
Circlip
Loading…
↗
18
6H1--11631--03--95
Piston (std)
Loading…
↗
18
6H1--11635--03
AP
Piston (0.25mm o/s)
Loading…
↗
18
6H1--11636--03
AP
Piston (0.50mm o/s)
Loading…
↗
19
688--11603--A0
Piston ring set (std)
Loading…
↗
19
688--11604--A0
AP
Piston ring set (0.25mm o/s)
Loading…
↗
19
688--11605--A0
AP
Piston ring set (0.50mm o/s)
Loading…
↗
20
663--11633--00
Pin, piston
Loading…
↗
21
688--11634--10
Clip, piston pin
Loading…
↗
22
688--11650--03
Connecting rod assembly
Loading…
↗
23
90109--08022
Bolt
Loading…
↗
24
93603--21111
Pin, dowel(663)
Loading…
↗
25
90201--20417
Washer, plate(663)
Loading…
↗
26
93310--730V8
Bearing (688)
Loading…
↗
