8CMH (2003)
CRANKSHAFT. PISTON

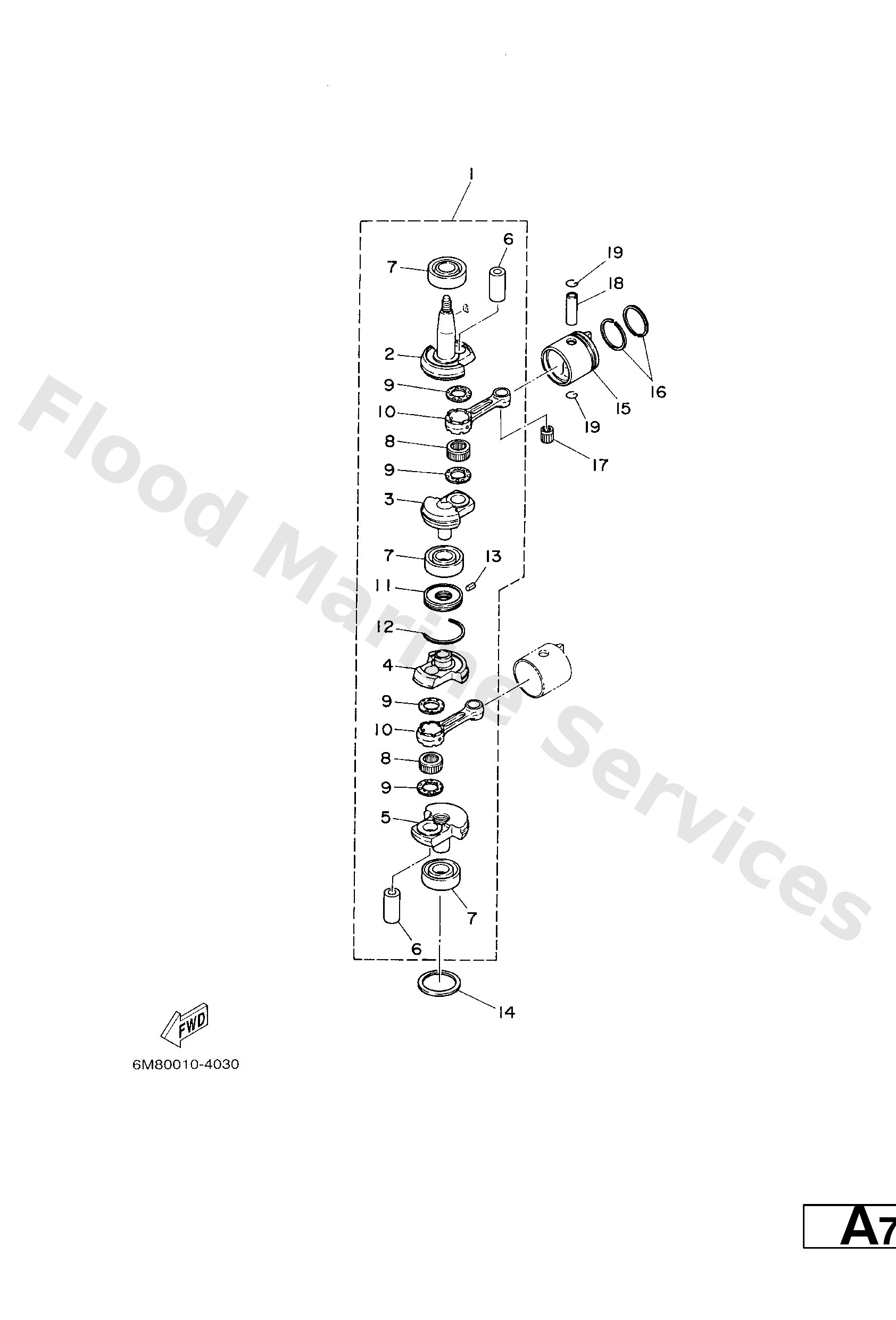

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
6N0−E1400−00
Crankshaft assembly
Loading…
↗
2
6N0−E1412−00
Crank 1
Loading…
↗
3
6N0−E1422−00
Crank 2
Loading…
↗
4
6N0−E1432−00
Crank 3
Loading…
↗
5
6N0−E1442−00
Crank 4
Loading…
↗
6
6G1−11681−00
Pin, crank
Loading…
↗
7
93306−204U0
Bearing(6e0)
Loading…
↗
8
93310−418V1
Bearing (6e0)
Loading…
↗
9
90209−18112
Washer 132116850000
Loading…
↗
10
6N0−E1651−00
Rod connecting
Loading…
↗
11
6N0−E1515−00
Seal, labyrinth 1
Loading…
↗
12
93440−47055
Cir clip (655)
Loading…
↗
13
91609−20008
Pin, spring
Loading…
↗
14
90201−41303
Washer, plate
Loading…
↗
15
6N0−E1631−00−98
Piston (std)
Loading…
↗
16
6N0−E1603−00
Piston ring set (std)
Loading…
↗
17
93310−112V0
Bearing (6e0)
Loading…
↗
18
6N0−E1633−00
Pin, piston
Loading…
↗
19
93450−13022
Circlip 132116340000
Loading…
↗
