90AETO (2002)
CRANKSHAFT. PISTON

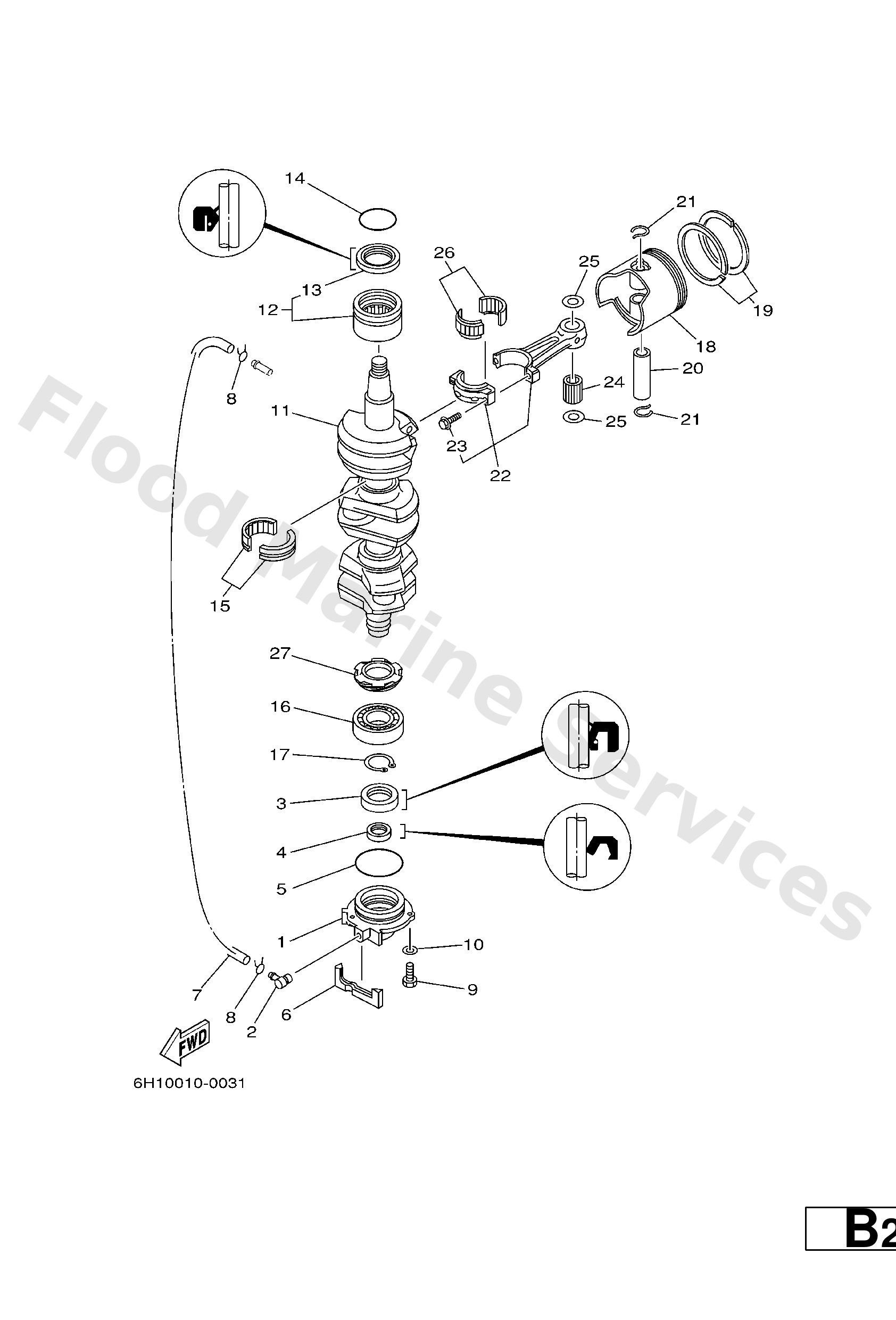

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
6H1−15359−01−94
Housing, oil seal
Loading…
↗
2
688−11370−00
Check valve assembly
Loading…
↗
3
93102−30M05
Oil seal (688)
Loading…
↗
4
93104−20M02
Oil seal (688)
Loading…
↗
5
93210−62269
Ring, o(663)
Loading…
↗
6
688−15379−00
Seal, crank case
Loading…
↗
7
90445−07M86
Hose (l770)
Loading…
↗
8
90467−06016
Clip (655)
Loading…
↗
9
97095−06020
Bolt(7u8)
Loading…
↗
10
92995−06600
Washer, plain (646)
Loading…
↗
11
688−11411−01
Crank, shaft
Loading…
↗
12
93310−636U4
Bearing (688)
Loading…
↗
13
93102−36M02
Oil seal(52w)
Loading…
↗
14
93210−46M16
O-ring (688)
Loading…
↗
15
93310−835U8
Brg,cyl-cal roller (688)
Loading…
↗
16
93306−206U5
Brg,r-b 6206 66mm (688)
Loading…
↗
17
93410−32M00
Circlip
Loading…
↗
18
6H1−11631−03−95
Piston (std)
Loading…
↗
18
6H1−11635−03
AP
Piston (0.25mm o/s)
Loading…
↗
18
6H1−11636−03
AP
Piston (0.50mm o/s)
Loading…
↗
19
688−11603−A0
Piston ring set (std)
Loading…
↗
19
688−11604−A0
AP
Piston ring set (0.25mm o/s)
Loading…
↗
19
688−11605−A0
AP
Piston ring set (0.50mm o/s)
Loading…
↗
20
663−11633−00
Pin, piston
Loading…
↗
21
688−11634−10
Clip, piston pin
Loading…
↗
22
688−11650−03
Connecting rod assembly
Loading…
↗
23
90109−08022
Bolt
Loading…
↗
24
93603−21111
Pin, dowel(663)
Loading…
↗
25
90201−20417
Washer, plate(663)
Loading…
↗
26
93310−730V8
Bearing (688)
Loading…
↗
27
6H1−11536−00
Gear, drive
Loading…
↗
