E40XMH (2002)
CRANKSHAFT. PISTON

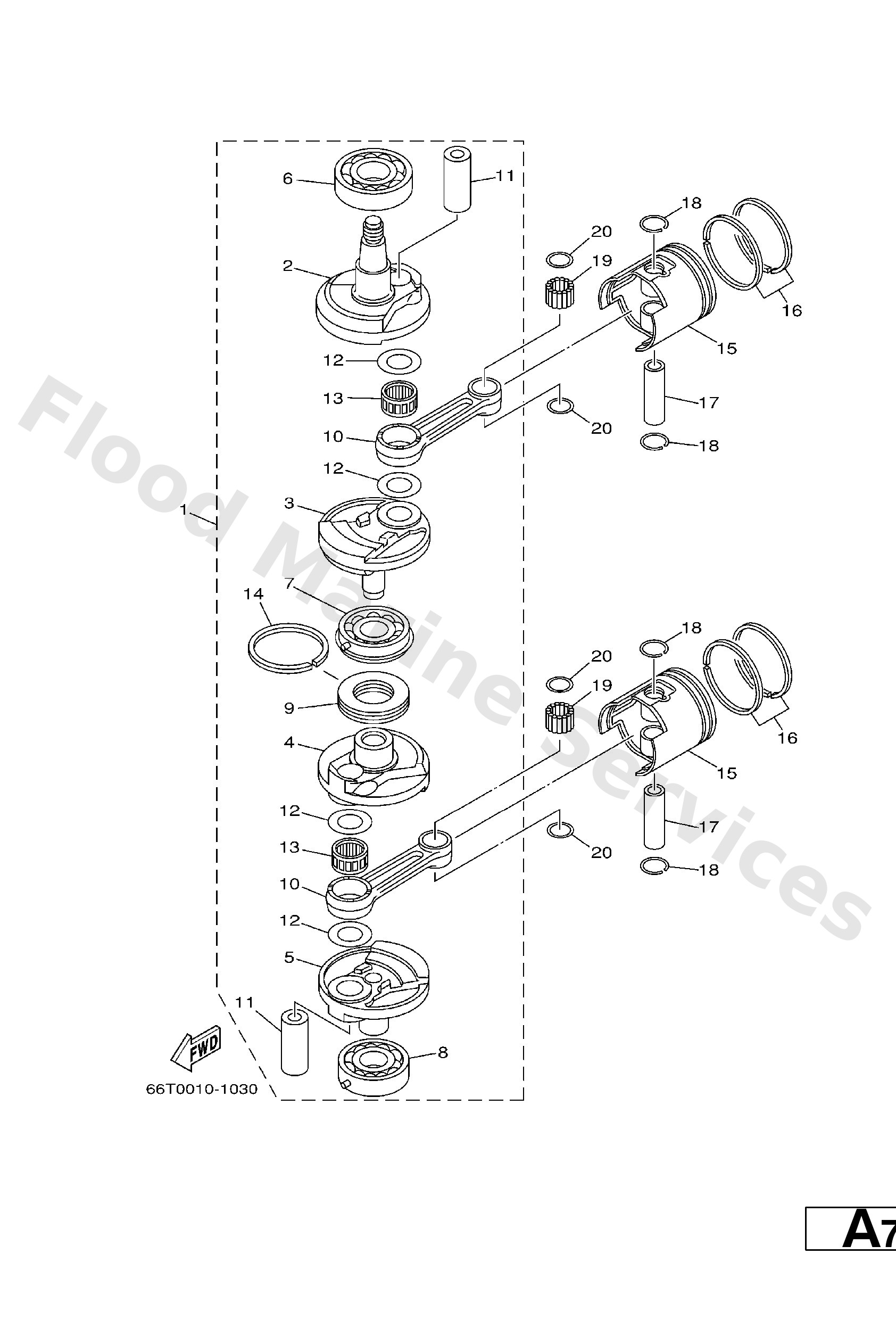

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
66T--11400--01
Crankshaft assembly
Loading…
↗
2
66T--11412--00
Crank 1
Loading…
↗
3
66T--11422--00
Crank 2
Loading…
↗
4
66T--11432--00
Crank 3
Loading…
↗
5
66T--11442--00
Crank 4
Loading…
↗
6
93306--307U0
Brg,r-b 6307 80mm 449g (6f5)
Loading…
↗
7
93332--000UE
Bearing
Loading…
↗
8
93306--306V5
Bearing
Loading…
↗
9
6F5--11515--00
Seal, labyrinth 1
Loading…
↗
10
6F5--11651--00
Rod, connecting
Loading…
↗
11
66T--11681--00
Pin, crank 1
Loading…
↗
12
9020927M07
Washer
Loading…
↗
13
93310--727U0
Bearing
Loading…
↗
14
93440--68M03
Circlip (6f5)
Loading…
↗
15
66T--11631--01--93
Piston (std)
Loading…
↗
15
66T--11635--01
AP
Piston (0.25mm o/s)
Loading…
↗
15
66T--11636--01
AP
Piston (0.50mm o/s)
Loading…
↗
16
66T--11603--00
Piston ring set (std)
Loading…
↗
16
66T--11604--00
AP
Piston ring set (0.25mm o/s)
Loading…
↗
16
66T--11605--00
AP
Piston ring set (0.50mm o/s)
Loading…
↗
17
6F5--11633--00
Pin, piston
Loading…
↗
18
663--11634--00
Clip, piston pin
Loading…
↗
19
93603--21111
Pin, dowel(663)
Loading…
↗
20
90201--20417
Washer, plate(663)
Loading…
↗
