E40XMH (2003)
CRANKSHAFT. PISTON

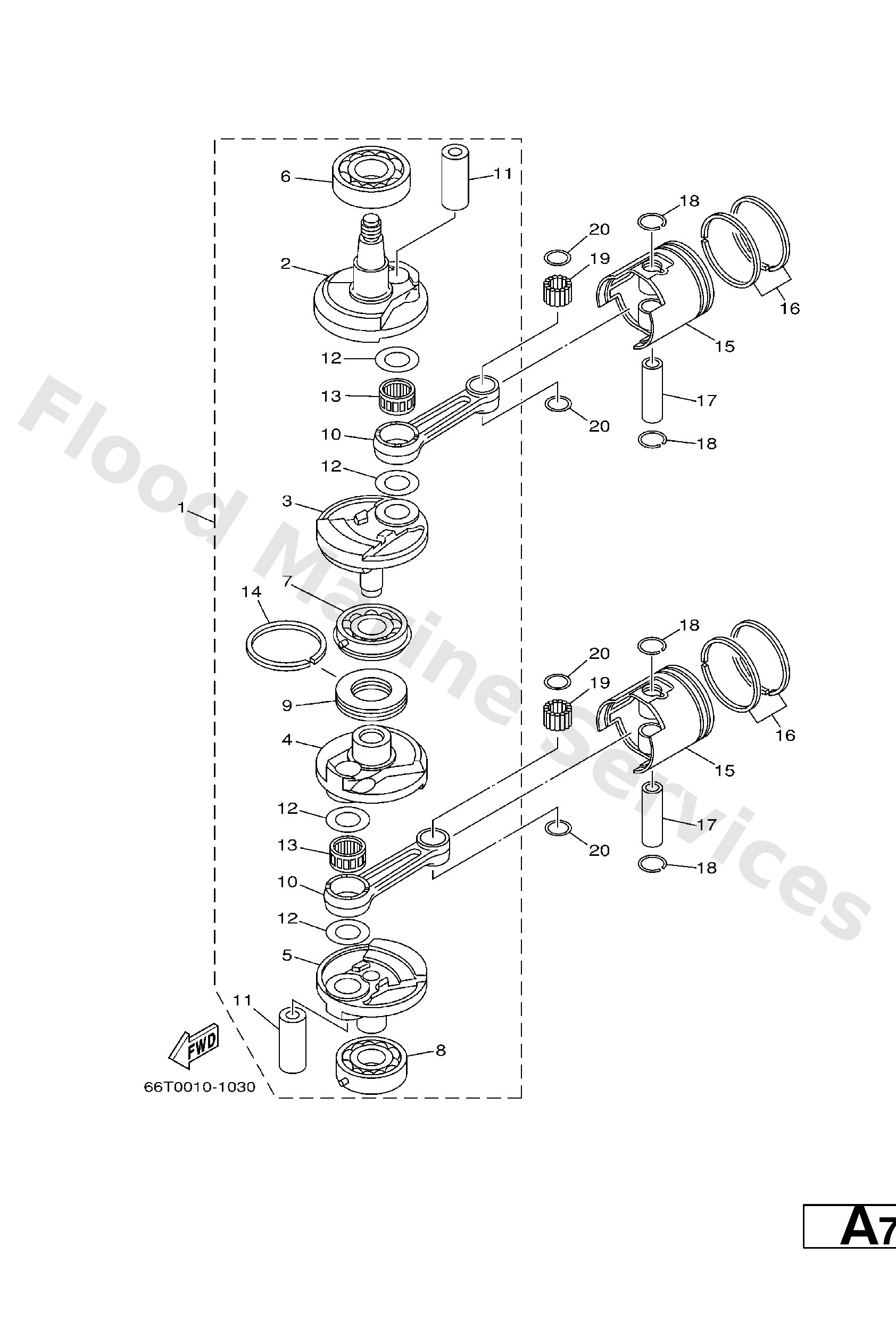

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
66T−11400−01
Crankshaft assembly
Loading…
↗
2
66T−11412−00
Crank 1
Loading…
↗
3
66T−11422−00
Crank 2
Loading…
↗
4
66T−11432−00
Crank 3
Loading…
↗
5
66T−11442−00
Crank 4
Loading…
↗
6
93306−307U0
Brg,r-b 6307 80mm 449g (6f5)
Loading…
↗
7
93332−000UE
Bearing
Loading…
↗
8
93306−306V5
Bearing
Loading…
↗
9
6F5−11515−00
Seal, labyrinth 1
Loading…
↗
10
6F5−11651−00
Rod, connecting
Loading…
↗
11
66T−11681−00
Pin, crank 1
Loading…
↗
12
90209−27M07
Washer
Loading…
↗
13
93310−727U0
Bearing
Loading…
↗
14
93440−68M03
Circlip (6f5)
Loading…
↗
15
66T−11631−01−93
Piston (std)
Loading…
↗
15
66T−11635−01
AP
Piston (0.25mm o/s)
Loading…
↗
15
66T−11636−01
AP
Piston (0.50mm o/s)
Loading…
↗
16
66T−11603−00
Piston ring set (std)
Loading…
↗
16
66T−11604−00
AP
Piston ring set (0.25mm o/s)
Loading…
↗
16
66T−11605−00
AP
Piston ring set (0.50mm o/s)
Loading…
↗
17
6F5−11633−00
Pin, piston
Loading…
↗
18
663−11634−00
Clip, piston pin
Loading…
↗
19
93603−21111
Pin, dowel(663)
Loading…
↗
20
90201−20417
Washer, plate(663)
Loading…
↗
