E60HMHD (2002)
CRANKSHAFT. PISTON

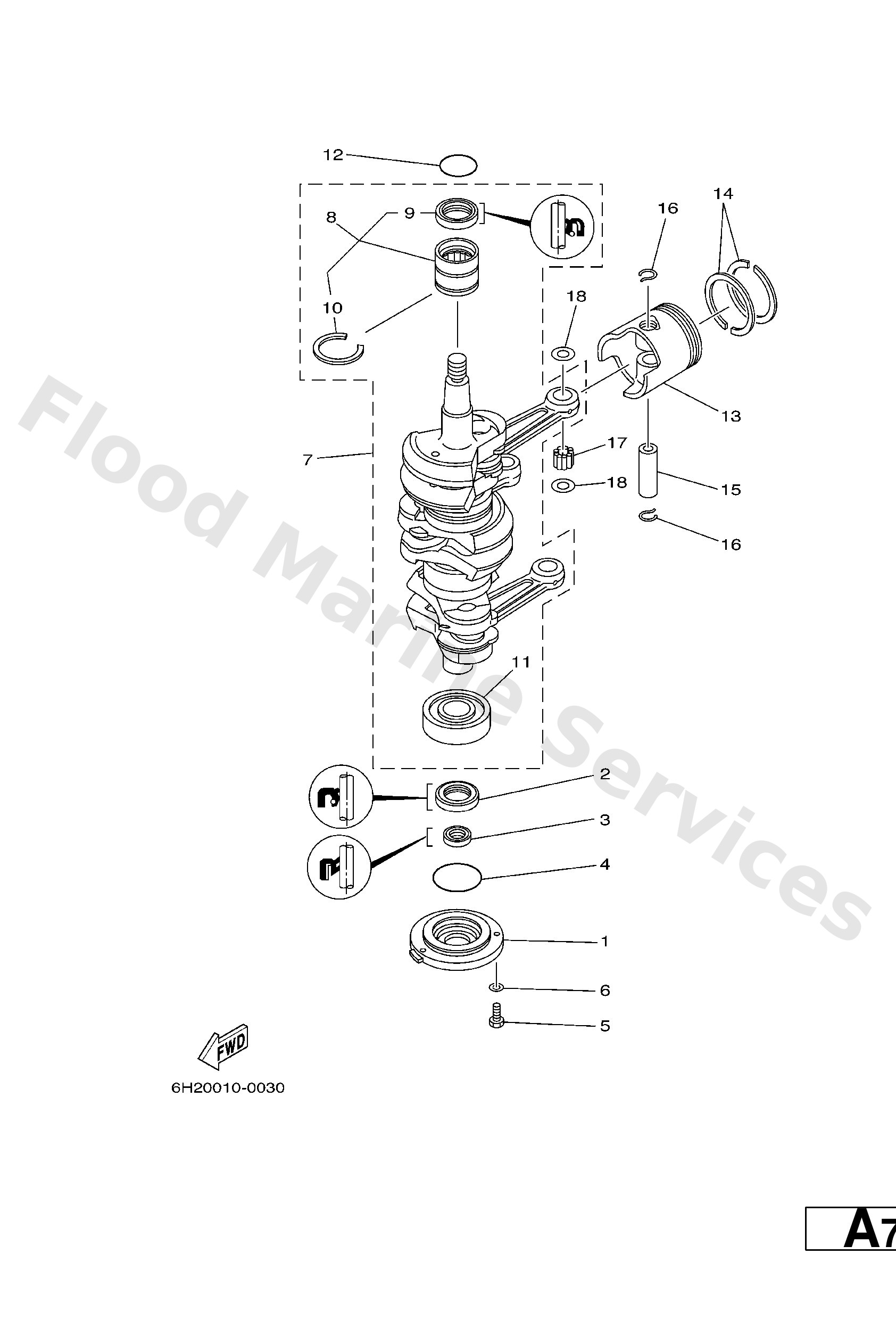

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
6H3−15359−00−94
Housing, oil seal
Loading…
↗
2
93102−30M23
Oil seal (6h3)
Loading…
↗
3
93106−18M01
Oil seal (6h3)
Loading…
↗
4
93210−65M50
O-ring
Loading…
↗
5
97095−06020
Bolt(7u8)
Loading…
↗
6
92995−06600
Washer, plain (646)
Loading…
↗
7
69D−11400−00
Crankshaft assembly
Loading…
↗
8
93311−636U6
Bearing, needle (6h3)
Loading…
↗
9
93102−36M24
Oil seal(52w)
Loading…
↗
10
93440−49M04
Circlip (6h3)
Loading…
↗
11
93306−306V1
Bearing(6h2)
Loading…
↗
12
93210−46M16
O-ring (688)
Loading…
↗
13
6K5−11631−03−95
Piston (std)
Loading…
↗
13
6K5−11635−03
AP
Piston (0.25mm o/s)
Loading…
↗
13
6K5−11636−03
AP
Piston (0.50mm o/s)
Loading…
↗
14
6K5−11601−02
Piston ring set (std)
Loading…
↗
14
6K5−11601−12
AP
Piston ring set (1st o/s)
Loading…
↗
14
6K5−11601−22
AP
Piston ring set (2nd o/s)
Loading…
↗
15
6H3−11633−00
Pin, piston
Loading…
↗
16
688−11634−10
Clip, piston pin
Loading…
↗
17
93603−18M09
Pin, dowel b (6h3)
Loading…
↗
18
90201−20417
Washer, plate(663)
Loading…
↗
