E60HWHD (2003)
CRANKSHAFT. PISTON

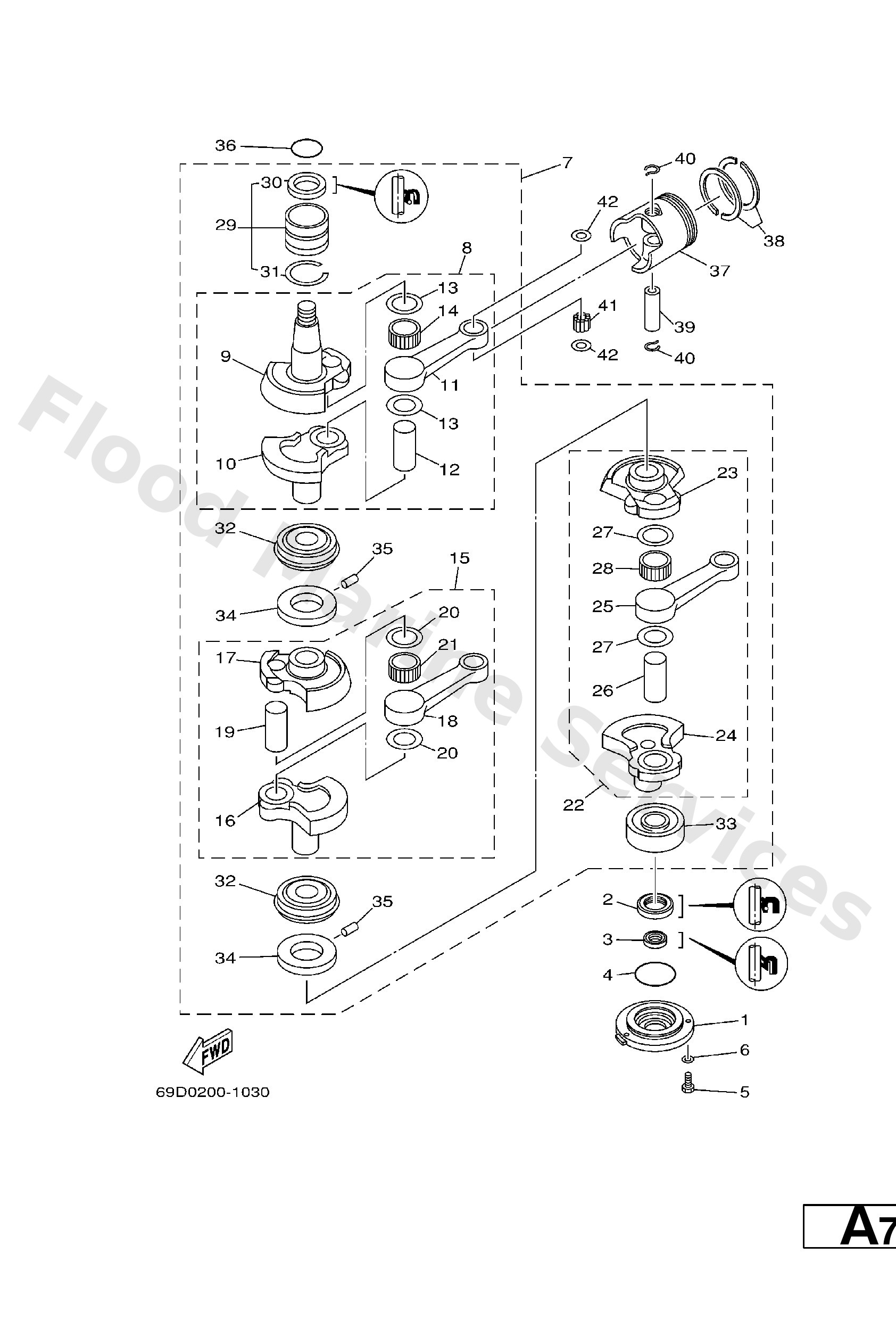

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
6H3−15359−00−94
Housing, oil seal
Loading…
↗
2
93102−30M23
Oil seal (6h3)
Loading…
↗
3
93106−18M01
Oil seal (6h3)
Loading…
↗
4
93210−65M50
O-ring
Loading…
↗
5
97095−06020
Bolt(7u8)
Loading…
↗
6
92995−06600
Washer, plain (646)
Loading…
↗
7
69D−11400−00
Crankshaft assembly
Loading…
↗
8
6K5−11401−00
Crank sub-assembly 1
Loading…
↗
9
6K5−11412−00
Crank 1
Loading…
↗
10
6K5−11422−00
Crank 2
Loading…
↗
11
6K5−11651−00
Rod, connecting
Loading…
↗
12
6K5−11681−00
Pin, crank 1
Loading…
↗
13
90209−27M11
Washer
Loading…
↗
14
93310−527W1
Bearing, cylindrical(6k5)
Loading…
↗
15
6K5−11402−00
Crank sub-assembly 2
Loading…
↗
17
6H3−11432−00
Crank 3
Loading…
↗
22
6K5−11403−00
Crank sub-assembly 3
Loading…
↗
24
6K5−11442−00
Crank 4
Loading…
↗
29
93311−636U6
Bearing, needle (6h3)
Loading…
↗
30
93102−36M24
Oil seal(52w)
Loading…
↗
31
93440−49M04
Circlip (6h3)
Loading…
↗
32
93332−000UE
Bearing
Loading…
↗
33
93306−306V1
Bearing(6h2)
Loading…
↗
34
6H3−11515−00
Seal, labyrinth
Loading…
↗
35
90254−03002
Pin, spring
Loading…
↗
36
93210−46M16
O-ring (688)
Loading…
↗
37
6K5−11631−03−95
Piston (std)
Loading…
↗
37
6K5−11635−03
AP
Piston (0.25mm o/s)
Loading…
↗
37
6K5−11636−03
AP
Piston (0.50mm o/s)
Loading…
↗
38
6K5−11601−02
Piston ring set (std)
Loading…
↗
38
6K5−11601−12
AP
Piston ring set (1st o/s)
Loading…
↗
38
6K5−11601−22
AP
Piston ring set (2nd o/s)
Loading…
↗
39
6H3−11633−00
Pin, piston
Loading…
↗
40
688−11634−10
Clip, piston pin
Loading…
↗
41
93603−18M09
Pin, dowel b (6h3)
Loading…
↗
42
90201−20417
Washer, plate(663)
Loading…
↗
