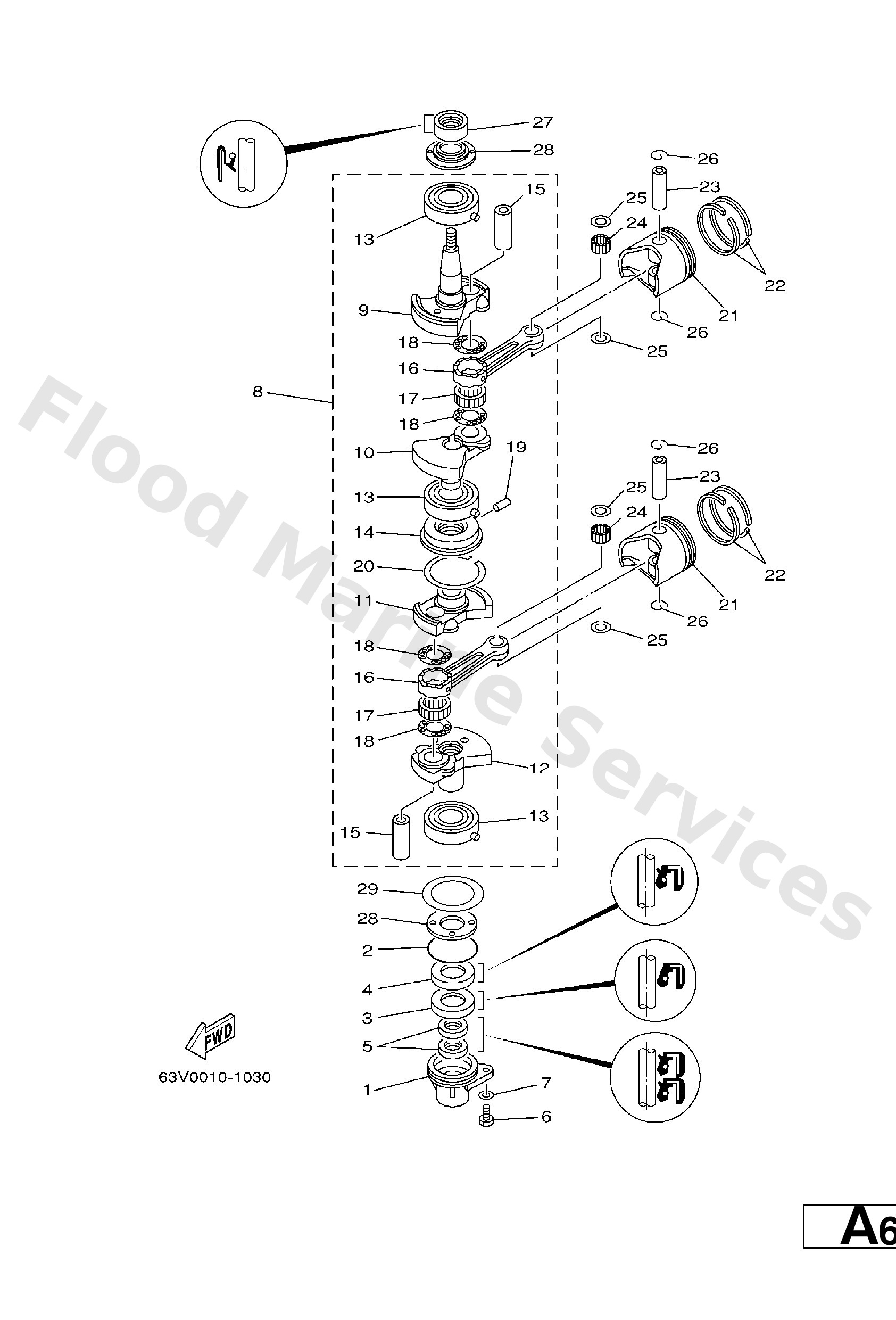

Diagram: CRANKSHAFT. PISTON

Diagram

Parts List

Reference
Description
Price


1
63V−15396−01−94
Housing, oil seal
Loading…

↗
2
93210−46MH8
O−Ring
Loading…

↗
3
93101−25018
Oil seal
Loading…

↗
4
93102−25M48
Oil seal(63v)
Loading…

↗
5
93101−13018
Oil seal
Loading…

↗
6
97095−06016
Bolt, hexagon deep recess
Loading…

↗
7
92995−06600
Washer, plain (646)
Loading…

↗
8
65G−11400−01
3−
Loading…

↗
9
63V−11412−00
Crank 1
Loading…

↗
10
63V−11422−00
Crank 2
Loading…

↗
11
63V−11432−00
Crank 3
Loading…

↗
12
63V−11442−00
Crank 4
Loading…

↗
13
93306−205U7
Bearing(63v)
Loading…

↗
14
63V−11515−02
Seal, labyrinth 1
Loading…

↗
15
682−11681−00
Pin crank
Loading…

↗
16
6K4−11651−00
Rod, connecting
Loading…

↗
17
93310−620W5
Bearing, cylindrical(6k4)
Loading…

↗
18
90209−20M23
Washer, crank pin (1h9)
Loading…

↗
19
91609−20008
Pin, spring
Loading…

↗
20
93440−52009
Circlip (168)
Loading…

↗
21
6E7−11631−00−97
Piston (std)
Loading…

↗
21
6E7−11635−00 AP
Piston (1st o.s)
Loading…

↗
21
6E7−11636−00 AP
Piston (2nd o.s)
Loading…

↗
22
682−11610−01
Piston ring set (std)
Loading…

↗
22
682−11610−11 AP
Piston ring set (1st o/s)
Loading…

↗
22
682−11610−21 AP
Piston ring set (2nd o/s)
Loading…

↗
23
634−11633−00
Pin, piston
Loading…

↗
24
93602−14104
Pin, dowel
Loading…

↗
25
90201−14377
Washer, plate
Loading…

↗
26
93450−15023
Circlip 131116340000
Loading…

↗
27
93110−23M00
Oil seal (682)
Loading…

↗
28
63V−11445−00
Spacer
Loading…

↗
29
90201−46M29
Washer, plate(63v)
Loading…

↗
