F100BET (2003)
CRANKSHAFT. PISTON

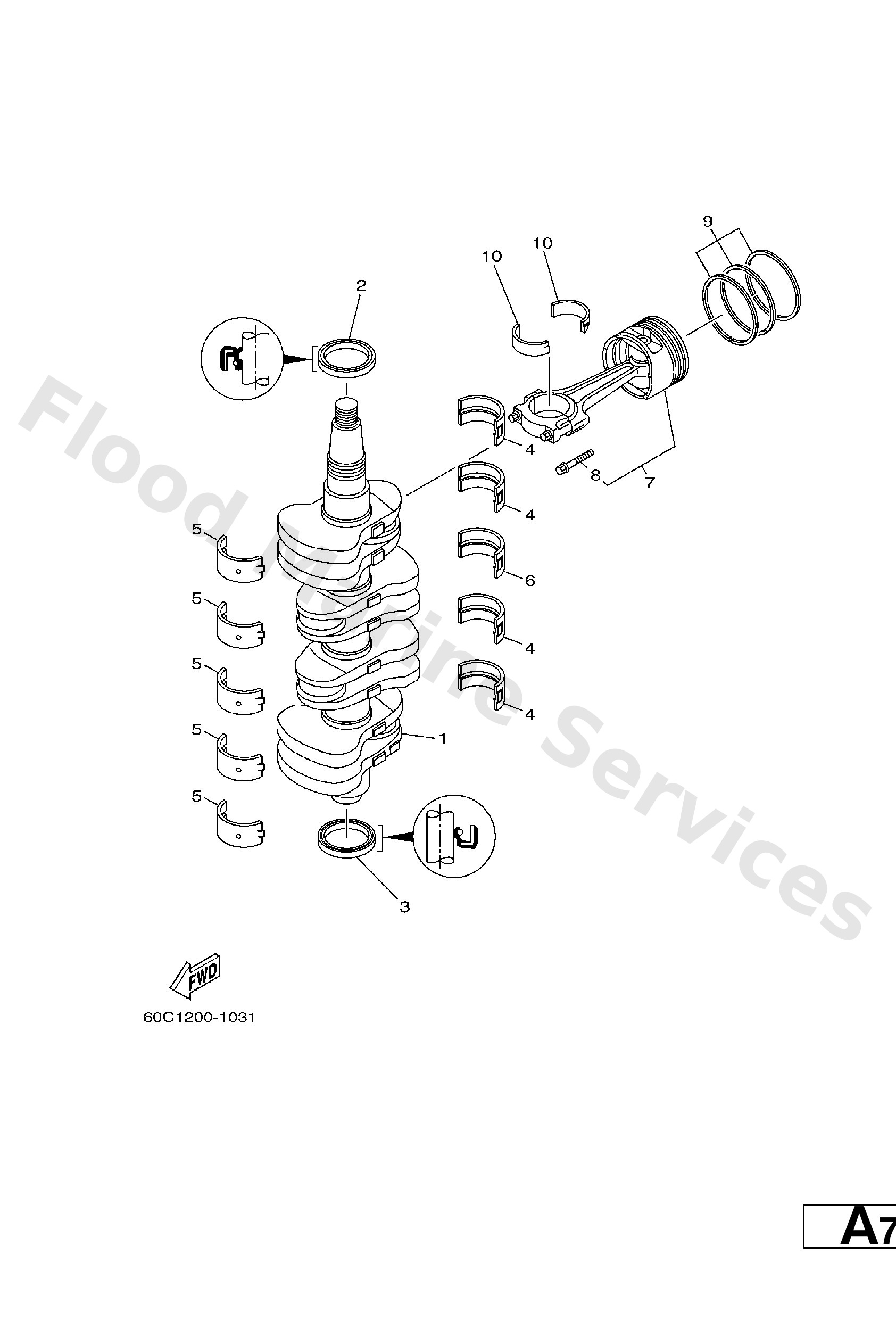

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
67F−11411−00
Crankshaft
Loading…
↗
2
93102−48008
Oil seal
Loading…
↗
3
93101−48001
Oil seal
Loading…
↗
4
67F−11416−00
UR GREEN
Plane bearing, crankshaft 1
Loading…
↗
4
67F−11416−10
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
4
67F−11416−20
UR RED
Plane bearing, crankshaft 1
Loading…
↗
5
67F−11417−00
UR YELLOW
Plane bearing, crankshaft 2
Loading…
↗
5
67F−11417−10
UR GREEN
Plane bearing, crankshaft 2
Loading…
↗
5
67F−11417−20
UR BLUE
Plane bearing, crankshaft 2
Loading…
↗
5
67F−11417−30
UR RED
Plane bearing, crankshaft 2
Loading…
↗
6
67F−11418−10
UR BLUE
Plane bearing, crankshaft 3
Loading…
↗
6
67F−11418−20
UR RED
Plane bearing, crankshaft 3
Loading…
↗
6
67F−11418−00
UR GREEN
Plane bearing, crankshaft 3
Loading…
↗
7
60C−W1164−00
Piston/con-rod assembly std
Loading…
↗
7
60C−W1164−10
AP
Piston/con-rod assembly(0.25mm os)
Loading…
↗
8
67F−11654−00
Bolt, connecting rod
Loading…
↗
9
60C−11603−00
Piston ring set (std)
Loading…
↗
9
60C−11604−00
AP
Piston ring set (0.25mm o/s)
Loading…
↗
10
67F−11656−00
UR YELLOW
Plane bearing, connecting rod
Loading…
↗
10
67F−11656−10
UR GREEN
Plane bearing, connecting rod
Loading…
↗
10
67F−11656−20
UR BLUE
Plane bearing, connecting rod
Loading…
↗
10
67F−11656−30
UR RED
Plane bearing, connecting rod
Loading…
↗
