F20AET (1998)
CRANKSHAFT. PISTON

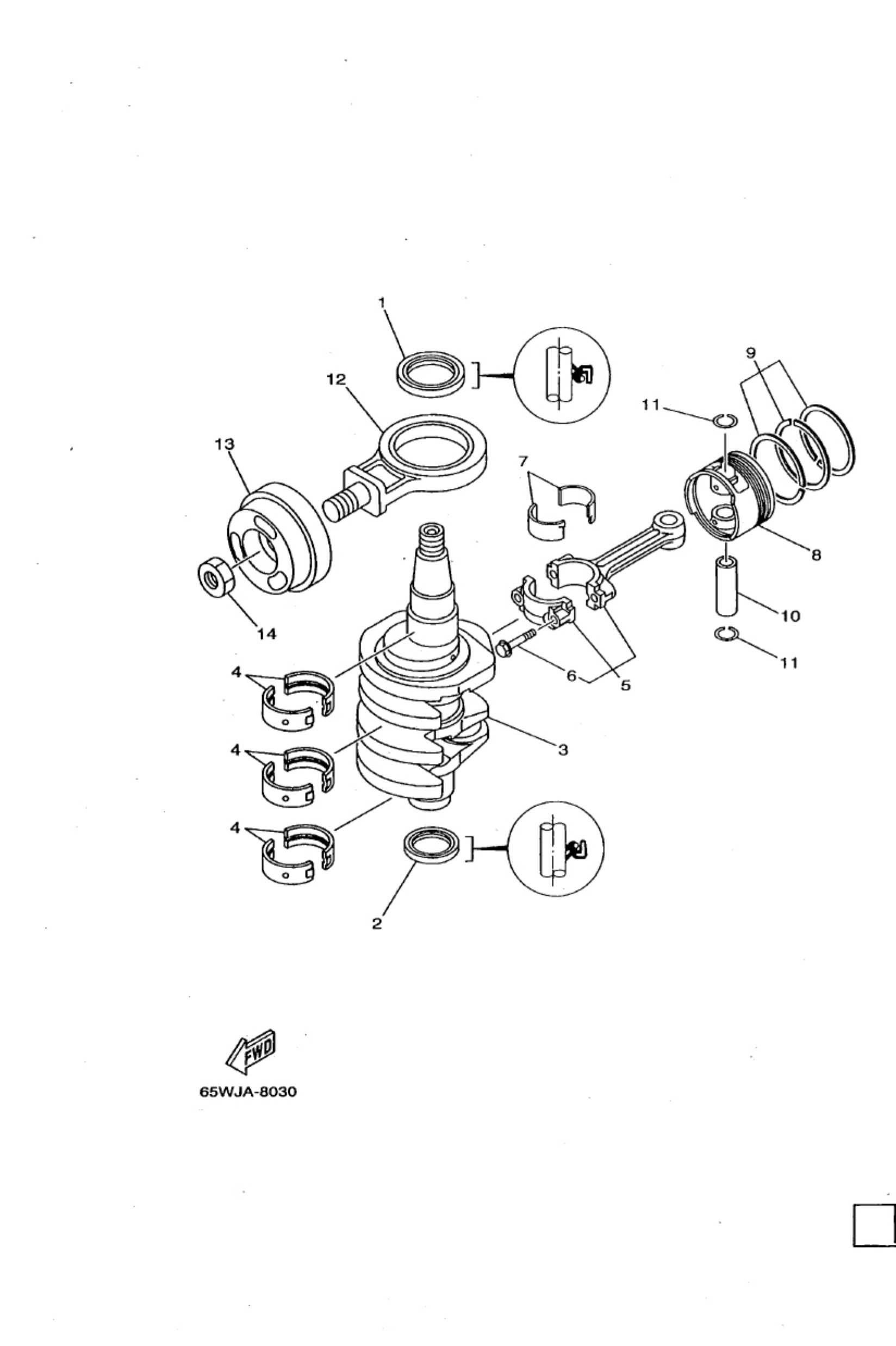

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
9310243M42
Oil seal(62y)
Loading…
↗
2
9310235Md7
Oil Seal
Loading…
↗
3
65W1141100
11] 1
Crankshaft
Loading…
↗
4
62Y1141600
UR BROWN
Plane bearing, crankshaft 1
Loading…
↗
4
62Y1141610
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
5
62Y1165000
2| 2| 2
Connecting rod assembly
Loading…
↗
6
62Y1165400
2| 2] 2
Bolt, connecting rod
Loading…
↗
7
62Y165620
4|4]a UR BLUE
Plane Bearing, Connecting Rod
Loading…
↗
7
65W1163600
2| 2) 2 AP
Piston (0.50mm o/s)
Loading…
↗
7
65W1163500
2f 2] 2 AP
Piston (0.25mm o/s)
Loading…
↗
7
62Y1165610
af af 4 UR BLACK
Plane bearing, connecting rod
Loading…
↗
7
62Y1165600
af 4f a UR BROWN
Plane bearing, connecting rod
Loading…
↗
9
65W1160300
2| 2| 2
Piston Ring Set (Std)
Loading…
↗
9
65W1160500
2| 2] 2 AP
3-9
Loading…
↗
10
62Y1163300
2| 2f 2
Pin, piston
Loading…
↗
11
9345017129
af af 4
Circlip(1ar)
Loading…
↗
12
65W1166500
11] 1
Con-rod assembly, balance
Loading…
↗
13
65
Piston,
Loading…
↗
14
9017020137
RIE
Nut, hexagon(663)
Loading…
↗
