F4AMH (2002)
CRANKSHAFT. PISTON

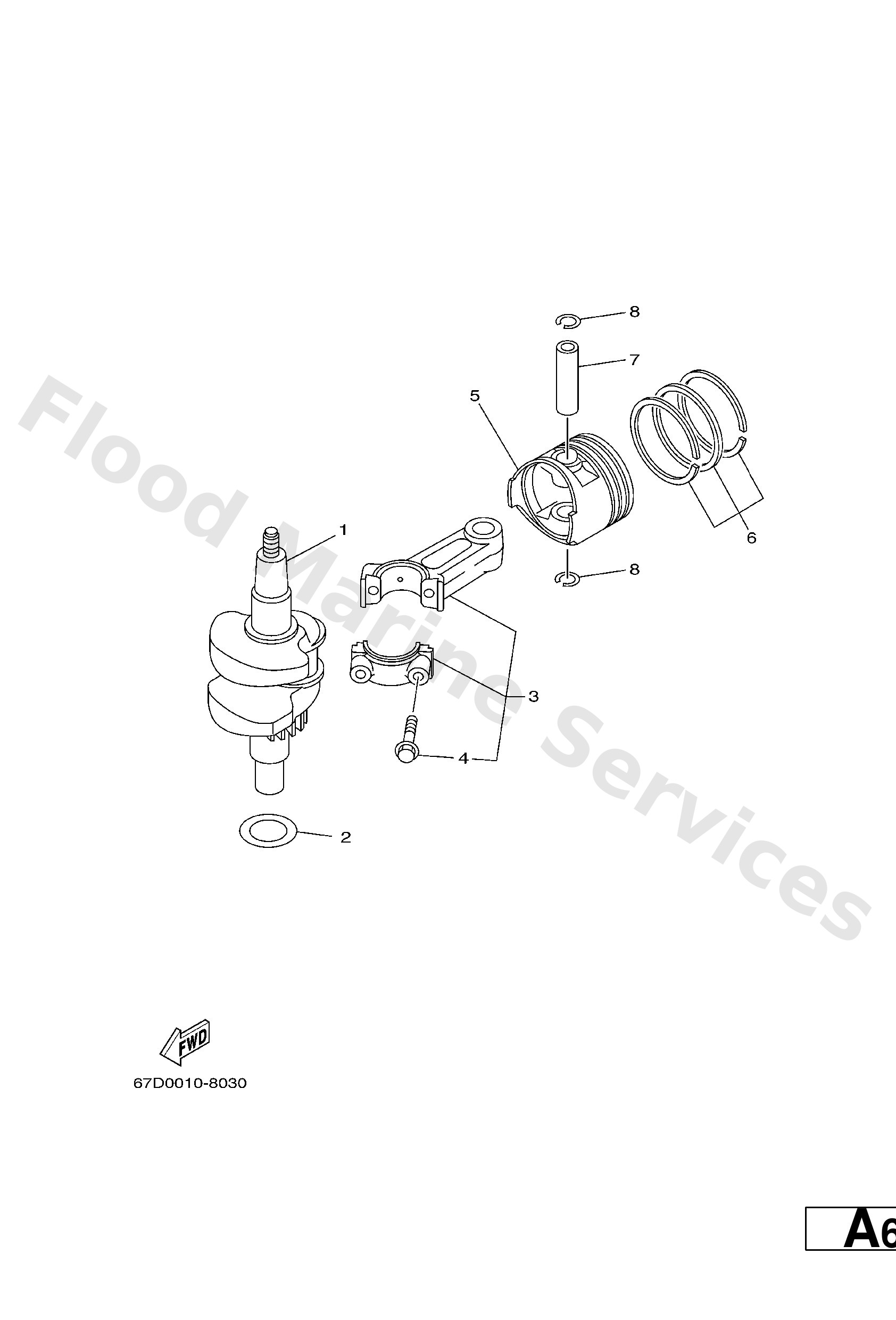

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
67D1140000
-
Loading…
↗
2
90201266P2
Washer, plate(ja8)
Loading…
↗
3
67D1165000
Connecting rod kit
Loading…
↗
4
67D1165400
Bolt, connecting rod
Loading…
↗
5
68DE163500
AP
Piston (0.25Mm O/S)
Loading…
↗
5
68DE163600
AP
Piston (0.50Mm O/S)
Loading…
↗
5
68DE16310096
Piston (std)
Loading…
↗
6
68DE160500
AP
Piston Ring Set (0.50Mm O/S)
Loading…
↗
6
68DE160400
AP
Piston Ring Set (0.25Mm O/S)
Loading…
↗
6
68DE160300
Piston ring (set)
Loading…
↗
7
67D1163300
Pin, Piston
Loading…
↗
8
9345014088
Circlip (22f)
Loading…
↗
