F50AEHT (2002)
CRANKSHAFT. PISTON

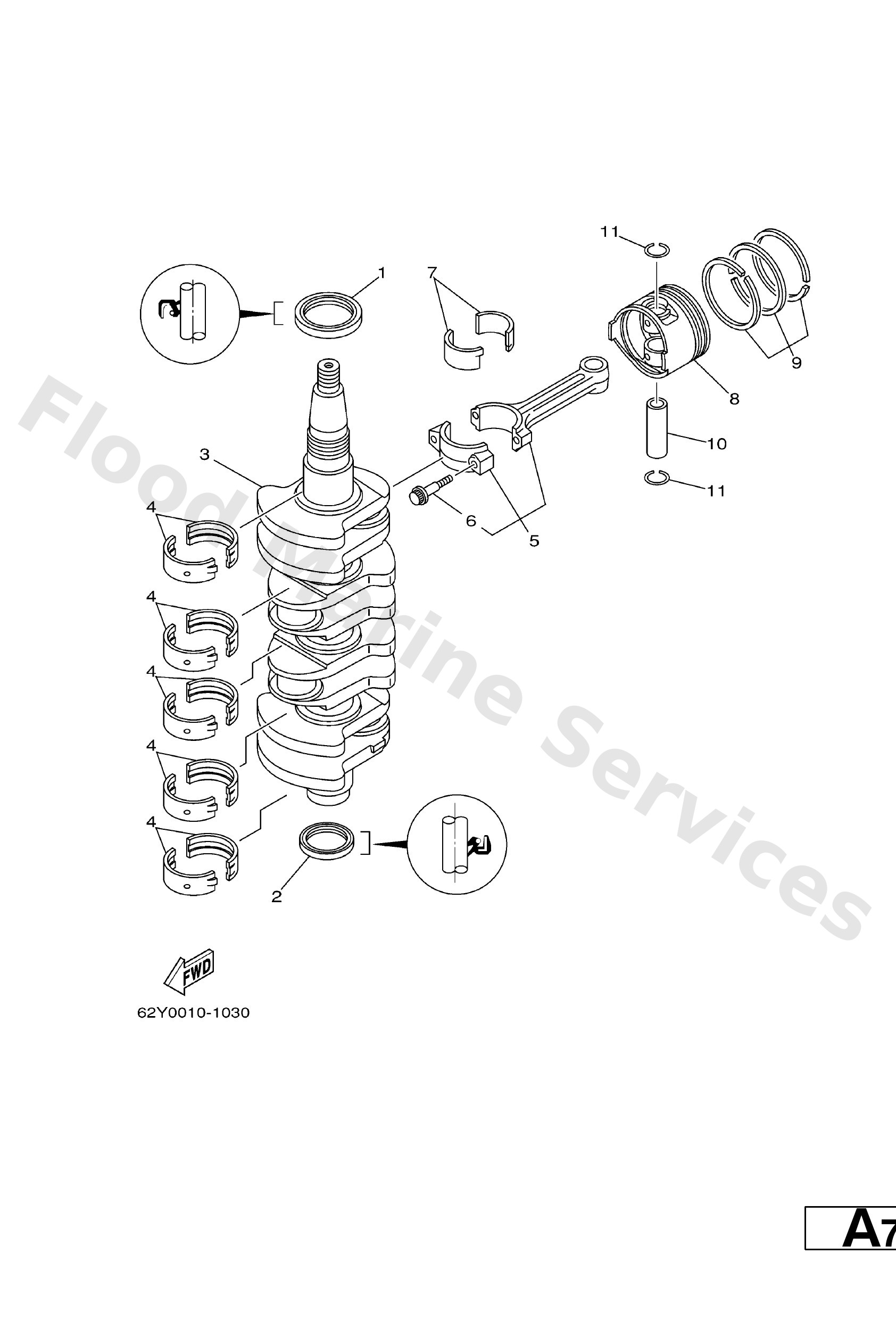

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
9310243M42
Oil seal(62y)
Loading…
↗
2
9310135002
Oil seal
Loading…
↗
3
62Y1141120
Crankshaft & nut set
Loading…
↗
4
62Y1141630
UR YELLOW
Plane bearing, crankshaft 1
Loading…
↗
4
62Y1141640
UR RED
Plane bearing, crankshaft 1
Loading…
↗
4
62Y1141650
UR PINK
Plane bearing, crankshaft 1
Loading…
↗
4
62Y1141660
UR GREEN
Plane bearing, crankshaft 1
Loading…
↗
5
62Y1165010
Connecting rod assembly
Loading…
↗
6
62Y1165400
Bolt, connecting rod
Loading…
↗
7
62Y1165640
UR RED
Plane bearing, connecting rod
Loading…
↗
7
62Y1165660
UR GREEN
Plane bearing, connecting rod
Loading…
↗
7
62Y1165650
UR PINK
Plane bearing, connecting rod
Loading…
↗
7
62Y1165630
UR YELLOW
Plane bearing, connecting rod
Loading…
↗
8
62Y116311096
Piston (std)
Loading…
↗
8
62Y1163510
AP
Piston (0.25mm o/s)
Loading…
↗
8
62Y1163610
AP
Piston (0.50mm o/s)
Loading…
↗
9
64J1160300
Piston ring set (std)
Loading…
↗
9
64J1160400
AP
Piston ring set (0.25mm o/s)
Loading…
↗
9
64J1160500
AP
Piston ring set (0.50mm o/s)
Loading…
↗
10
62Y1163300
Pin, piston
Loading…
↗
11
9345017129
Circlip(1ar)
Loading…
↗
