Yamaha Outboard Parts - CRANKSHAFT. PISTON - FL115AET (2003) | Flood Marine

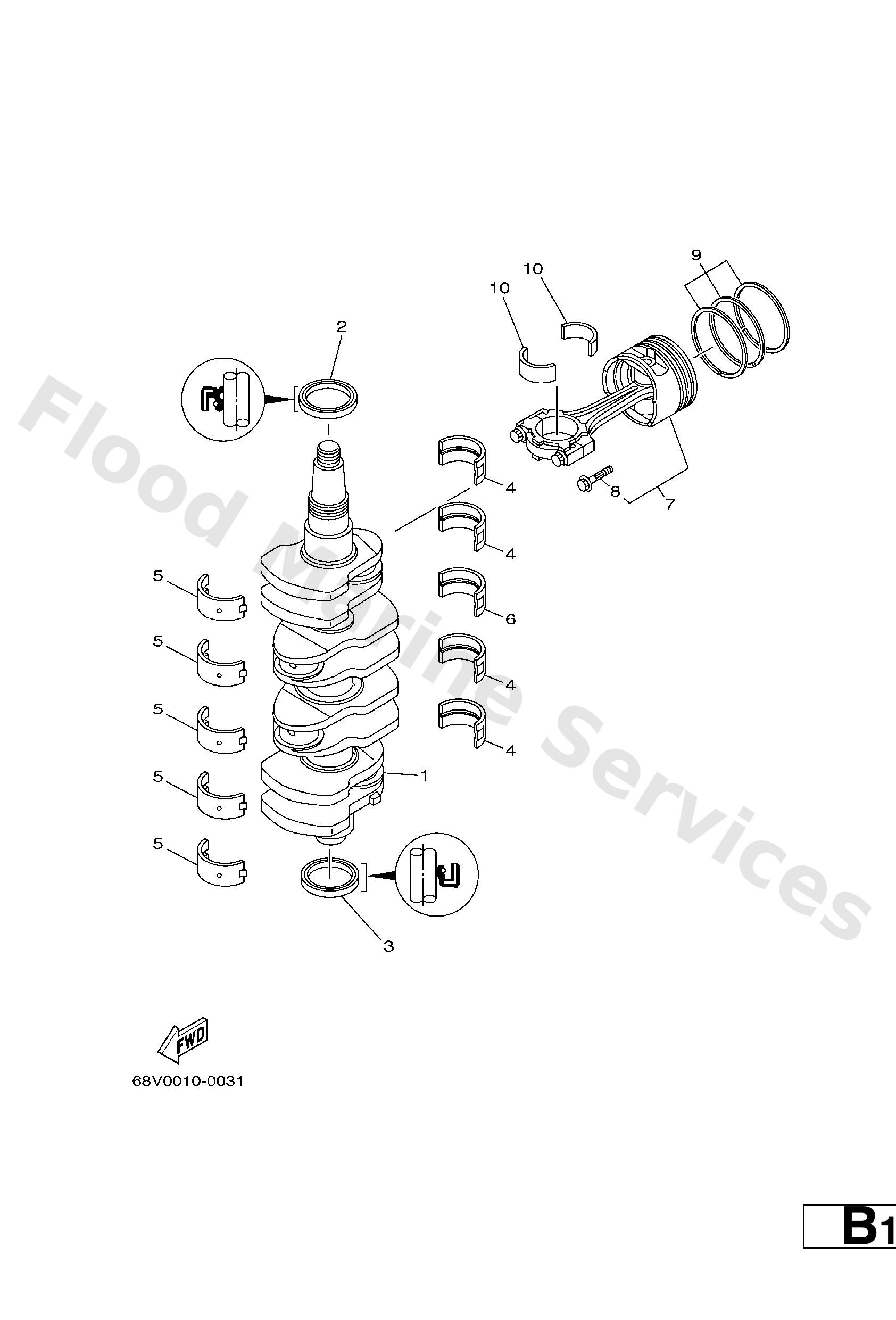

Diagram: CRANKSHAFT. PISTON

Diagram

Parts List

Reference
Description
Price


1
68V−11411−00
Crankshaft
Loading…

↗
2
93102−48009
Oil seal
Loading…

↗
3
93101−48002
Oil seal
Loading…

↗
4
67F−11416−00 UR GREEN
Plane bearing, crankshaft 1
Loading…

↗
4
67F−11416−10 UR BLUE
Plane bearing, crankshaft 1
Loading…

↗
4
67F−11416−20 UR RED
Plane bearing, crankshaft 1
Loading…

↗
5
67F−11417−00 UR YELLOW
Plane bearing, crankshaft 2
Loading…

↗
5
67F−11417−10 UR GREEN
Plane bearing, crankshaft 2
Loading…

↗
5
67F−11417−20 UR BLUE
Plane bearing, crankshaft 2
Loading…

↗
5
67F−11417−30 UR RED
Plane bearing, crankshaft 2
Loading…

↗
6
67F−11418−10 UR BLUE
Plane bearing, crankshaft 3
Loading…

↗
6
67F−11418−20 UR RED
Plane bearing, crankshaft 3
Loading…

↗
6
67F−11418−00 UR GREEN
Plane bearing, crankshaft 3
Loading…

↗
7
68V−W1164−00
Piston/con-rod assembly std
Loading…

↗
7
68V−W1164−10 AP
Piston/con-rod assembly(0.25mm os)
Loading…

↗
8
K1C−A3275−00
Bolt, connecting rod
Loading…

↗
9
67F−11603−01
Piston ring set (std)
Loading…

↗
9
67F−11604−01 AP
Piston ring set (0.25mm o/s)
Loading…

↗
10
68V−11656−00 UR YELLOW
Plane bearing, connecting rod
Loading…

↗
10
68V−11656−10 UR GREEN
Plane bearing, connecting rod
Loading…

↗
10
68V−11656−20 UR BLUE
Plane bearing, connecting rod
Loading…

↗
10
68V−11656−30 UR RED
Plane bearing, connecting rod
Loading…

↗
