FT25BED (2002)
CRANKSHAFT. PISTON

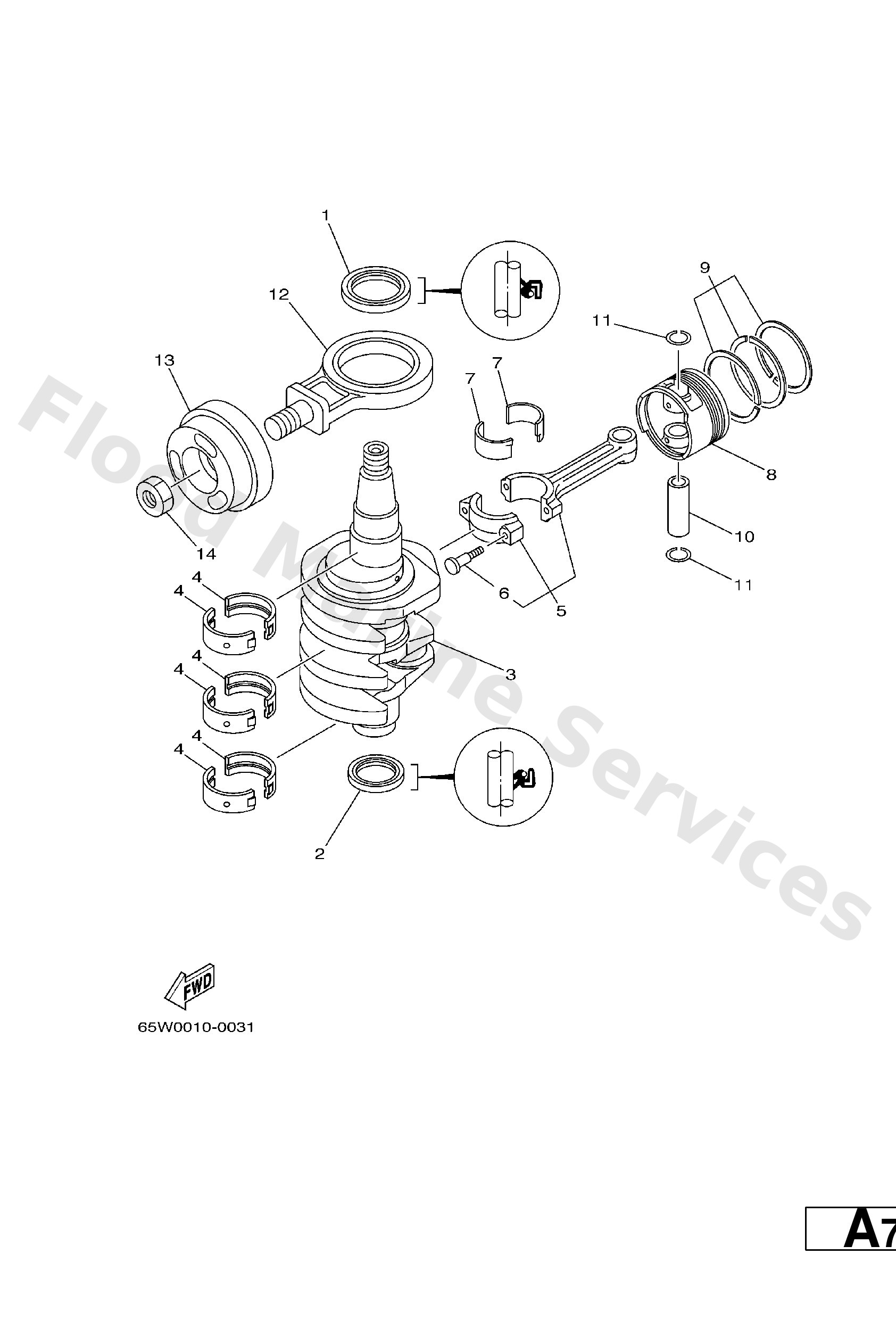

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
93102--43M42
Oil seal(62y)
Loading…
↗
2
93102--35M47
Oil seal(62y)
Loading…
↗
3
65W1141101
Crankshaft
Loading…
↗
4
62Y--11416--00
UR BROWN
Plane bearing, crankshaft 1
Loading…
↗
4
62Y--11416--10
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
4
62Y--11416--20
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
5
67C1165000
Connecting rod assembly
Loading…
↗
6
62Y--11654--00
Bolt, connecting rod
Loading…
↗
7
62Y--11656--00
UR BROWN
Plane bearing, connecting rod
Loading…
↗
7
62Y--11656--10
UR BLACK
Plane bearing, connecting rod
Loading…
↗
7
62Y--11656--20
UR BLUE
Plane bearing, connecting rod
Loading…
↗
8
65W116310096
Piston (std)
Loading…
↗
8
65W--11636--00
AP
Piston (0.50mm o/s)
Loading…
↗
8
65W--11635--00
AP
Piston (0.25mm o/s)
Loading…
↗
9
67C--11603--00
Piston ring set (std)
Loading…
↗
9
67C--11604--00
AP
Piston ring set (0.25mm o/s)
Loading…
↗
9
67C--11605--00
AP
Piston ring set (0.50mm o/s)
Loading…
↗
10
62Y--11633--00
Pin, piston
Loading…
↗
11
93450--17129
Circlip(1ar)
Loading…
↗
12
65W--11665--00
Con-rod assembly, balance
Loading…
↗
13
65W--11642--11
3−
Loading…
↗
14
90170--20137
Nut, hexagon(663)
Loading…
↗
