FT25BET (2003)
CRANKSHAFT. PISTON

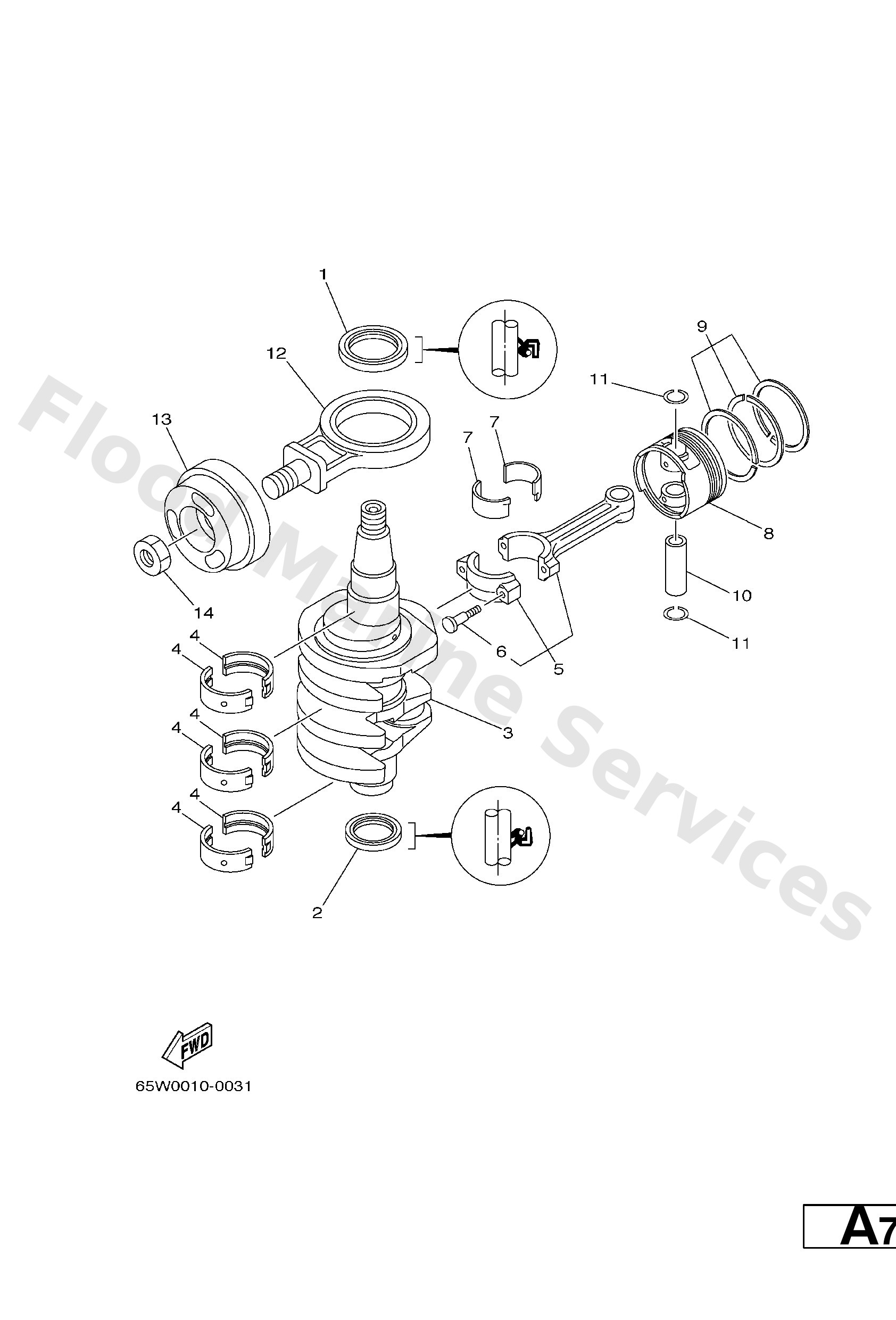

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
93102−43M42
Oil seal(62y)
Loading…
↗
2
93102−35M47
Oil seal(62y)
Loading…
↗
3
65W−11411−01
Crankshaft
Loading…
↗
4
62Y−11416−00
UR BROWN
Plane bearing, crankshaft 1
Loading…
↗
4
62Y−11416−10
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
4
62Y−11416−20
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
5
67C−11650−00
Connecting rod assembly
Loading…
↗
6
62Y−11654−00
Bolt, connecting rod
Loading…
↗
7
62Y−11656−00
UR BROWN
Plane bearing, connecting rod
Loading…
↗
7
62Y−11656−10
UR BLACK
Plane bearing, connecting rod
Loading…
↗
7
62Y−11656−20
UR BLUE
Plane bearing, connecting rod
Loading…
↗
8
65W−11631−00−96
Piston (std)
Loading…
↗
8
65W−11636−00
AP
Piston (0.50mm o/s)
Loading…
↗
8
65W−11635−00
AP
Piston (0.25mm o/s)
Loading…
↗
9
67C−11603−00
Piston ring set (std)
Loading…
↗
9
67C−11604−00
AP
Piston ring set (0.25mm o/s)
Loading…
↗
9
67C−11605−00
AP
Piston ring set (0.50mm o/s)
Loading…
↗
10
62Y−11633−00
Pin, piston
Loading…
↗
11
93450−17129
Circlip(1ar)
Loading…
↗
12
65W−11665−00
Con-rod assembly, balance
Loading…
↗
13
65W−11642−11
3−
Loading…
↗
14
90170−20137
Nut, hexagon(663)
Loading…
↗
