FT50CET (2003)
CRANKSHAFT. PISTON

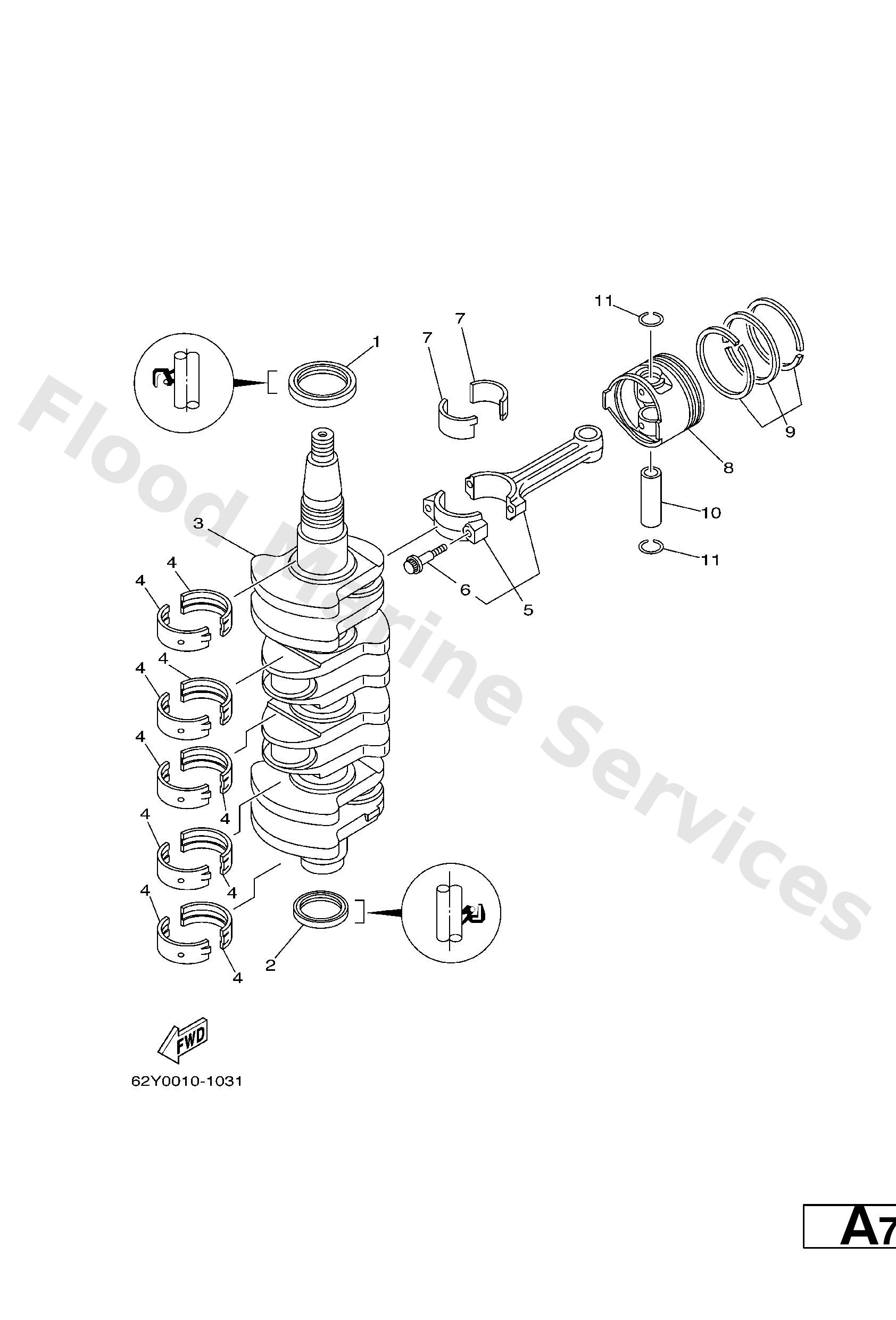

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
93102−43M42
Oil seal(62y)
Loading…
↗
2
93101−35002
Oil seal
Loading…
↗
3
69W−11411−00
Crankshaft & nut set
Loading…
↗
4
62Y−11416−30
UR YELLOW
Plane bearing, crankshaft 1
Loading…
↗
4
62Y−11416−40
UR RED
Plane bearing, crankshaft 1
Loading…
↗
4
62Y−11416−50
UR PINK
Plane bearing, crankshaft 1
Loading…
↗
4
62Y−11416−60
UR GREEN
Plane bearing, crankshaft 1
Loading…
↗
5
62Y−11650−10
Connecting rod assembly
Loading…
↗
6
62Y−11654−00
Bolt, connecting rod
Loading…
↗
7
62Y−11656−40
UR RED
Plane bearing, connecting rod
Loading…
↗
7
62Y−11656−60
UR GREEN
Plane bearing, connecting rod
Loading…
↗
7
62Y−11656−50
UR PINK
Plane bearing, connecting rod
Loading…
↗
7
62Y−11656−30
UR YELLOW
Plane bearing, connecting rod
Loading…
↗
8
62Y−11631−10−96
Piston (std)
Loading…
↗
8
62Y−11635−10
AP
Piston (0.25mm o/s)
Loading…
↗
8
62Y−11636−10
AP
Piston (0.50mm o/s)
Loading…
↗
9
64J−11603−00
Piston ring set (std)
Loading…
↗
9
64J−11604−00
AP
Piston ring set (0.25mm o/s)
Loading…
↗
9
64J−11605−00
AP
Piston ring set (0.50mm o/s)
Loading…
↗
10
62Y−11633−00
Pin, piston
Loading…
↗
11
93450−17129
Circlip(1ar)
Loading…
↗
