FT8DMH (2002)
CRANKSHAFT. PISTON

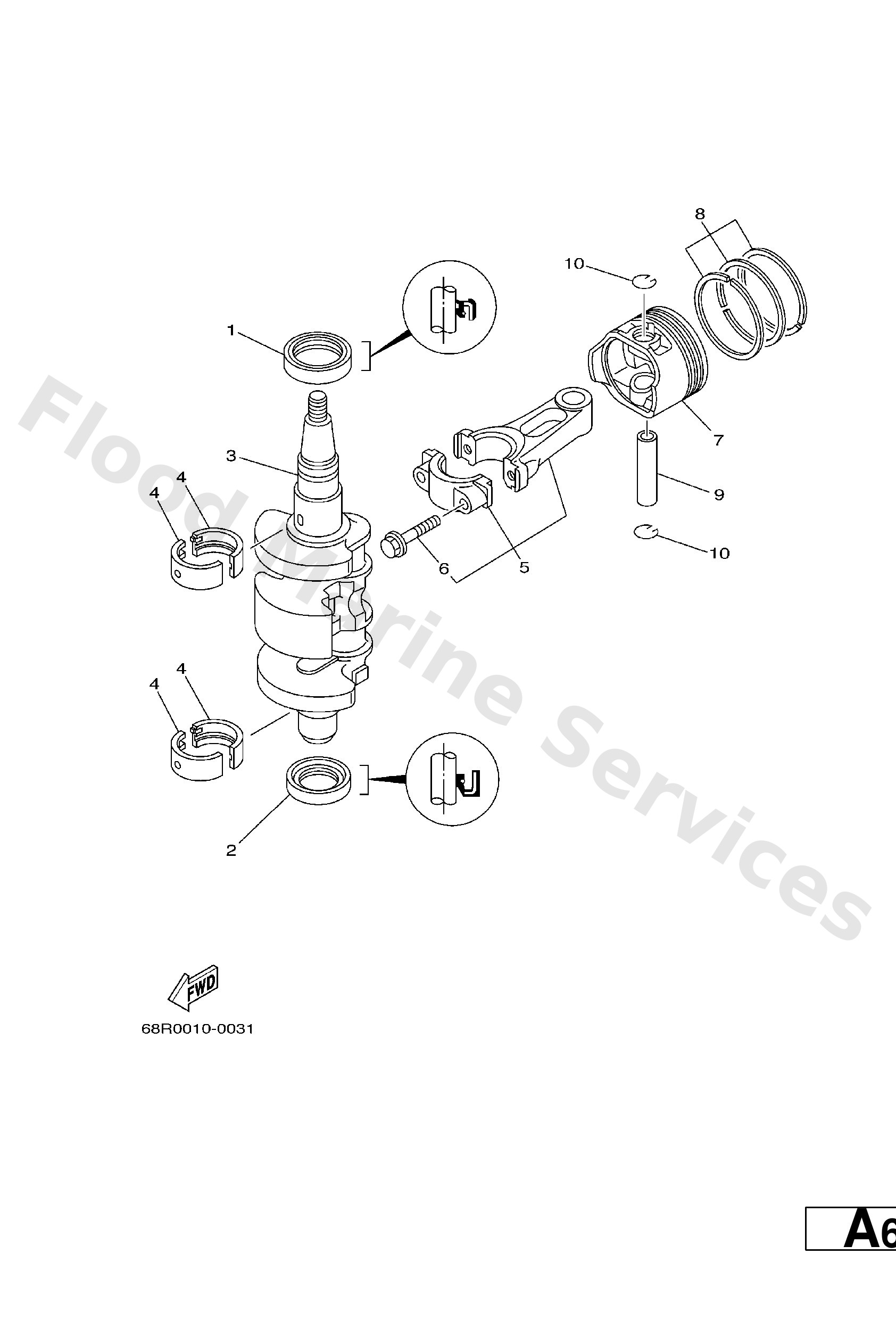

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
93102−30M22
Oil seal (6g8)
Loading…
↗
2
93101−25M69
Oil seal
Loading…
↗
3
68T−11411−00
3−
Loading…
↗
4
68T−11416−00
UR BROWN
Plane bearing, crankshaft 1
Loading…
↗
4
68T−11416−10
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
4
68T−11416−20
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
5
68T−11650−00
Connecting rod kit
Loading…
↗
6
67D−11654−00
Bolt, connecting rod
Loading…
↗
7
68T−11631−00−96
Piston (std)
Loading…
↗
7
68T−11635−00
AP
Piston (0.25mm o/s)
Loading…
↗
7
68T−11636−00
AP
Piston (0.50mm o/s)
Loading…
↗
8
68T−11603−01
Piston ring set (std)
Loading…
↗
8
68T−11604−01
AP
Piston ring set (0.25mm o/s)
Loading…
↗
8
68T−11605−01
AP
Piston ring set (0.50mm o/s)
Loading…
↗
9
68T−11633−00
Pin, piston
Loading…
↗
10
93450−15023
Circlip 131116340000
Loading…
↗
