FT9.9DMH (2002)
CRANKSHAFT. PISTON

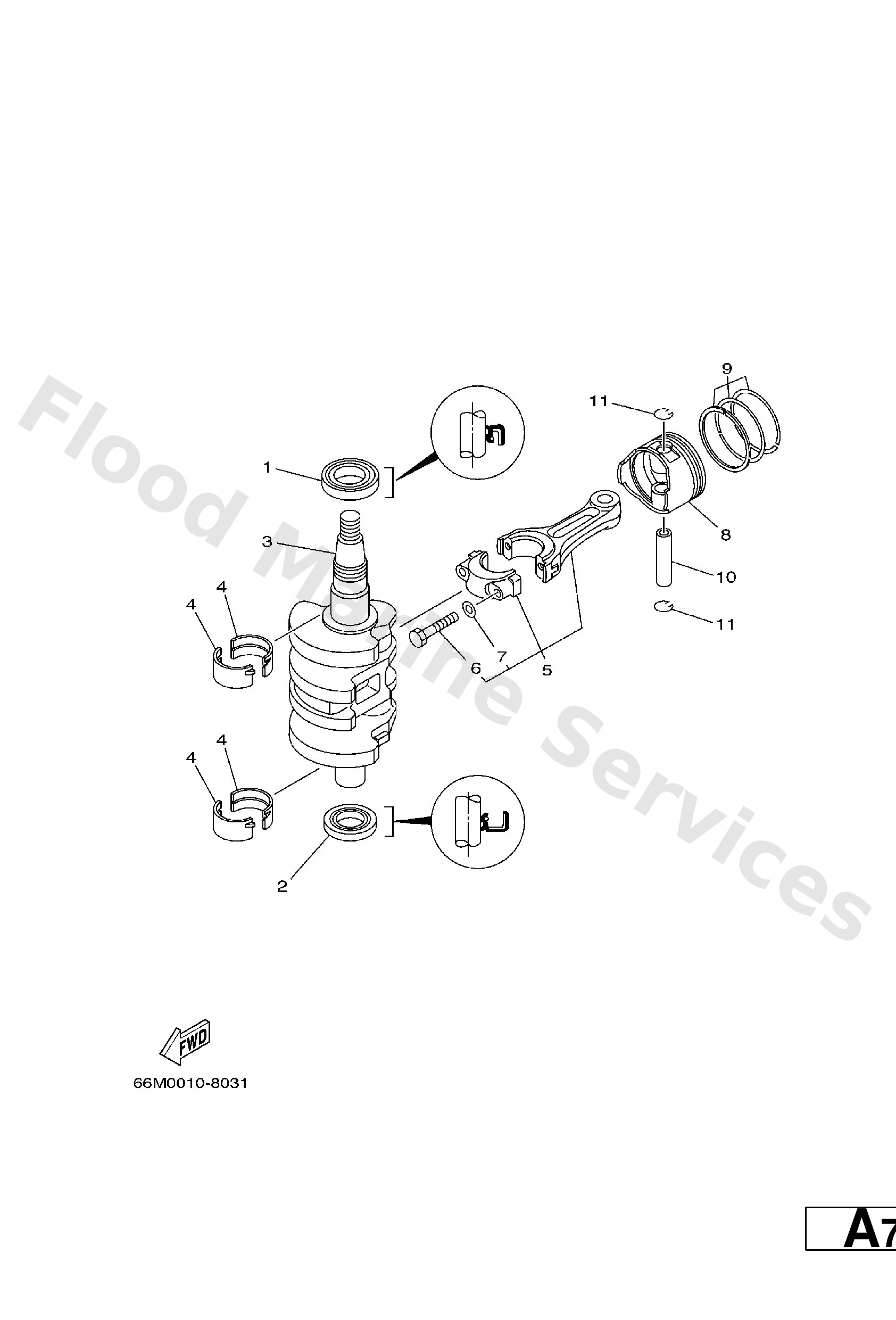

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
93102−35M51
Oil seal
Loading…
↗
2
93102−25M52
Oil seal
Loading…
↗
3
66M−11411−00
Crankshaft
Loading…
↗
4
66M−11416−00
UR BROWN
Plane bearing, crankshaft 1
Loading…
↗
4
66M−11416−10
UR BLACK
Plane bearing, crankshaft 1
Loading…
↗
4
66M−11416−20
UR BLUE
Plane bearing, crankshaft 1
Loading…
↗
5
66M−11650−00
Connecting rod kit
Loading…
↗
6
66M−11654−00
Bolt, connecting rod
Loading…
↗
7
90201−07M01
Washer, plate
Loading…
↗
8
66M−11631−00−96
Piston (std)
Loading…
↗
8
66M−11635−00
AP
Piston (0.25mm o/s)
Loading…
↗
8
66M−11636−00
AP
3−
Loading…
↗
9
66M−11603−00
Piston ring set (std)
Loading…
↗
9
66M−11604−00
AP
Piston ring set (0.25mm o/s)
Loading…
↗
9
66M−11605−00
AP
Piston ring set (0.50mm o/s)
Loading…
↗
10
634−11633−00
Pin, piston
Loading…
↗
11
93450−15023
Circlip 131116340000
Loading…
↗
