L250AETO (2003)
CRANKSHAFT. PISTON

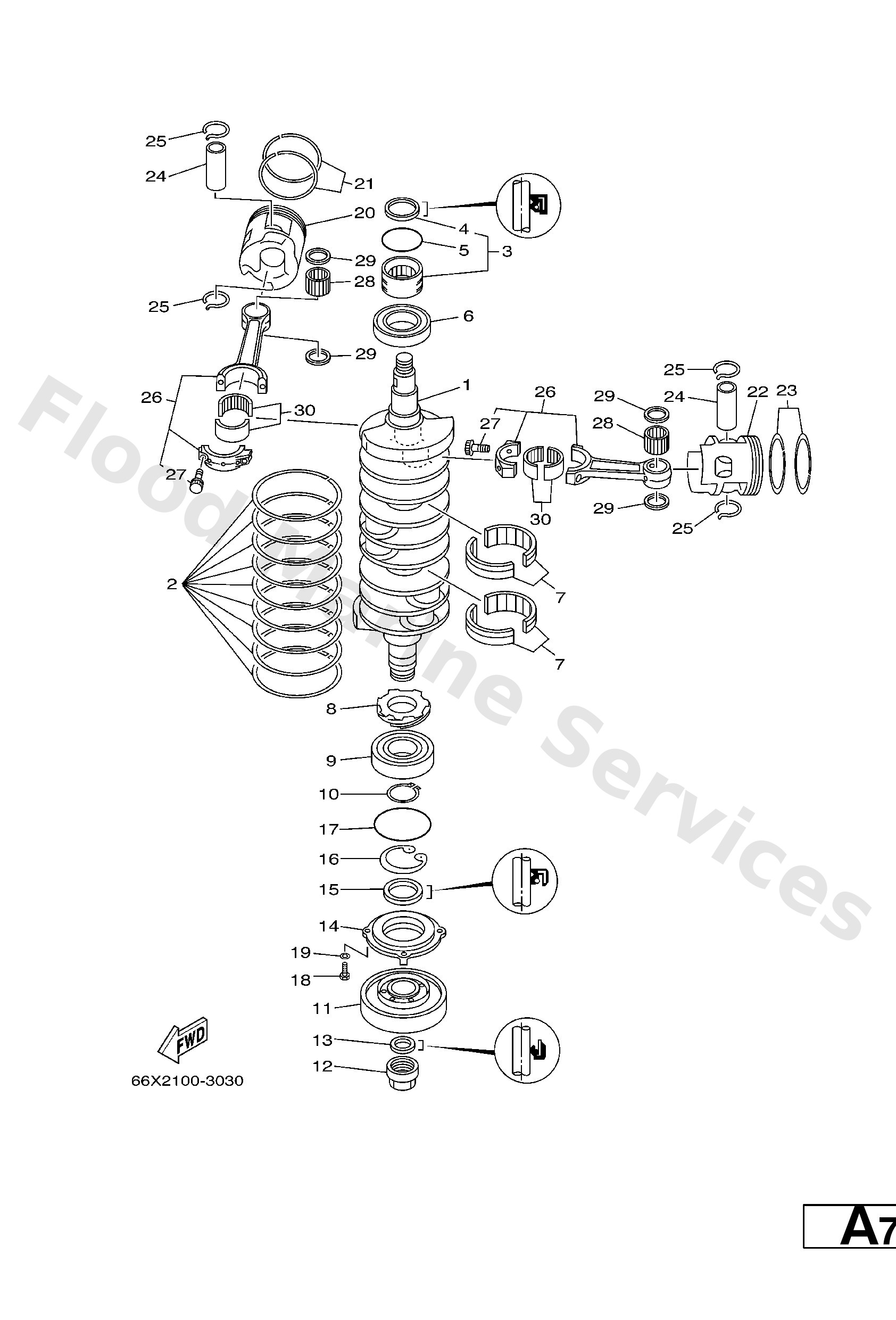

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
61A−11411−00
Crankshaft
Loading…
↗
2
61A−11447−00
Seal, crank
Loading…
↗
3
93311−940V0
Bearing, cylindrical(61a)
Loading…
↗
4
93102−40M38
Oil seal(61a)
Loading…
↗
5
93210−54M54
O-ring (6g1)
Loading…
↗
6
93306−209U1
Bearing(61a)
Loading…
↗
7
93310−959U0
Bearing, cylindrical(61a)
Loading…
↗
8
61A−11536−00
Gear, drive
Loading…
↗
9
93306−308U0
Bearing(61a)
Loading…
↗
10
93410−40M03
Circlip(n02)
Loading…
↗
11
61A−11586−01
Pulley, crankshaft balance
Loading…
↗
12
61A−11555−01
Nut, crankshaft 1
Loading…
↗
13
93104−22M07
Oil seal(61a)
Loading…
↗
14
61A−15359−00−94
Housing, oil seal
Loading…
↗
15
93102−40M36
Oil seal
Loading…
↗
16
93420−61M07
Circlip(61a)
Loading…
↗
17
93210−81MA6
O-ring(61a)
Loading…
↗
18
97095−06020
Bolt(7u8)
Loading…
↗
19
92995−06100
Washer(6a1)
Loading…
↗
20
69L−11631−00−85
Piston (std)
Loading…
↗
20
69L−11636−00
AP
Piston (0.50mm o/s)
Loading…
↗
20
69L−11635−00
AP
Piston (0.25mm o/s)
Loading…
↗
21
64D−11603−01
Piston ring set (std)
Loading…
↗
21
64D−11604−01
AP
Piston ring set (0.25mm o/s)
Loading…
↗
21
64D−11605−01
AP
Piston ring set (0.50mm o/s)
Loading…
↗
22
69L−11642−00−85
Piston 2 (std)
Loading…
↗
22
69L−11645−00
AP
Piston 2 (0.25mm o/s)
Loading…
↗
22
69L−11646−00
AP
Piston 2 (0.50mm o/s)
Loading…
↗
24
61A−11633−02
Pin, piston
Loading…
↗
25
61A−11634−00
Clip, piston pin
Loading…
↗
26
61A−11650−00
Connecting Rod assembly
Loading…
↗
27
90109−09001
Bolt
Loading…
↗
28
93310−326V4
Bearing, cylindrical(61a)
Loading…
↗
29
90201−26M03
Washer, plate(61a)
Loading…
↗
30
93310−840V8
Bearing
Loading…
↗
