Z175GETO (2002)
CRANKSHAFT. PISTON

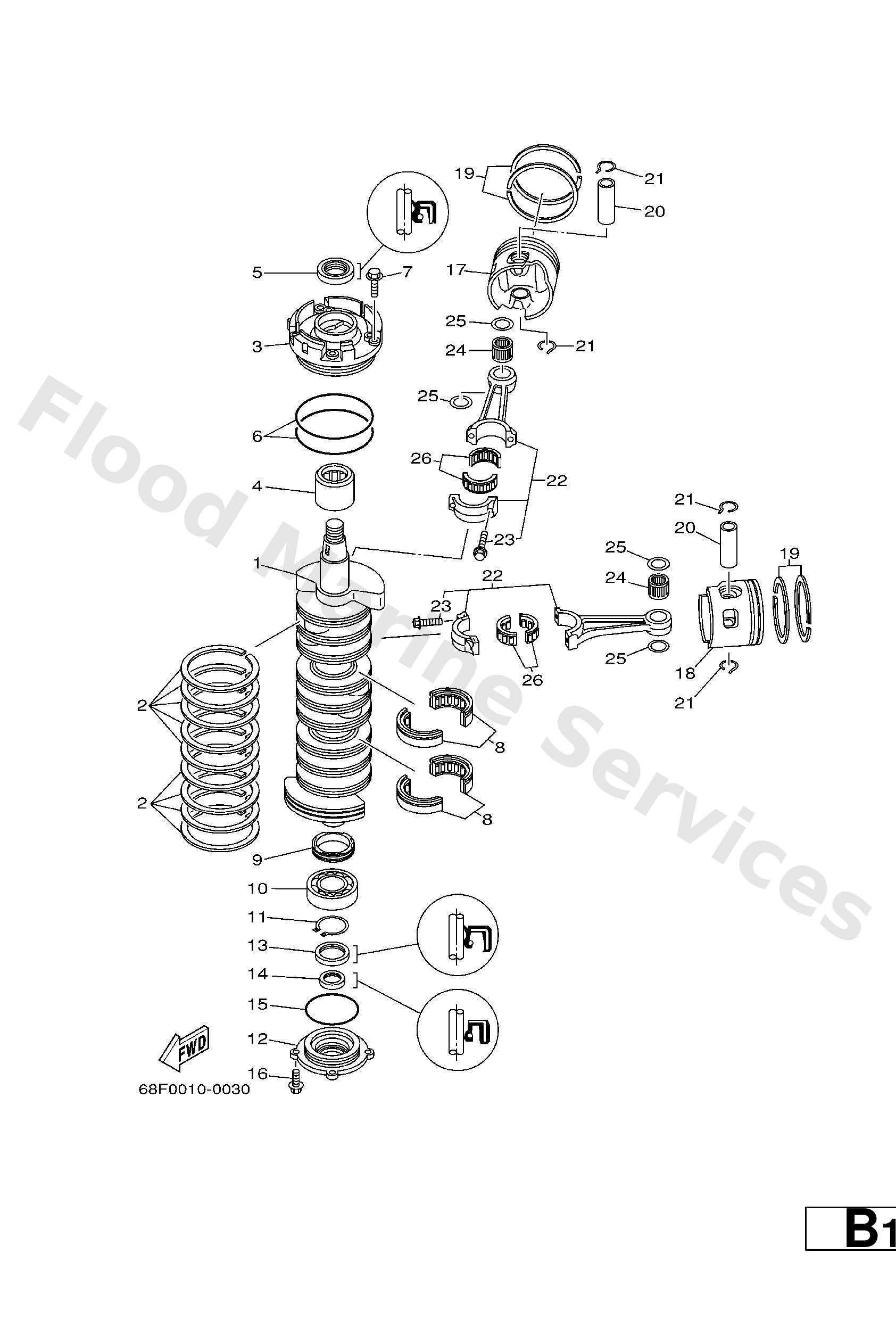

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
68F1141101
Crankshaft
Loading…
↗
2
6E5--11447--00
Seal, ring
Loading…
↗
3
68F151630094
Housing, bearing 1
Loading…
↗
4
93311--940U3
Brg,cyl-cal roller 36g (6e5)
Loading…
↗
5
93102--40M14
Oil seal(61a)
Loading…
↗
6
93211--04001
O-ring
Loading…
↗
7
90119--06MA3
Bolt, with washer
Loading…
↗
8
93310--954U1
Bearing, cylindrical(64c)
Loading…
↗
9
6R3--11536--00
Gear, drive
Loading…
↗
10
93306--208U0
Brg,r-b 6208 80mm 345g (6e5)
Loading…
↗
11
93410--40M03
Circlip(n02)
Loading…
↗
12
6G5--15359--00--94
Housing, oil seal
Loading…
↗
13
9310235M61
Oil seal
Loading…
↗
14
93101--22M15
Oil seal (6e5)
Loading…
↗
15
93210--74M35
O-ring (6e5)
Loading…
↗
16
90119--06MA2
Bolt, with washer
Loading…
↗
17
68F116310185
Piston (std)
Loading…
↗
17
68F1163601
AP
Piston (0.50mm o/s)
Loading…
↗
17
68F1163501
AP
Piston (0.25mm o/s)
Loading…
↗
18
68F116420185
Piston 2 (std)
Loading…
↗
18
68F1164501
AP
Piston 2 (0.25mm o/s)
Loading…
↗
18
68F1164601
AP
Piston 2 (0.50mm o/s)
Loading…
↗
19
68F1160301
Piston ring set (std)
Loading…
↗
19
68F1160401
AP
Piston ring set (0.25mm o/s)
Loading…
↗
19
68F1160501
AP
Piston ring set (0.50mm o/s)
Loading…
↗
20
6R5--11633--10
Pin, piston
Loading…
↗
21
6R5--11634--10
Clip, piston pin
Loading…
↗
22
6R5--11650--10
Connecting kit
Loading…
↗
22
68L1165000
Connecting rod assembly
Loading…
↗
23
90109--08022
Bolt
Loading…
↗
24
93310--323V6
Bearing
Loading…
↗
25
90201--23M01
Washer, plate(6g6)
Loading…
↗
26
93310--836U0
Bearing, cylindrical(61u)
Loading…
↗
