Z200NETO (2003)
CRANKSHAFT. PISTON

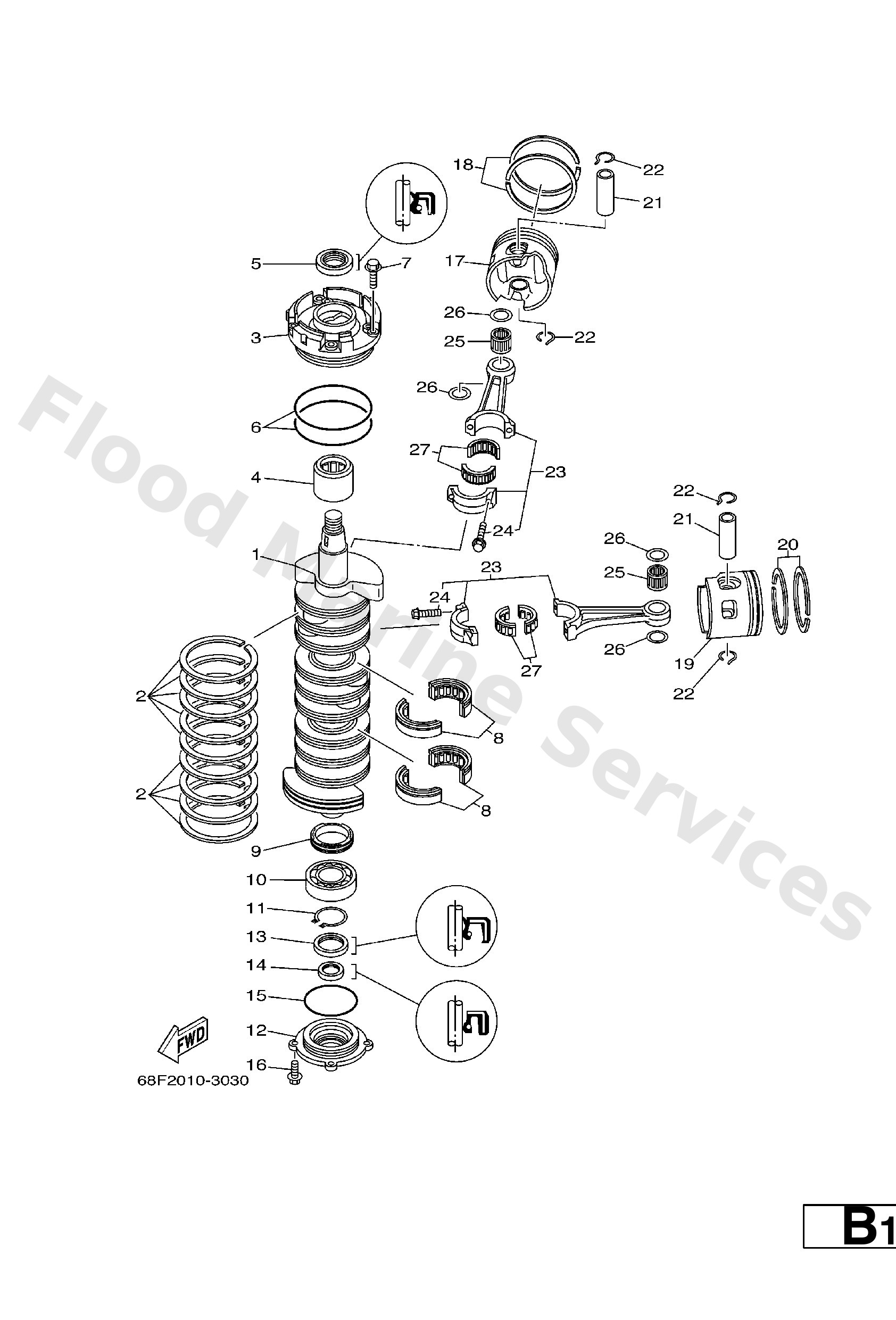

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
68F−11411−01
Crankshaft
Loading…
↗
2
6E5−11447−00
Seal, ring
Loading…
↗
3
68F−15163−00−94
Housing, bearing 1
Loading…
↗
4
93311−940U3
Brg,cyl-cal roller 36g (6e5)
Loading…
↗
5
93102−40M14
Oil seal(61a)
Loading…
↗
6
93211−04001
O-ring
Loading…
↗
7
90119−06MA3
Bolt, with washer
Loading…
↗
8
93310−954U1
Bearing, cylindrical(64c)
Loading…
↗
9
6R3−11536−00
Gear, drive
Loading…
↗
10
93306−208U0
Brg,r-b 6208 80mm 345g (6e5)
Loading…
↗
11
93410−40M03
Circlip(n02)
Loading…
↗
12
6G5−15359−00−94
Housing, oil seal
Loading…
↗
13
93102−35M61
Oil seal
Loading…
↗
14
93101−22M15
Oil seal (6e5)
Loading…
↗
15
93210−74M35
O-ring (6e5)
Loading…
↗
16
90119−06MA2
Bolt, with washer
Loading…
↗
17
68F−11636−01
AP
Piston (0.50mm o/s)
Loading…
↗
17
68F−11631−01−85
Piston (std)
Loading…
↗
17
68F−11635−01
AP
Piston (0.25mm o/s)
Loading…
↗
18
68F−11603−01
Piston ring set (std)
Loading…
↗
18
68F−11604−01
AP
Piston ring set (0.25mm o/s)
Loading…
↗
18
68F−11605−01
AP
Piston ring set (0.50mm o/s)
Loading…
↗
19
68F−11642−01−85
Piston 2 (std)
Loading…
↗
19
68F−11645−01
AP
Piston 2 (0.25mm o/s)
Loading…
↗
19
68F−11646−01
AP
Piston 2 (0.50mm o/s)
Loading…
↗
21
6R5−11633−10
Pin, piston
Loading…
↗
22
6R5−11634−10
Clip, piston pin
Loading…
↗
23
6R5−11650−10
Connecting kit
Loading…
↗
23
68L−11650−00
Connecting rod assembly
Loading…
↗
24
90109−08022
Bolt
Loading…
↗
25
93310−323V6
Bearing
Loading…
↗
26
90201−23M01
Washer, plate(6g6)
Loading…
↗
27
93310−836U0
Bearing, cylindrical(61u)
Loading…
↗
