25NMHO (2013)
CYLINDER & CRANKCASE

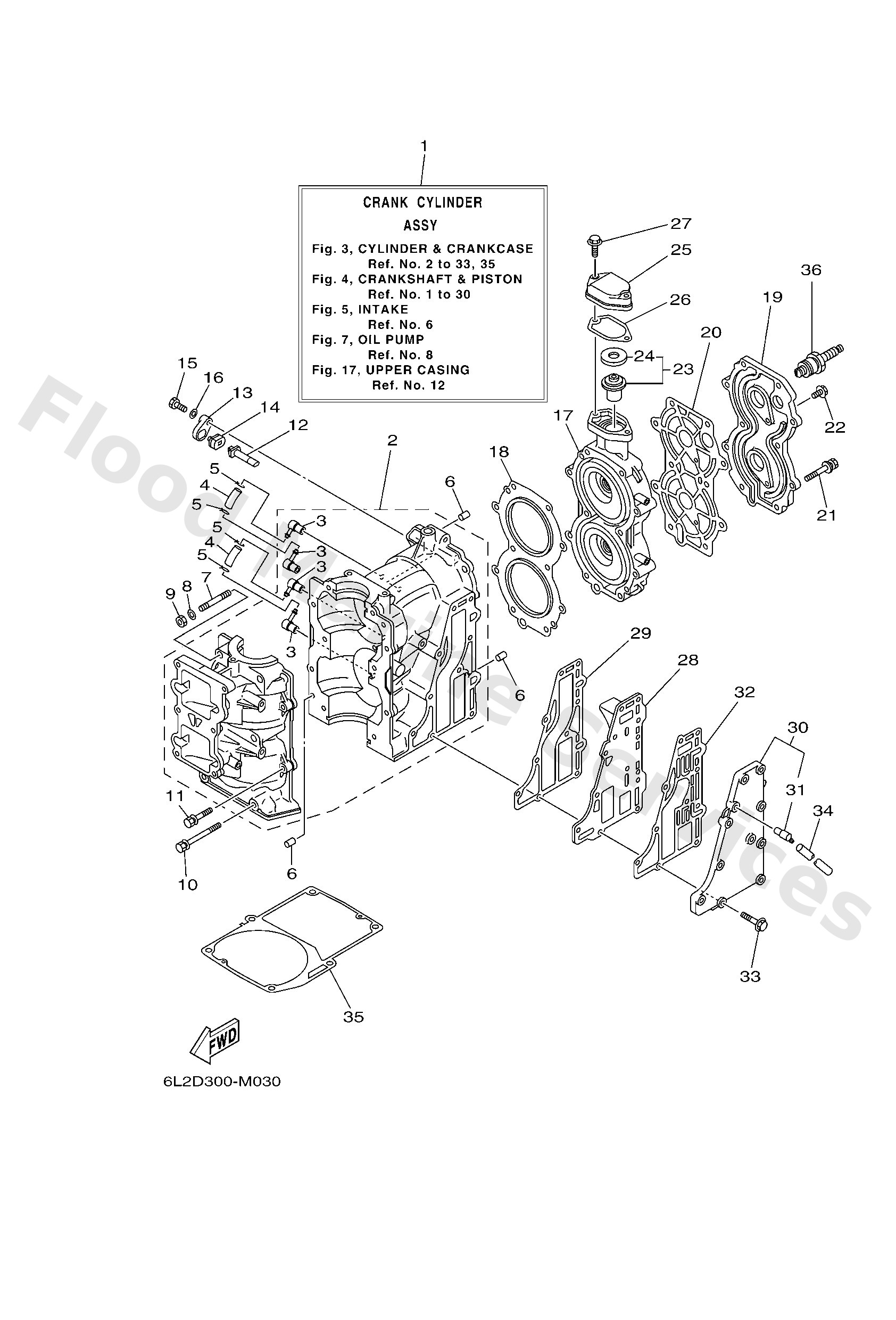

Diagram: CYLINDER & CRANKCASE
Parts List
Reference
Description
Price
1
6L2W0090121S
O/I
Crank Cylinder assembly
Loading…
↗
2
6L21510010
O/I
Crankcase assembly
Loading…
↗
3
6E51137201
Nipple, hose
Loading…
↗
4
9044507M15
Hose (l390)
Loading…
↗
5
9046706016
Clip (655)
Loading…
↗
6
9360412M07
Pin, dowel (688)
Loading…
↗
7
9561708645
Bolt, stud(6l2)
Loading…
↗
8
9020108086
Washer (1t1)
Loading…
↗
9
9533308600
Nut(6l2)
Loading…
↗
10
9011908M65
Bolt, with washer
Loading…
↗
11
9011906M14
Bolt, with washer (677)
Loading…
↗
12
6J81132500
Anode
Loading…
↗
13
6H3113270094
Cover, anode
Loading…
↗
14
6H31132800
Grommet, anode
Loading…
↗
15
9701306016
Bolt, hexagon deep recess
Loading…
↗
16
9290306600
Washer, plain (646)
Loading…
↗
17
6L211111011S
Head, cylinder 1
Loading…
↗
18
6L211181A3
Gasket, cylinder head 1
Loading…
↗
19
6L211191001S
Cover, cylinder head 1
Loading…
↗
20
6L211193A1
Gasket, head cover 1
Loading…
↗
21
9011908M91
Bolt, with washer
Loading…
↗
22
9011906023
Bolt, with washer
Loading…
↗
23
6E51241130
Thermostat
Loading…
↗
24
6881241200
Seal, thermostat
Loading…
↗
25
6H412413001S
Cover, thermostat
Loading…
↗
26
6J812414A0
Gasket, cover
Loading…
↗
27
9011906MA3
Bolt, with washer
Loading…
↗
28
6L241111001S
Inner cover, exhaust
Loading…
↗
29
6L241112A3
Gasket, exhaust inner cover
Loading…
↗
30
6L241113001S
Outer cover, exhaust
Loading…
↗
31
6761137200
Nipple, hose
Loading…
↗
32
6L241114A1
Gasket, exhaust outer cover
Loading…
↗
33
9011906MA4
Bolt, with washer
Loading…
↗
34
9044510M40
Hose (l400)
Loading…
↗
35
6L245113A2
Gasket, upper casing
Loading…
↗
36
9470200271
Plug, spark (br7hs-10)
Loading…
↗
