3AMH (2006)
CYLINDER & CRANKCASE

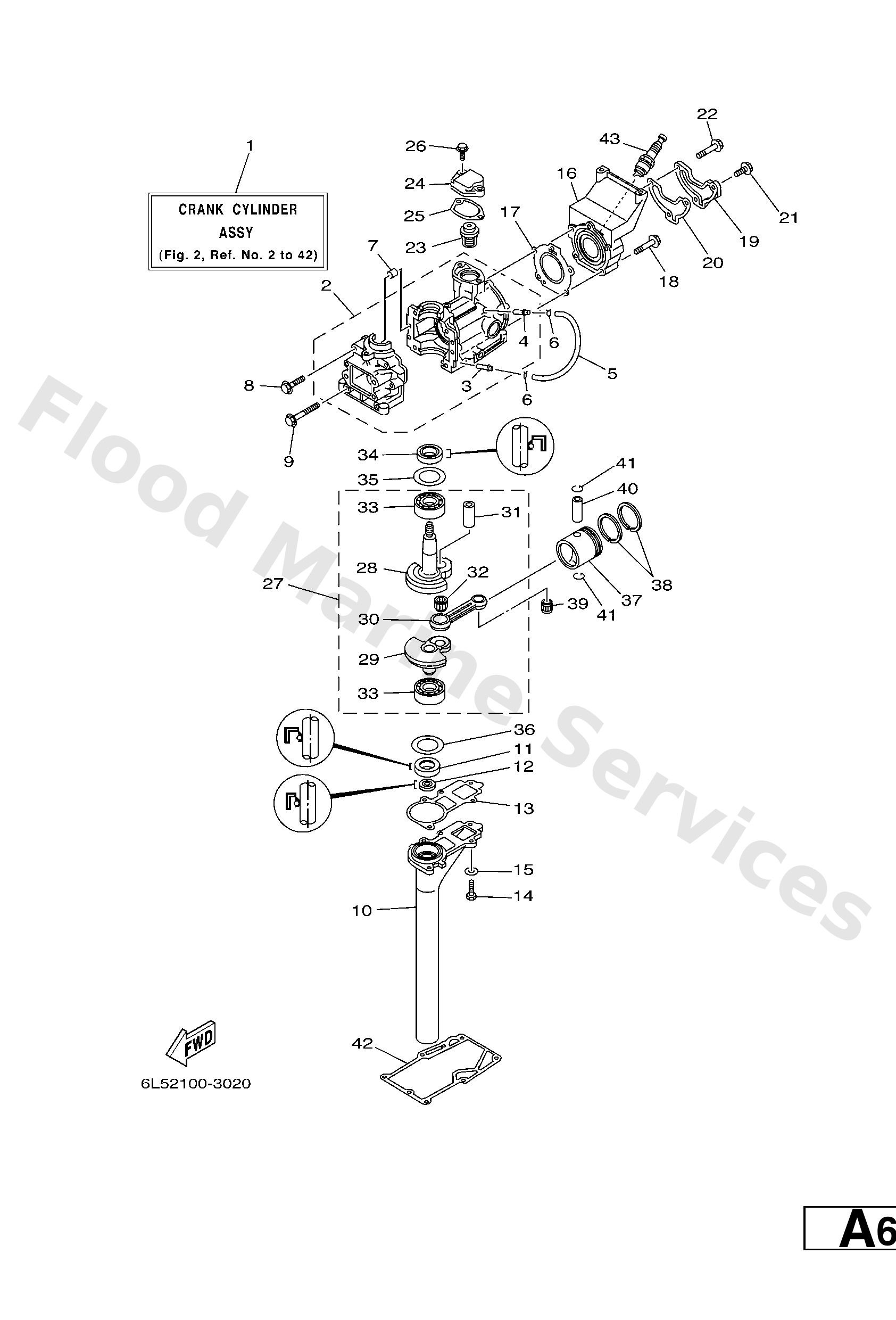

Diagram: CYLINDER & CRANKCASE
Parts List
Reference
Description
Price
1
6L5W0090011S
Crank cylinder assembly
Loading…
↗
2
6L515100001S
Crankcase assembly
Loading…
↗
3
6241448500
Pipe, joint
Loading…
↗
4
6E51137201
Nipple, hose
Loading…
↗
5
9044507M29
Hose (l200)
Loading…
↗
6
9046706016
Clip (655)
Loading…
↗
7
9360612019
Pin, dowel (614)
Loading…
↗
8
9010506M16
Bolt (6e0)
Loading…
↗
9
9010506M40
Bolt, washer based(6l5)
Loading…
↗
10
6L5153960094
Housing, oil seal
Loading…
↗
11
9310120M29
Oil seal(6j1)
Loading…
↗
12
9310109M42
Oil seal(6l5)
Loading…
↗
13
6L515369A0
Gasket, oil seal housing
Loading…
↗
14
9709506020
Bolt(7u8)
Loading…
↗
15
9299506600
Washer, plain (646)
Loading…
↗
16
6L511111001S
Head, cylinder 1
Loading…
↗
17
6L511181A2
Gasket, cylinder head 1
Loading…
↗
18
9011906047
Bolt, with washer
Loading…
↗
19
6L511191001S
Cover, cylinder head 1
Loading…
↗
20
6L511193A1
Gasket, head cover
Loading…
↗
21
9011906MA2
Bolt, with washer
Loading…
↗
22
9011906027
Bolt, with washer
Loading…
↗
23
6E51241102
Thermostat
Loading…
↗
24
6L512413001S
Cover, thermostat
Loading…
↗
25
6L512414A1
Gasket, cover
Loading…
↗
27
6L51140000
Crankshaft assembly
Loading…
↗
28
6L51141200
Crank 1
Loading…
↗
29
6L51142200
Crank 2
Loading…
↗
30
6L51165100
Rod, connecting
Loading…
↗
31
6L51168100
Pin, crank 1
Loading…
↗
32
93310416N7
Brg,needle
Loading…
↗
33
93306204U0
Bearing(6e0)
Loading…
↗
34
9310220M06
Oil seal(6j1)
Loading…
↗
35
9020132M00
Washer, plate(6l5)
Loading…
↗
36
9020132M01
Washer, plate(6l5)
Loading…
↗
37
6L5116310096
Piston (std)
Loading…
↗
37
6L51163500
AP
Piston (0.25mm o/s)
Loading…
↗
37
6L51163600
AP
Piston (0.50mm o/s)
Loading…
↗
38
6L51161000
Piston ring set (std)
Loading…
↗
38
6L51161010
AP
Piston ring set (0.25mm o/s)
Loading…
↗
38
6L51161020
AP
Piston ring set (0.50mm o/s)
Loading…
↗
39
93310112U0
Bearing, cylindrical(6l5)
Loading…
↗
40
6L51163300
Pin, piston
Loading…
↗
41
9345013022
Circlip 132116340000
Loading…
↗
42
6L545113A1
Gasket, upper casing
Loading…
↗
43
9470200274
Plug, spark (br6hs-10)
Loading…
↗
