40XMH (2010)
CYLINDER & CRANKCASE

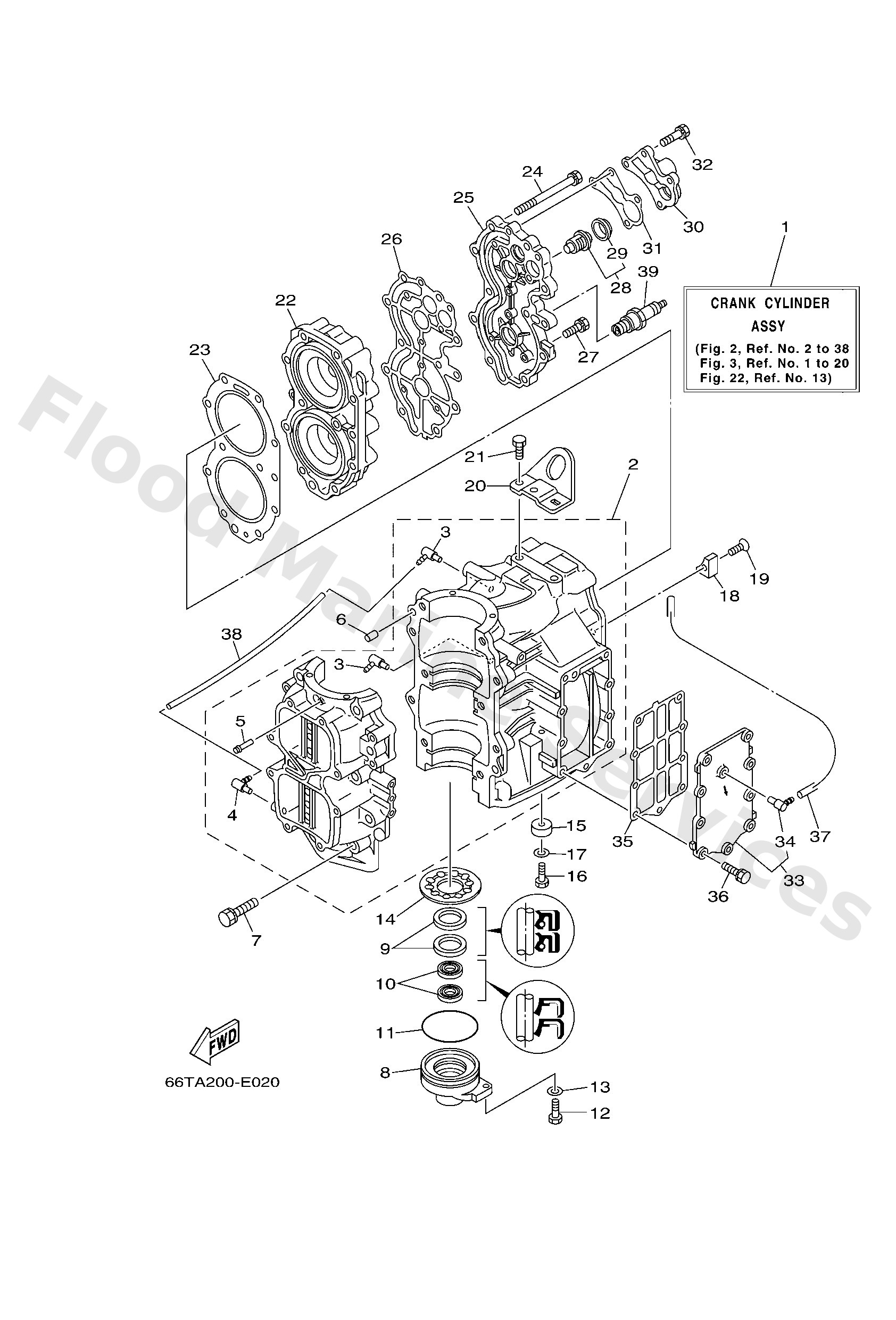

Diagram: CYLINDER & CRANKCASE
Parts List
Reference
Description
Price
1
66TW0090021S
Crank cylinder assembly
Loading…
↗
2
66T15100021S
Crankcase assembly
Loading…
↗
3
6E51355201
Nozzle
Loading…
↗
5
6241448500
Pipe, joint
Loading…
↗
6
9360812063
Pin, dowel (626)
Loading…
↗
7
9011910005
Bolt, with washer
Loading…
↗
8
66T153960194
Housing, oil seal
Loading…
↗
9
9310230M56
Oil seal
Loading…
↗
10
9310116001
Oil seal
Loading…
↗
11
9321065M50
O-ring
Loading…
↗
12
9709506020
Bolt(7u8)
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
66T1156500
Washer, bearing cover
Loading…
↗
15
6764525100
Anode
Loading…
↗
18
6761132500
Anode
Loading…
↗
19
9014106M00
Screw, countersunk
Loading…
↗
20
66T1111900
Hanger, engine
Loading…
↗
21
9010108002
Bolt
Loading…
↗
22
66T11111011S
Head, cylinder 1
Loading…
↗
23
66T11181A3
Gasket, cylinder head 1
Loading…
↗
24
9011908MA5
Bolt, with washer
Loading…
↗
25
66T11191001S
Cover, cylinder head 1
Loading…
↗
26
66T11193A3
Gasket, head cover 1
Loading…
↗
27
9011906MA3
Bolt, with washer
Loading…
↗
28
6E51241102
Thermostat
Loading…
↗
29
6E51241200
Seal, thermostat
Loading…
↗
30
67612413001S
Cover, thermostat
Loading…
↗
31
67612414A1
Gasket, cover
Loading…
↗
32
9011906MA5
Bolt, with washer
Loading…
↗
33
66T41113001S
Outer cover, exhaust
Loading…
↗
34
6761137200
Nipple, hose
Loading…
↗
35
66T41114A0
Gasket, exhaust outer cover
Loading…
↗
37
9044509M75
Hose (l1500)
Loading…
↗
38
9044507M08
Hose (l390)
Loading…
↗
39
9470200040
Plug, spark (b7hs)
Loading…
↗
39
9470200272
FOR CAR(CE),CHN
Plug, spark (br7hs)
Loading…
↗
