50GETO (2005)
CYLINDER & CRANKCASE

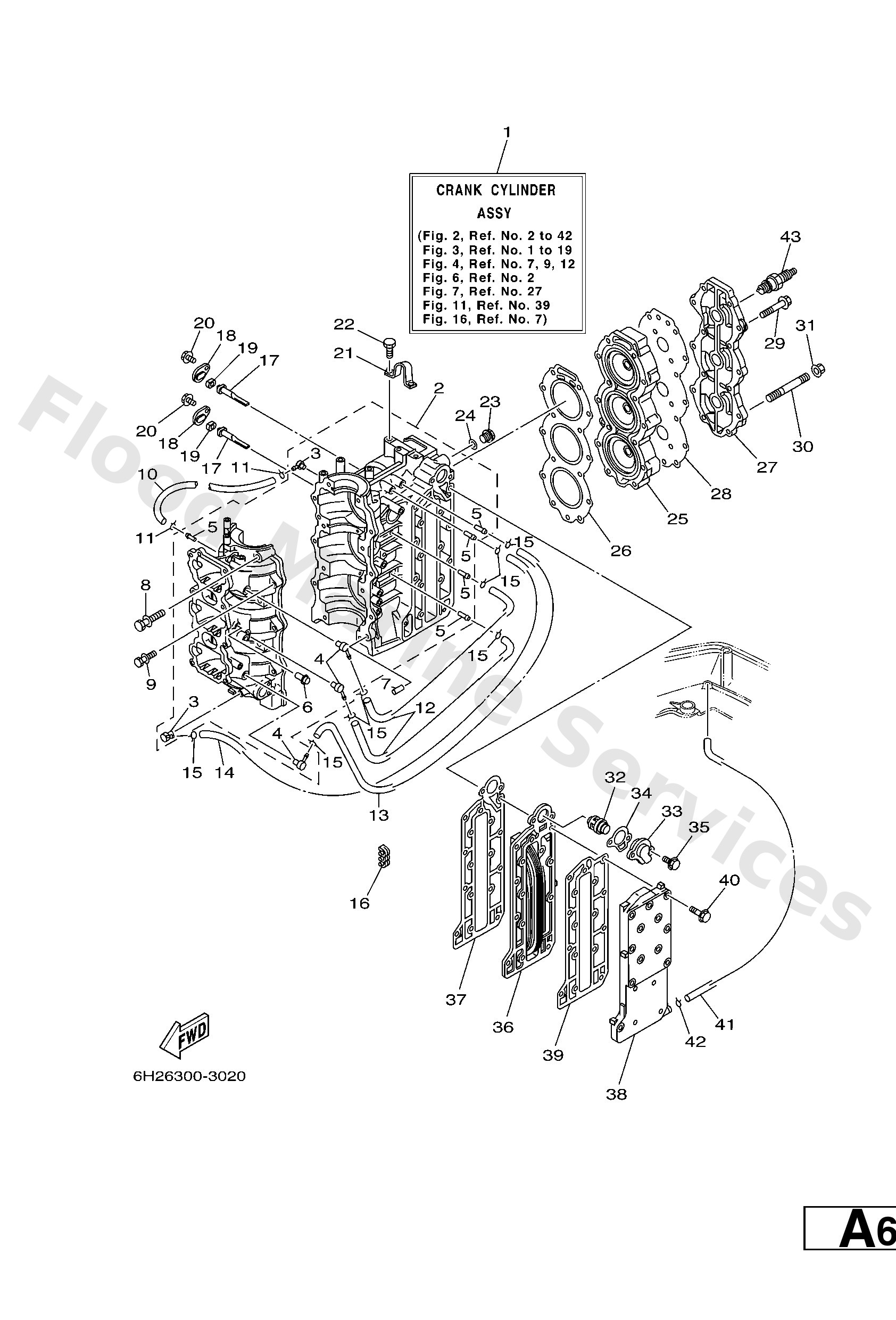

Diagram: CYLINDER & CRANKCASE
Parts List
Reference
Description
Price
1
62FW0090121S
Crank Cylinder assembly
Loading…
↗
1
6H3W0090441S
Crank cylinder assembly
Loading…
↗
2
62F15100121S
Crankcase assembly
Loading…
↗
2
6H315100141S
Crankcase assembly
Loading…
↗
3
6881137001
Check valve assembly
Loading…
↗
4
6501137001
Check valve assembly
Loading…
↗
5
6241448500
Pipe, joint
Loading…
↗
6
6502437800
Pipe, joint 2
Loading…
↗
7
9360812063
Pin, dowel (626)
Loading…
↗
8
9011910005
Bolt, with washer
Loading…
↗
9
9011908M64
Bolt, with washer
Loading…
↗
10
9044507M44
Hose (l390)
Loading…
↗
11
9046706016
Clip (655)
Loading…
↗
12
9044507M02
Hose (l200)
Loading…
↗
13
9044507M45
Hose (l390)
Loading…
↗
14
9044507M82
Hose (l770)
Loading…
↗
16
9046407M05
Clamp (6g5)
Loading…
↗
17
6H31132501
Anode
Loading…
↗
18
6H311327001S
Cover, anode
Loading…
↗
19
6H31132800
Grommet, anode
Loading…
↗
20
9011906023
Bolt, with washer
Loading…
↗
21
6881111901
Hanger, engine
Loading…
↗
22
9010108002
Bolt
Loading…
↗
23
9034014M00
Plug, straight screw(62y)
Loading…
↗
24
9043014115
Gasket (663)
Loading…
↗
25
6H311111011S
Head, cylinder 1
Loading…
↗
25
62F11111001S
-
Loading…
↗
26
6H311181A1
Gasket, cylinder head 1
Loading…
↗
27
6H311191001S
Cover, cylinder head 1
Loading…
↗
28
6H311193A1
Gasket, head cover 1
Loading…
↗
29
9011908MA5
Bolt, with washer
Loading…
↗
30
9011608M69
Bolt, stud
Loading…
↗
31
9017908M34
Nut
Loading…
↗
32
6H31241111
Thermostat
Loading…
↗
33
6H312413001S
Cover, thermostat
Loading…
↗
34
6H312414A1
Gasket, cover
Loading…
↗
35
9011906MA3
Bolt, with washer
Loading…
↗
36
6H341111011S
Inner cover, exhaust
Loading…
↗
37
6H341112A0
Gasket, exhaust inner cover
Loading…
↗
38
6H341113021S
Outer cover, exhaust
Loading…
↗
39
6H341114A0
Gasket, exhaust outer cover
Loading…
↗
40
9011906MA5
Bolt, with washer
Loading…
↗
41
6632431201
Pipe 1
Loading…
↗
42
9046708004
Clip, pipe 6162435600
Loading…
↗
43
9470200247
Plug, spark (br8hs-10)
Loading…
↗
