6DMH (2007)
CYLINDER & CRANKCASE

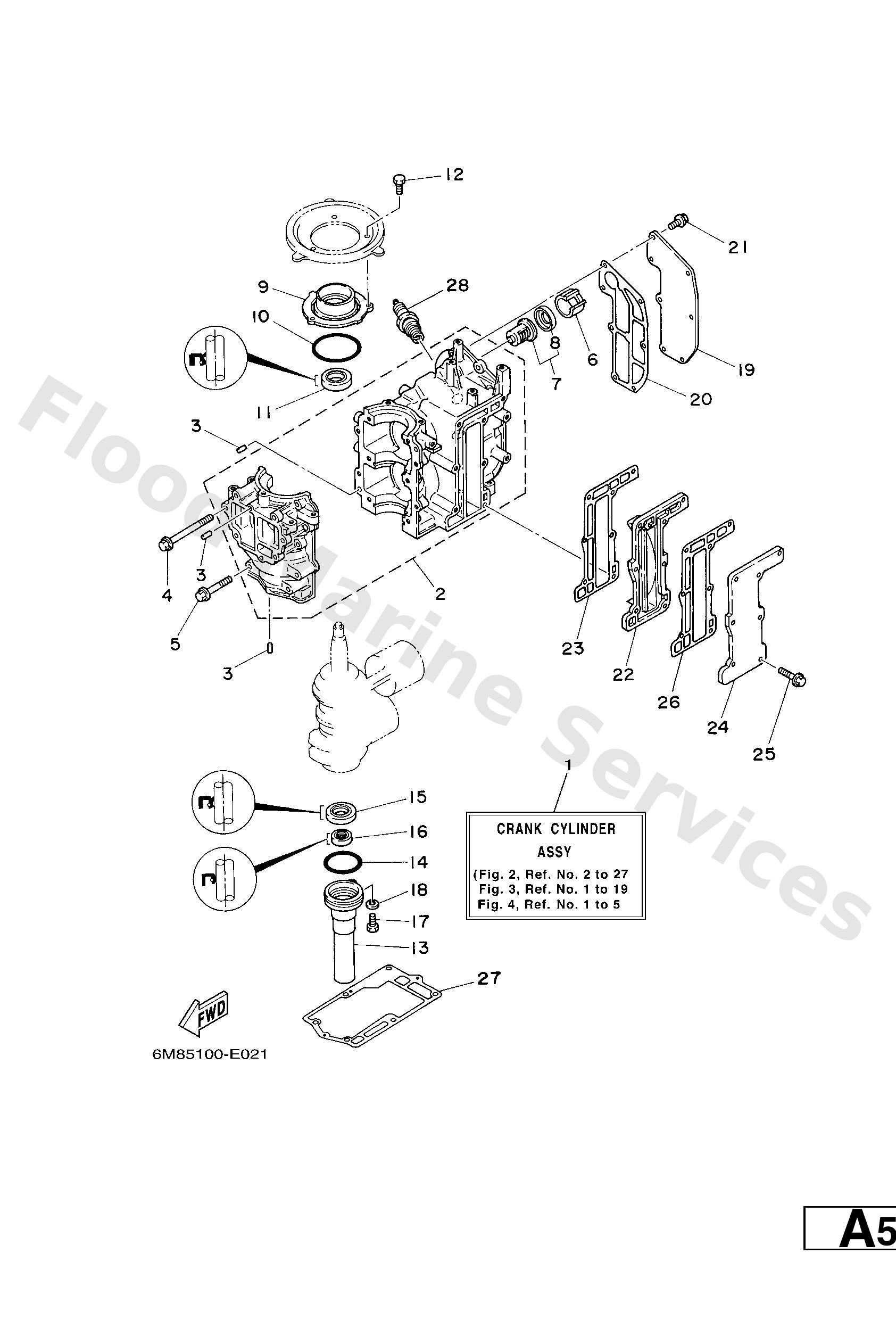

Diagram: CYLINDER & CRANKCASE
Parts List
Reference
Description
Price
1
6N0WE090011S
Crank cylinder assembly
Loading…
↗
2
6N0E5100001S
Crankcase assembly
Loading…
↗
3
9360408062
Pin,dowel (626)
Loading…
↗
4
9010506M26
Bolt (6g1)
Loading…
↗
5
9010506M25
Bolt (6g1)
Loading…
↗
6
9038722M50
Collar (6g1)
Loading…
↗
7
6E51241102
Thermostat
Loading…
↗
8
6E51241200
Seal, thermostat
Loading…
↗
9
6G1153590194
Housing, oil seal
Loading…
↗
10
9321054M54
O-ring (6g1)
Loading…
↗
11
9310220M25
Oil seal (6e0)
Loading…
↗
12
9701306016
Bolt, hexagon deep recess
Loading…
↗
13
6G115396025B
Housing, oil seal
Loading…
↗
14
9321042159
O-ring (647)
Loading…
↗
15
9310120M34
Oil seal(6j1)
Loading…
↗
16
9310112M26
Oil seal(6g1)
Loading…
↗
17
9709506016
Bolt, hexagon deep recess
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
6N0E1191001S
Cover, cylinder head 1
Loading…
↗
20
6G111193A1
Gasket, head cover 1
Loading…
↗
21
9010506039
Bolt, flange
Loading…
↗
22
6N0G1111001S
Inner cover, exhaust
Loading…
↗
23
6G141112A1
Gasket, exhaust inner cover
Loading…
↗
24
6G141113011S
Outer cover, exhaust
Loading…
↗
25
9010506037
Bolt, flange
Loading…
↗
26
6G141114A0
Gasket, exhaust outer cover
Loading…
↗
27
6G145113A1
Gasket, upper casing
Loading…
↗
28
9470200271
Plug, spark (br7hs-10)
Loading…
↗
28
9470200274
Plug, spark (br6hs-10)
Loading…
↗
