75AED (2006)
CYLINDER & CRANKCASE

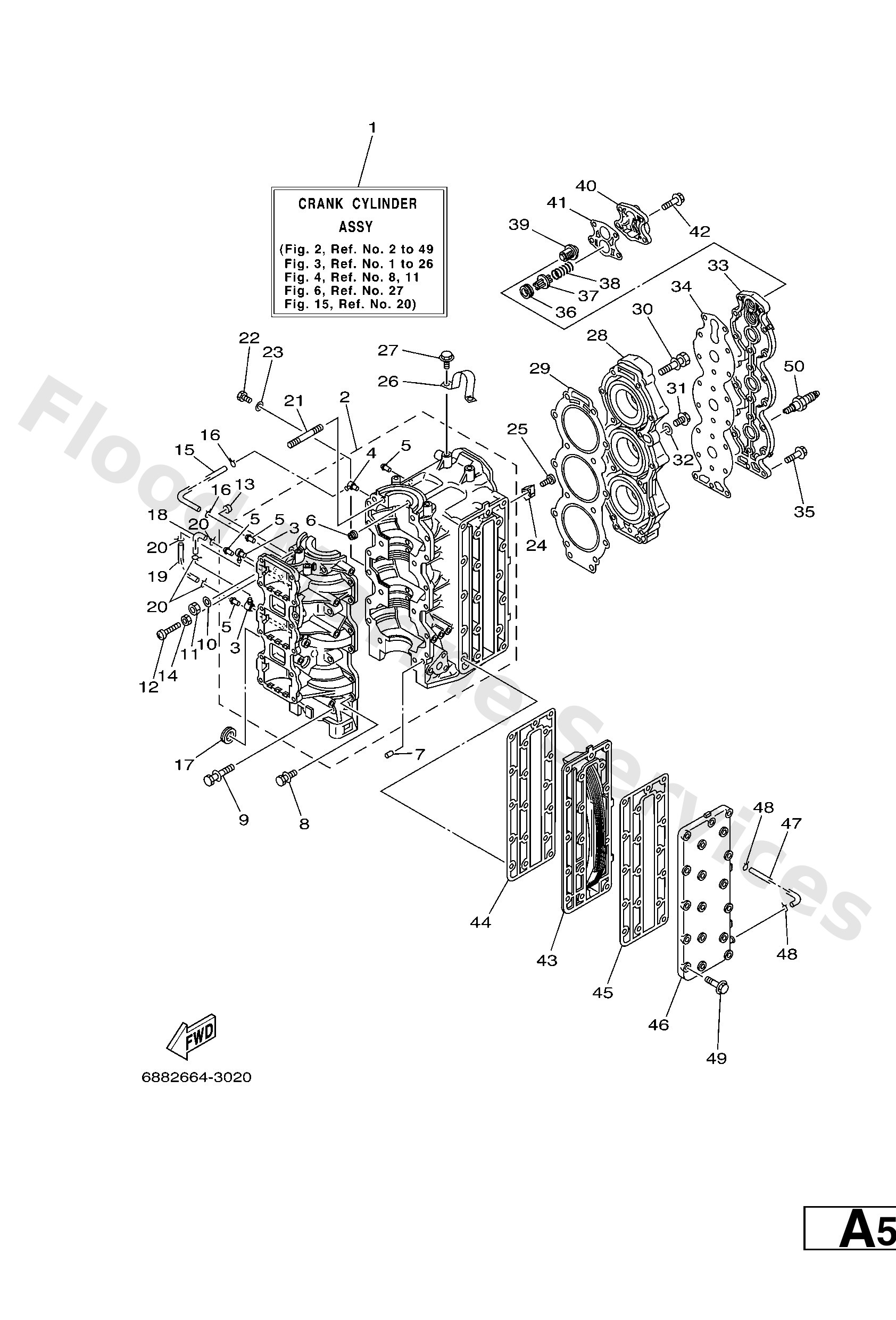

Diagram: CYLINDER & CRANKCASE
Parts List
Reference
Description
Price
1
692W0090441S
Crank cylinder assembly
Loading…
↗
2
68815100051S
Crankcase assembly
Loading…
↗
3
6881137001
Check valve assembly
Loading…
↗
4
6501137001
Check valve assembly
Loading…
↗
5
6241448500
Pipe, joint
Loading…
↗
6
6631151801
Lock, bearing
Loading…
↗
7
9360812063
Pin, dowel (626)
Loading…
↗
8
9011906M12
Bolt, with washer (697)
Loading…
↗
9
9011910005
Bolt, with washer
Loading…
↗
10
9020110008
Washer, plate
Loading…
↗
11
9531310600
Nut(3bm)
Loading…
↗
12
9015706014
Screw, pan head(697)
Loading…
↗
13
6884419400
Cap
Loading…
↗
14
9530306700
Nut
Loading…
↗
15
9044507260
Hose (l390)
Loading…
↗
16
9046706016
Clip (655)
Loading…
↗
17
9048024M04
Grommet (688)
Loading…
↗
18
9044507M00
Hose (l200)
Loading…
↗
19
9044507M23
Hose (l570)
Loading…
↗
21
9011610M06
Bolt, stud (688)
Loading…
↗
22
9709506012
Bolt(gh1)
Loading…
↗
23
9299506100
Washer(6a1)
Loading…
↗
24
6881132500
Anode
Loading…
↗
25
9878004015
Screw, flat head(ga5)
Loading…
↗
26
6881111901
Hanger, engine
Loading…
↗
27
9011908MA3
Bolt, with washer
Loading…
↗
28
68811111021S
Head, cylinder 1
Loading…
↗
29
68811181A1
Gasket, cylinder head 1
Loading…
↗
30
9011908MA8
Bolt, with washer
Loading…
↗
31
9034014M00
Plug, straight screw(62y)
Loading…
↗
32
9043014115
Gasket (663)
Loading…
↗
33
68811191001S
Cover, cylinder head 1
Loading…
↗
34
68811193A1
Gasket, head cover 1
Loading…
↗
35
9011906MA3
Bolt, with washer
Loading…
↗
36
9048020M05
Grommet (688)
Loading…
↗
37
6881241600
Valve, pressure control
Loading…
↗
38
9050116M11
Spring, compression (688)
Loading…
↗
39
6881241111
Thermostat
Loading…
↗
40
68812413001S
Cover, thermostat
Loading…
↗
41
68812414A1
Gasket, cover
Loading…
↗
42
9011906MA5
Bolt, with washer
Loading…
↗
43
68841111001S
Inner cover, exhaust
Loading…
↗
44
68841112A0
Gasket, exhaust inner cover
Loading…
↗
45
68841114A0
Gasket, exhaust outer cover
Loading…
↗
46
68841113001S
Outer cover, exhaust
Loading…
↗
47
6632431201
Pipe 1
Loading…
↗
48
9046708004
Clip, pipe 6162435600
Loading…
↗
49
9011908020
Bolt, with washer
Loading…
↗
50
9470200247
Plug, spark (br8hs-10)
Loading…
↗
