75CETO (2014)
CYLINDER & CRANKCASE

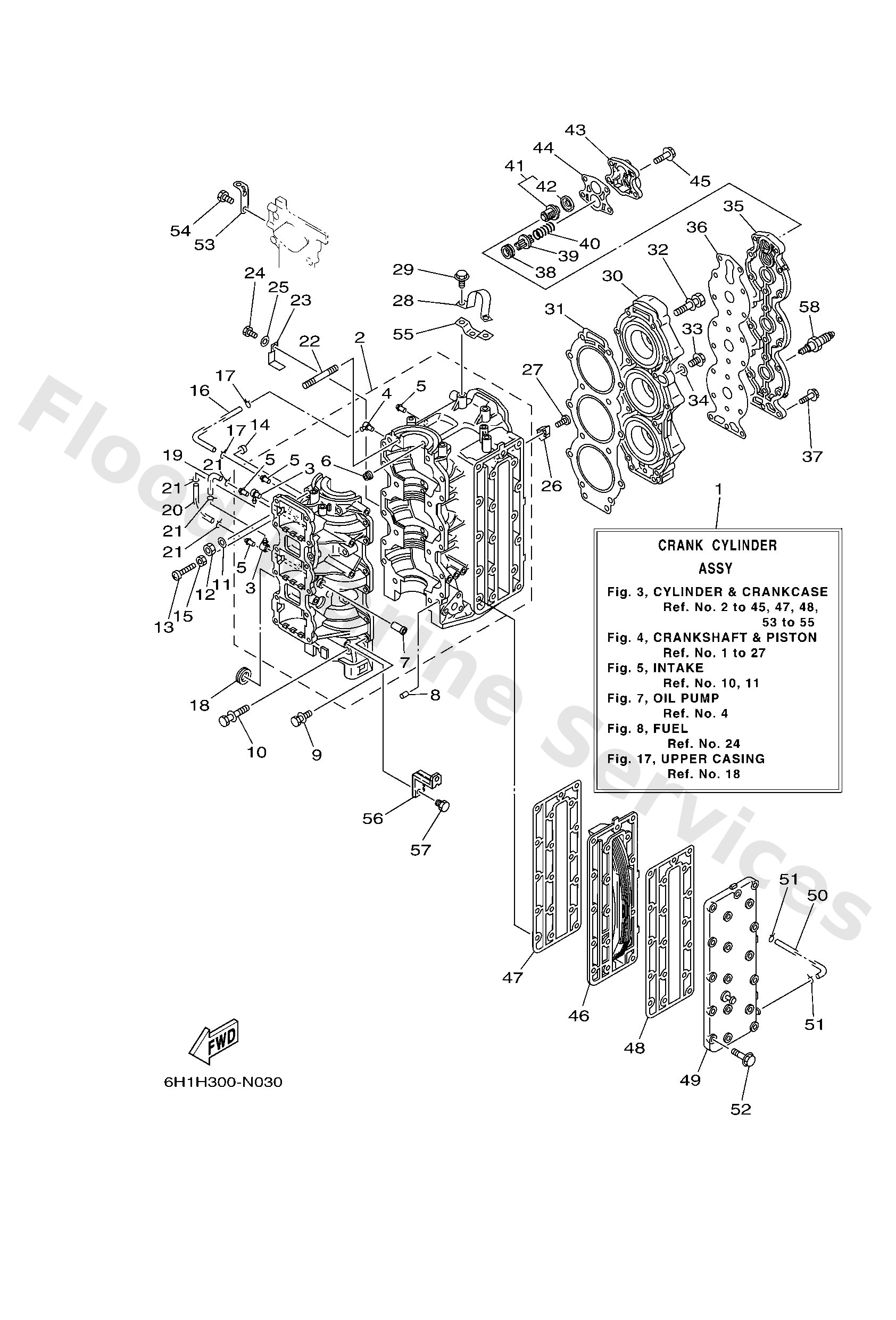

Diagram: CYLINDER & CRANKCASE
Parts List
Reference
Description
Price
1
6H1W0090451S
Crank cylinder assembly (o/i)
Loading…
↗
2
6H11510005
Crankcase assembly (o/i, prime sta
Loading…
↗
3
6881137001
Check valve assembly
Loading…
↗
4
6501137001
Check valve assembly
Loading…
↗
5
6241448500
Pipe, joint
Loading…
↗
6
6631151801
Lock, bearing
Loading…
↗
7
6502437800
Pipe, joint 2
Loading…
↗
8
9953008012
Pin, dowel(6g8)
Loading…
↗
9
9011906M12
Bolt, with washer (697)
Loading…
↗
10
9011910005
Bolt, with washer
Loading…
↗
11
9020110008
Washer, plate
Loading…
↗
12
9531310600
Nut(3bm)
Loading…
↗
13
9015706014
Screw, pan head(697)
Loading…
↗
14
6884419400
Cap
Loading…
↗
15
9530306700
Nut
Loading…
↗
16
9044507260
Hose (l390)
Loading…
↗
17
9046706016
Clip (655)
Loading…
↗
18
9048024M04
Grommet (688)
Loading…
↗
19
9044507M00
Hose (l200)
Loading…
↗
20
9044507M23
Hose (l570)
Loading…
↗
22
9011610M06
Bolt, stud (688)
Loading…
↗
23
9046512M03
Clamp, cord (688)
Loading…
↗
24
9709506014
Bolt(gj3)
Loading…
↗
25
9299506600
Washer, plain (646)
Loading…
↗
26
6881132500
Anode
Loading…
↗
27
9878004015
Screw, flat head(ga5)
Loading…
↗
28
6881111901
Hanger, engine
Loading…
↗
29
9011908MA3
Bolt, with washer
Loading…
↗
30
6H111111011S
Head, cylinder 1
Loading…
↗
31
68811181A2
Gasket, cylinder head 1
Loading…
↗
32
9011908MA8
Bolt, with washer
Loading…
↗
33
9034014M06
Plug, straight screw(62y)
Loading…
↗
34
9043014115
Gasket (663)
Loading…
↗
35
68811191001S
Cover, cylinder head 1
Loading…
↗
36
68811193A1
Gasket, head cover 1
Loading…
↗
37
9011906MA3
Bolt, with washer
Loading…
↗
38
9048020M05
Grommet (688)
Loading…
↗
39
6881241600
Valve, pressure control
Loading…
↗
40
9050116M11
Spring, compression (688)
Loading…
↗
41
6881241111
Thermostat
Loading…
↗
42
6881241200
Seal, thermostat
Loading…
↗
43
68812413001S
Cover, thermostat
Loading…
↗
44
68812414A1
Gasket, cover
Loading…
↗
45
9011906MA5
Bolt, with washer
Loading…
↗
46
68841111001S
Inner cover, exhaust
Loading…
↗
47
68841112A0
Gasket, exhaust inner cover
Loading…
↗
48
68841114A0
Gasket, exhaust outer cover
Loading…
↗
49
6H141113001S
FLUSHING KIT
Outer cover, exhaust
Loading…
↗
50
6632431201
Pipe 1
Loading…
↗
51
9046708004
Clip, pipe 6162435600
Loading…
↗
52
9011908020
Bolt, with washer
Loading…
↗
53
6H11577200
Stay 2
Loading…
↗
54
9709506012
Bolt(gh1)
Loading…
↗
55
6H11577301
Stay 3
Loading…
↗
56
6H12179600
Hinge
Loading…
↗
57
9709508012
Bolt, hexagon deep recess
Loading…
↗
58
9470200247
Plug, spark (br8hs-10)
Loading…
↗
