9.9FMH (2023)
CYLINDER & CRANKCASE

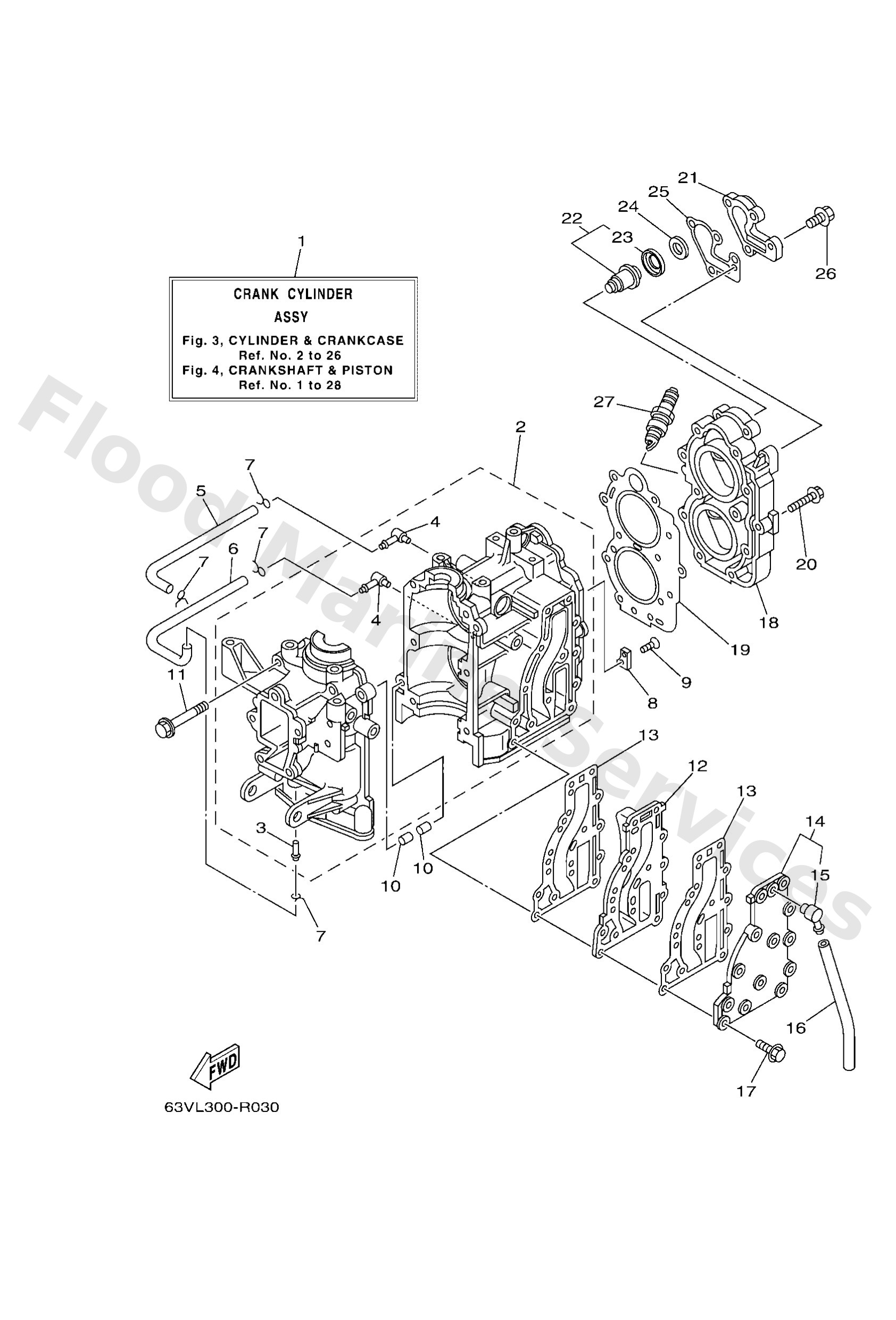

Diagram: CYLINDER & CRANKCASE
Parts List
Reference
Description
Price
1
63VW0090041S
Crank cylinder assembly
Loading…
↗
2
63V1510003
Crankcase assembly
Loading…
↗
3
6241448500
Pipe, joint
Loading…
↗
4
6501448503
Pipe, joint
Loading…
↗
5
9044507M08
Hose (l390)
Loading…
↗
7
9046706016
Clip (655)
Loading…
↗
8
6821132500
Anode 1
Loading…
↗
9
9878005015
Ybs53-516 screw,flat head
Loading…
↗
10
9360612019
Pin, dowel (614)
Loading…
↗
11
9011908M07
Bolt, with washer(63v)
Loading…
↗
12
63V41111001S
Inner cover, exhaust
Loading…
↗
13
63V41112A0
Gasket, exhaust inner cover
Loading…
↗
14
63V41113001S
Outer cover, exhaust
Loading…
↗
15
6761137200
Nipple, hose
Loading…
↗
16
9044509104
Hose (l1500)
Loading…
↗
17
9011906MA4
Bolt, with washer
Loading…
↗
18
6E711111011S
Head, cylinder 1
Loading…
↗
19
63V11181A2
Gasket, cylinder head 1
Loading…
↗
20
9010507M05
Bolt (682)
Loading…
↗
21
68212413001S
Cover, thermostat
Loading…
↗
22
6E51241130
Thermostat
Loading…
↗
23
6881241200
Seal, thermostat
Loading…
↗
24
9020116M03
Washer, plate(63v)
Loading…
↗
25
68212414A1
Gasket, cover
Loading…
↗
26
9011906MA2
Bolt, with washer
Loading…
↗
27
9470200271
Plug, spark (br7hs-10)
Loading…
↗
