250GETO (2006)
CYLINDER & CRANKCASE 1

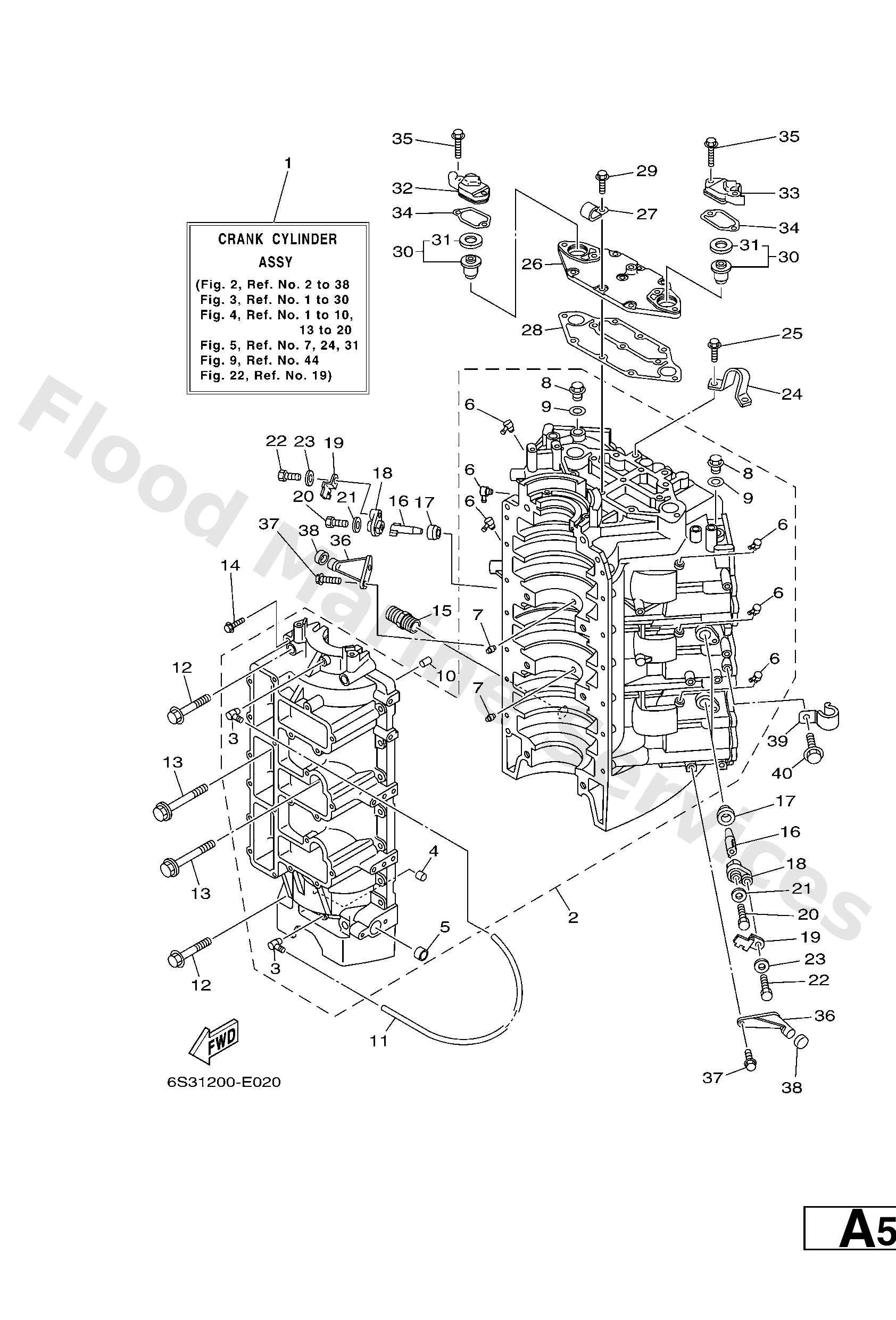

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6S3W0090001S
Crank cylinder assembly
Loading…
↗
2
6S315100001S
Crankcase assembly
Loading…
↗
3
6E51137201
Nipple, hose
Loading…
↗
4
9038406M07
Bush, bimetal formed(6r3)
Loading…
↗
5
9038316M01
Bush, formed(61a)
Loading…
↗
7
6631151801
Lock, bearing
Loading…
↗
8
9034014M00
Plug, straight screw(62y)
Loading…
↗
9
9043014115
Gasket (663)
Loading…
↗
10
9360812063
Pin, dowel (626)
Loading…
↗
11
9044507M10
-
Loading…
↗
12
9010510M62
Bolt, washer based(61a)
Loading…
↗
13
9010510M75
Bolt, washer based(65j)
Loading…
↗
14
9011906089
Bolt, with washer
Loading…
↗
15
6G51258100
Joint, hose
Loading…
↗
16
62Y1132500
Anode
Loading…
↗
17
66M1132800
Grommet, anode
Loading…
↗
18
66M113270094
Cover, anode
Loading…
↗
19
66M1253500
Plate
Loading…
↗
20
9709505012
Bolt, hexagon
Loading…
↗
21
9299505600
Washer, plain (646)
Loading…
↗
22
9701306020
Bolt(62y)
Loading…
↗
23
9290306600
Washer, plain (646)
Loading…
↗
24
6E51111901
Hanger, engine
Loading…
↗
25
9011908MA3
Bolt, with washer
Loading…
↗
26
61A11371001S
Cover
Loading…
↗
27
9046506M86
Clamp
Loading…
↗
28
61A11381A0
Gasket 1
Loading…
↗
29
9011906MA2
Bolt, with washer
Loading…
↗
30
6E51241130
Thermostat
Loading…
↗
31
6881241200
Seal, thermostat
Loading…
↗
32
6S312413211S
Cover, thermostat
Loading…
↗
33
6S312413311S
Cover, thermostat
Loading…
↗
34
61A12414A0
Gasket, cover
Loading…
↗
35
9011906MA5
Bolt, with washer
Loading…
↗
36
6E542761001S
Stopper
Loading…
↗
38
68F4453300
Damper, upper mount rubber
Loading…
↗
39
9046208019
Clamp
Loading…
↗
40
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
