F100BET (2007)
CYLINDER & CRANKCASE 1

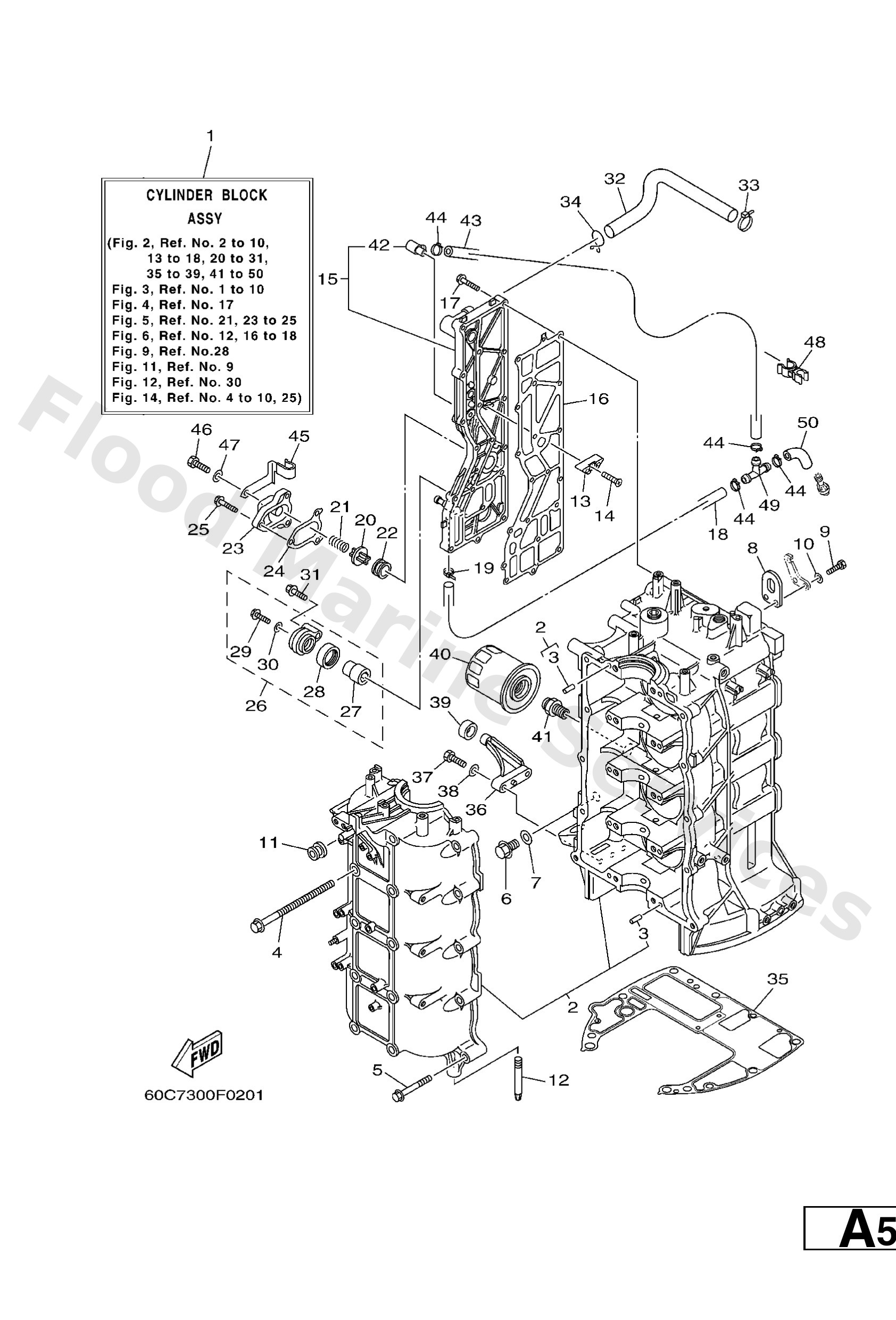

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
60CW009B051S
Go to P/N)PE0-OM-070007
Cylinder block assembly
Loading…
↗
2
67F15100031S
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9011910M88
Bolt, with washer
Loading…
↗
5
9011908M66
Bolt, with washer
Loading…
↗
6
9034014M06
Plug, straight screw(62y)
Loading…
↗
7
9043014115
Gasket (663)
Loading…
↗
8
62Y1111900
Hanger, engine
Loading…
↗
9
9709506020
Bolt(7u8)
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
9048012072
Grommet(53y)
Loading…
↗
12
67F1514200
Guide 1
Loading…
↗
13
6E51132500
Anode
Loading…
↗
14
9878004016
Screw, flat head(ga5)
Loading…
↗
15
67F41113201S
Outer cover, exhaust
Loading…
↗
16
67F41114A2
Gasket, exhaust outer cover
Loading…
↗
17
9011906MA4
Bolt, with washer
Loading…
↗
18
9044510016
Hose (l280)
Loading…
↗
19
9046511M10
Clamp
Loading…
↗
20
6G51241600
Valve, pressure control
Loading…
↗
21
9050116M11
Spring, compression (688)
Loading…
↗
22
9048020M05
Grommet (688)
Loading…
↗
23
67F1246A011S
Cover 1
Loading…
↗
24
67F12435A0
Gasket
Loading…
↗
25
9011906MA2
Bolt, with washer
Loading…
↗
26
69J1130110
Anode cover assembly
Loading…
↗
27
68V1132502
Anode
Loading…
↗
28
67F1132800
Grommet, anode
Loading…
↗
29
9010506M07
Bolt (689)
Loading…
↗
30
9043006M03
Gasket (6f5)
Loading…
↗
31
9757508540
Bolt, hexagon w/w deep recess
Loading…
↗
32
67F1243A00
Hose 1
Loading…
↗
34
9046720M15
Clip
Loading…
↗
35
68V1135100
Gasket, cylinder
Loading…
↗
36
67F427610094
Stopper
Loading…
↗
37
9709506025
Bolt
Loading…
↗
39
68F4453300
Damper, upper mount rubber
Loading…
↗
40
5GH1344000
Element assembly, oil cleaner
Loading…
↗
41
9040120145
Bolt, union
Loading…
↗
42
6761137200
Nipple, hose
Loading…
↗
43
9044510024
Hose (l360)
Loading…
↗
45
9046510047
Clamp
Loading…
↗
46
9709506012
Bolt(gh1)
Loading…
↗
48
9046410010
Clamp
Loading…
↗
49
6882437800
Pipe, joint
Loading…
↗
50
61A2431600
Pipe 6
Loading…
↗
?
21
68V-W009B-07-1S
Loading…
↗
?
215
67F-41113-10-1S
Loading…
↗
?
2151
-
Loading…
↗
?
216
67F-41114-A1
Loading…
↗
?
218
90445-10M40
Loading…
↗
?
242
-
Loading…
↗
?
243
-
Loading…
↗
?
244
-
Loading…
↗
?
245
-
Loading…
↗
?
246
-
Loading…
↗
?
247
-
Loading…
↗
?
248
-
Loading…
↗
?
249
-
Loading…
↗
?
1230
-
Loading…
↗
