F15AEH (2004)
CYLINDER & CRANKCASE 1

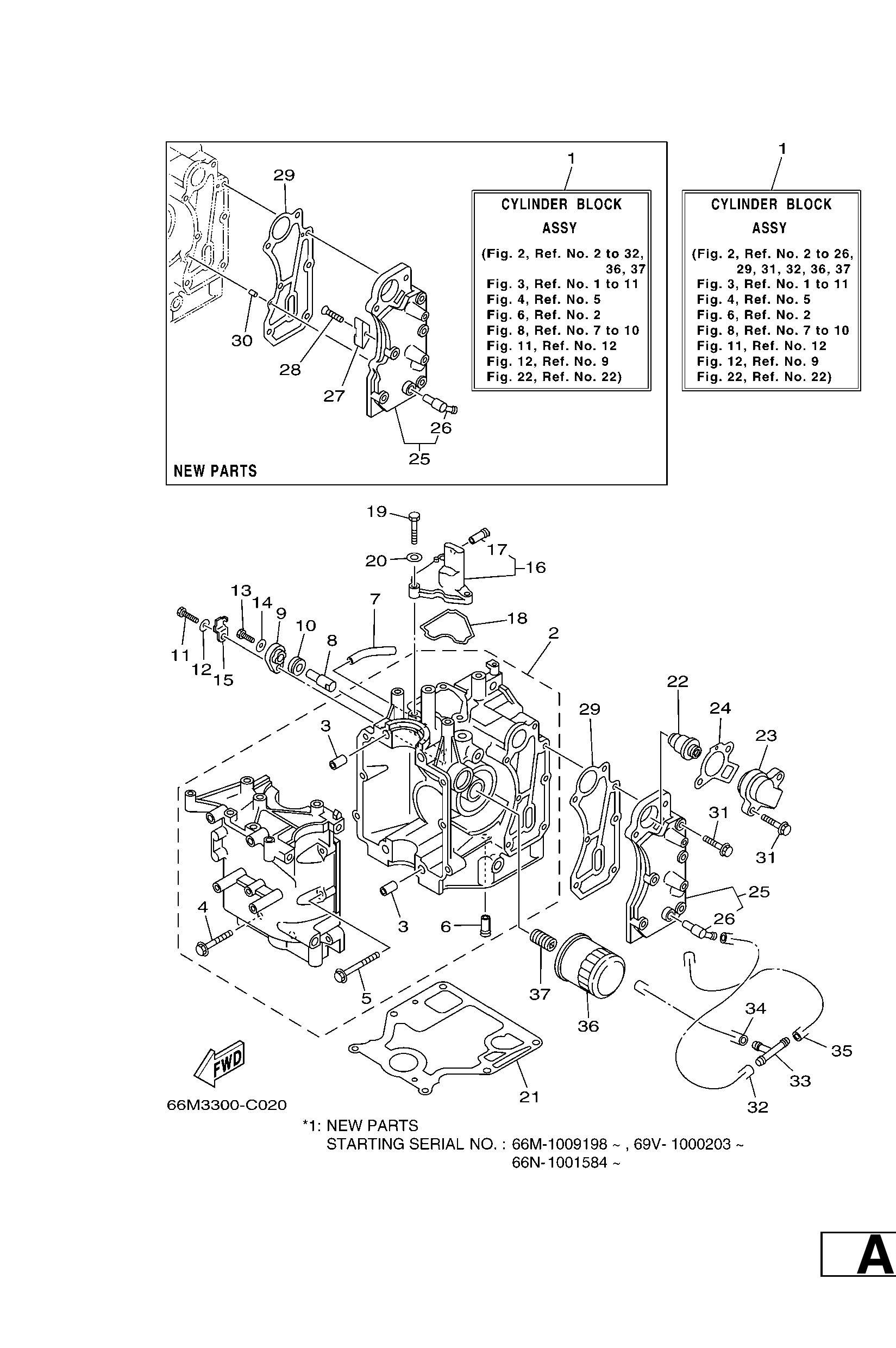

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
66MW009B121S
FLUSHING KIT *1
Cylinder block assembly (with reli
Loading…
↗
1
66MW009B111S
FLUSHING KIT
Cylinder block assembly (with reli
Loading…
↗
2
66M15100021S
NEW PARTS *1
Crankcase assembly
Loading…
↗
2
66M15100011S
Crankcase assembly
Loading…
↗
3
9951010114
Pin, dowel(3vd)
Loading…
↗
4
9011908M66
Bolt, with washer
Loading…
↗
5
9011906M14
Bolt, with washer (677)
Loading…
↗
6
6E52437700
Pipe, joint
Loading…
↗
7
9044510M46
Hose (l200)
Loading…
↗
8
66M1132500
Anode
Loading…
↗
9
66M113270094
Cover, anode
Loading…
↗
10
66M1132800
Grommet, anode
Loading…
↗
11
9709506020
Bolt(7u8)
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
9709505012
Bolt, hexagon
Loading…
↗
14
9299505600
Washer, plain (646)
Loading…
↗
15
66M1253500
Plate
Loading…
↗
16
66M11168001S
-
Loading…
↗
18
66M1135700
Seal, cylinder 3
Loading…
↗
21
66M1135110
NEW PARTS *1
Gasket, cylinder
Loading…
↗
21
66M1135100
Gasket, cylinder
Loading…
↗
22
66M1241100
Thermostat
Loading…
↗
23
6H312413001S
Cover, thermostat
Loading…
↗
24
62Y1241400
Gasket, cover
Loading…
↗
25
66M41113101S
FLUSHING KIT
Outer Cover, Exhaust
Loading…
↗
25
66M41113301S
FLUSHING KIT *1
Outer Cover, Exhaust
Loading…
↗
26
6761137200
Nipple, hose
Loading…
↗
27
6E51132500
NEW PARTS *1
Anode
Loading…
↗
28
9878004015
NEW PARTS *1
Screw, flat head(ga5)
Loading…
↗
29
66M4111400
Gasket, exhaust outer cover
Loading…
↗
29
66M4111401
NEW PARTS *1
Gasket, exhaust outer cover
Loading…
↗
30
9360412M07
NEW PARTS *1
Pin, dowel (688)
Loading…
↗
31
9011906MA4
Bolt, with washer
Loading…
↗
32
9044509061
-
Loading…
↗
33
6882437800
Pipe, joint
Loading…
↗
34
9044509086
Hose (l1500)
Loading…
↗
35
9044509105
Hose (l420)
Loading…
↗
36
5GH1344000
Element assembly, oil cleaner
Loading…
↗
37
9040120M00
Bolt, union(62y)
Loading…
↗
