F2.5AMH (2012)
CYLINDER & CRANKCASE 1

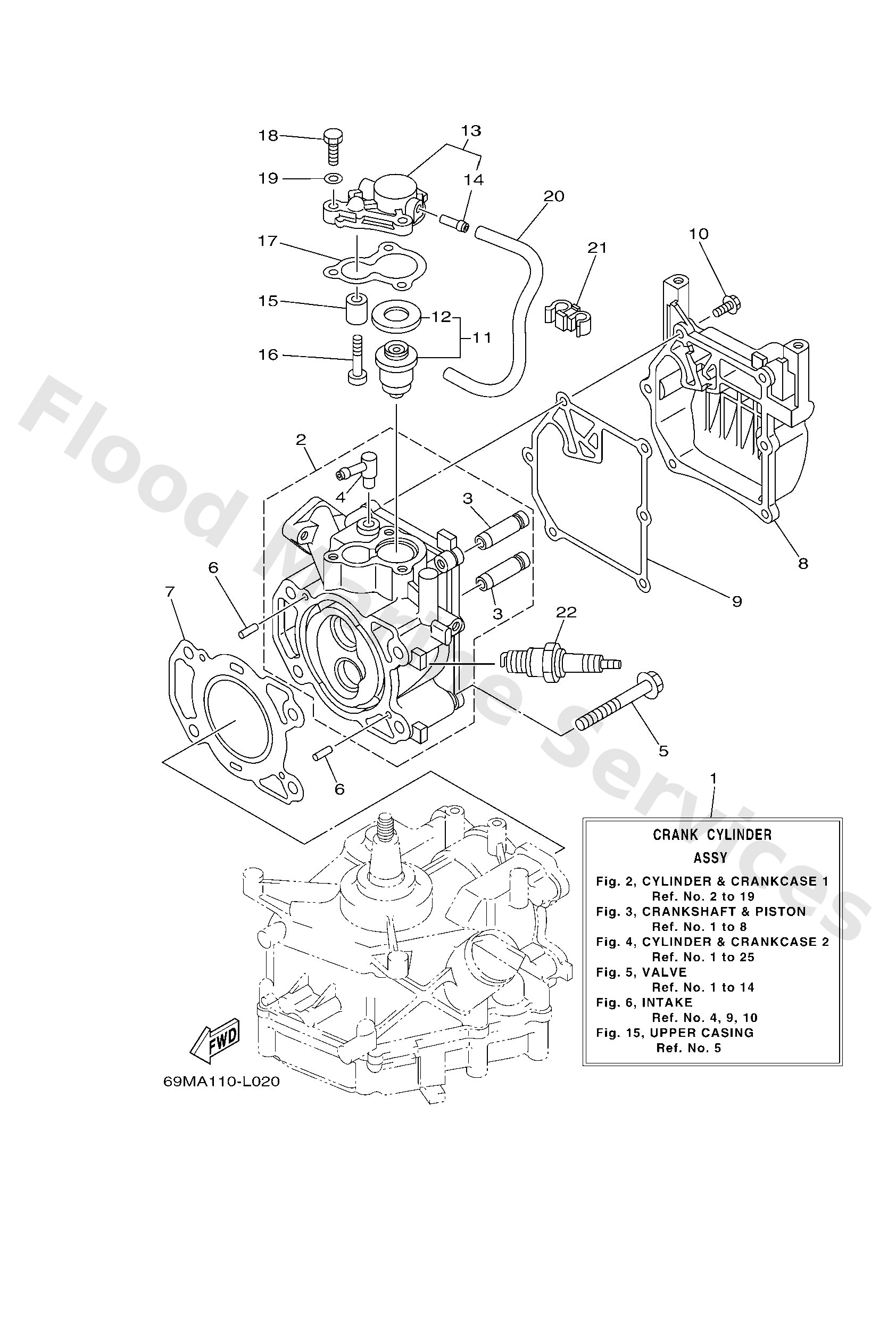

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
69MWE090011S
Crank Cylinder assembly
Loading…
↗
2
69ME1111011S
Head cylinder (2.5)
Loading…
↗
3
67D1113310
Guide, valve 1
Loading…
↗
4
6761137200
Nipple, hose
Loading…
↗
5
9010508M36
Bolt (6g8)
Loading…
↗
6
9360412M07
Pin, dowel (688)
Loading…
↗
7
69M1118100
Gasket, cylinder head 1
Loading…
↗
8
69ME1191001S
Cover,cylinder head(f2.5)
Loading…
↗
9
69M11193A0
Gasket, head cover 1
Loading…
↗
10
9010506039
Bolt, flange
Loading…
↗
11
69M1241101
Thermostat
Loading…
↗
12
6881241200
Seal, thermostat
Loading…
↗
13
69ME2413001S
Cover, thermostat
Loading…
↗
14
6502437800
Pipe, joint 2
Loading…
↗
15
68DE132500
Anode
Loading…
↗
16
9788005025
Screw, panhead (a93)
Loading…
↗
17
68DE2414A0
Gasket, cover
Loading…
↗
18
9709506020
Bolt(7u8)
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
20
9044509808
Hose
Loading…
↗
21
9046409013
Clamp
Loading…
↗
22
9470200248
Plug, spark (br6hs)
