F2.5BMH (2023)
CYLINDER & CRANKCASE 1

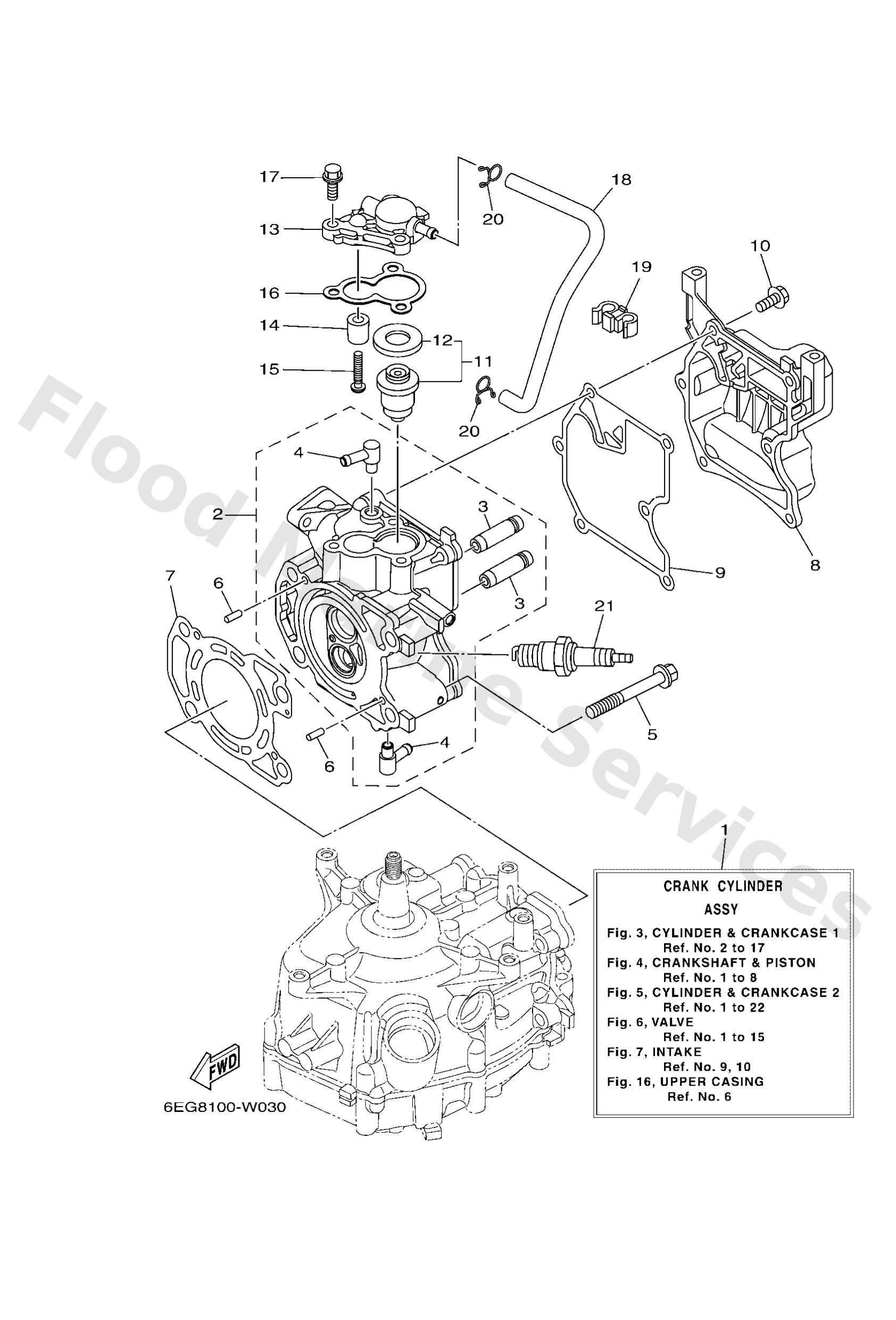

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6EGWE090041S
Crank cylinder ass
Loading…
↗
2
6EGWE110001S
Cylinder head assembly
Loading…
↗
3
6EEE113310
Guide, valve 1
Loading…
↗
4
6761137200
Nipple, hose
Loading…
↗
5
9010508M36
Bolt (6g8)
Loading…
↗
6
9360412M07
Pin, dowel (688)
Loading…
↗
7
6EGE118100
Gasket, cylinder h
Loading…
↗
8
6EGE119100
Cover, cylinder he
Loading…
↗
9
6EGE119300
Gasket, head cover
Loading…
↗
10
9010506039
Bolt, flange
Loading…
↗
11
66M1241101
Thermostat
Loading…
↗
12
6881241200
Seal, thermostat
Loading…
↗
13
6EGE2413001S
Cover, thermostat
Loading…
↗
14
6G81132500
Anode
Loading…
↗
15
9788005025
Screw, panhead (a93)
Loading…
↗
16
67D12414A0
Gasket, cover
Loading…
↗
17
9011906MA2
Bolt, with washer
Loading…
↗
18
9044509808
Hose
Loading…
↗
19
9046409013
Clamp
Loading…
↗
20
9046709M09
Clip(6k8)
Loading…
↗
21
9470200372
Plug, spark (cr6hsb)
Loading…
↗
