F200CET (2010)
CYLINDER & CRANKCASE 1

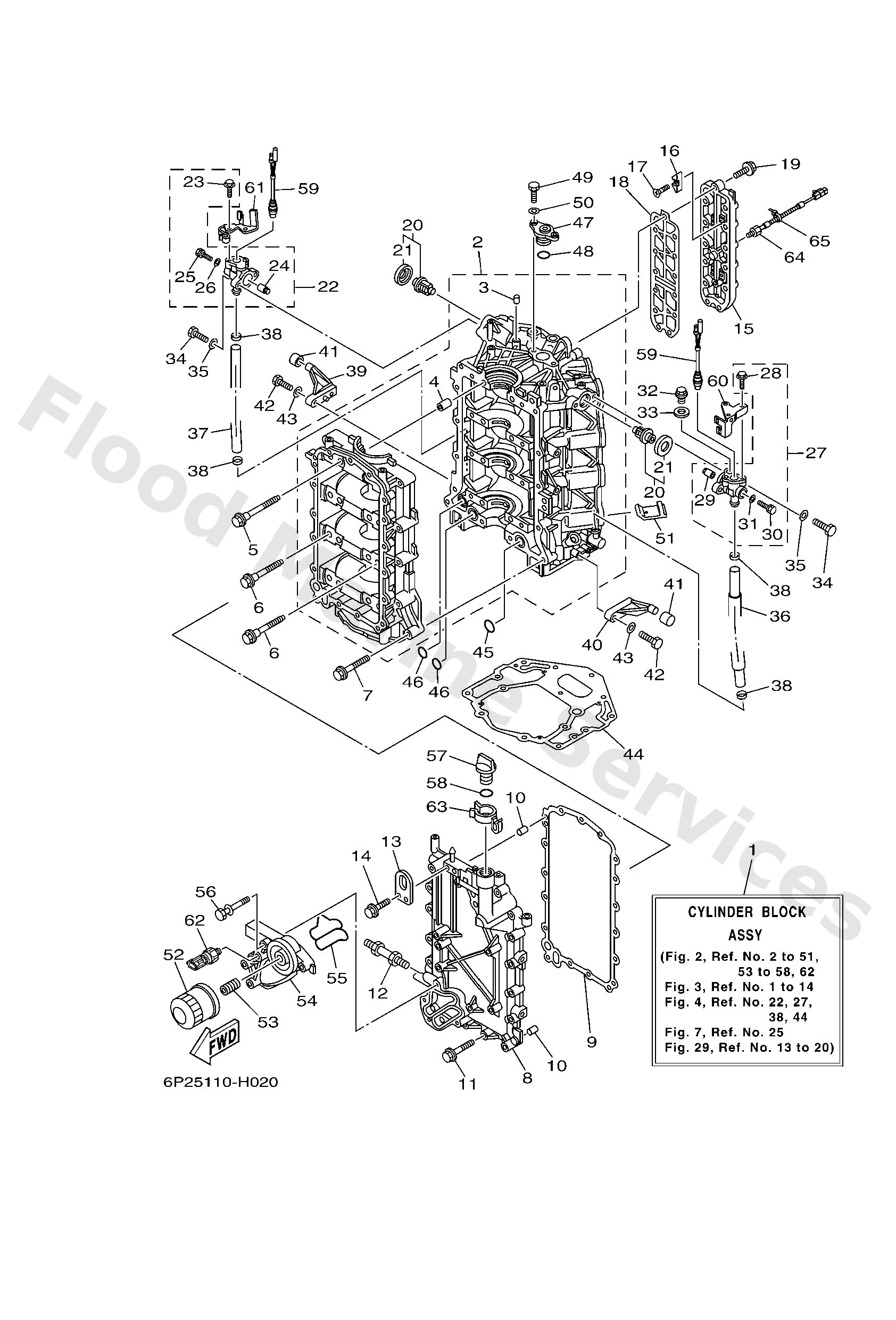

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6P2W009B049S
Cylinder block assembly
Loading…
↗
2
6P215100029S
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9181418001
Pin, dowel
Loading…
↗
5
69J1518700
Bolt
Loading…
↗
6
69J1548100
Bolt 1
Loading…
↗
7
9011908M66
Bolt, with washer
Loading…
↗
8
6P215411019S
Cover, crankcase 1
Loading…
↗
9
69J1545100
Gasket, crankcase cover 1
Loading…
↗
11
9011908009
Bolt, with washer
Loading…
↗
12
9011610027
Bolt, stud
Loading…
↗
13
69J1111900
Hanger, engine
Loading…
↗
14
9011906MA2
Bolt, with washer
Loading…
↗
15
6P21131C009S
Cover, joint
Loading…
↗
16
6E51132500
Anode
Loading…
↗
17
9878004015
Screw, flat head(ga5)
Loading…
↗
18
6P21131B00
Gasket, cover
Loading…
↗
19
9011906MA4
Bolt, with washer
Loading…
↗
20
67F1241101
Thermostat
Loading…
↗
21
67F1241200
Seal, thermostat
Loading…
↗
22
6P21240H009S
Anode assembly
Loading…
↗
23
9010906M80
Bolt
Loading…
↗
24
6P31132500
Anode
Loading…
↗
25
9010505012
Screw, hexagon
Loading…
↗
26
9043005002
Gasket
Loading…
↗
27
6P31240H009S
Anode assembly
Loading…
↗
32
9034014M06
Plug, straight screw(62y)
Loading…
↗
33
9043014115
Gasket (663)
Loading…
↗
34
9709506025
Bolt
Loading…
↗
35
9299506600
Washer, plain (646)
Loading…
↗
36
6P21243A00
Hose 1
Loading…
↗
37
69J1243E00
Hose 2
Loading…
↗
38
9046511M10
Clamp
Loading…
↗
39
67F427610194
Stopper
Loading…
↗
40
6P2427610094
Stopper
Loading…
↗
41
68F4453301
Damper, upper mount rubber
Loading…
↗
44
69J1135111
Gasket, cylinder
Loading…
↗
45
9321025552
O-ring (22f)
Loading…
↗
46
9321019MJ1
O-ring
Loading…
↗
47
69J113130094
Plug, blind
Loading…
↗
48
9321025647
O-ring (7or)
Loading…
↗
49
9709506020
Bolt(7u8)
Loading…
↗
51
69J1466400
Grommet, water shut
Loading…
↗
52
69J1344001
Element assembly, oil cleaner
Loading…
↗
53
69J1285800
Bolt, union
Loading…
↗
54
6P213446009S
Connector
Loading…
↗
55
6P21347700
Gasket
Loading…
↗
56
9011906025
Bolt, with washer
Loading…
↗
57
6G81536300
Plug, oil
Loading…
↗
58
9321024M79
O-ring
Loading…
↗
59
6P28256001
Thermo switch assembly
Loading…
↗
60
6P28258800
Plate
Loading…
↗
61
6P28238900
Plate 2
Loading…
↗
62
6AW8365100
Sender, oil pressure
Loading…
↗
63
6P28359700
Clamp
Loading…
↗
64
6P28578000
Sensor, knock
Loading…
↗
