F20BMH (2007)
CYLINDER & CRANKCASE 1

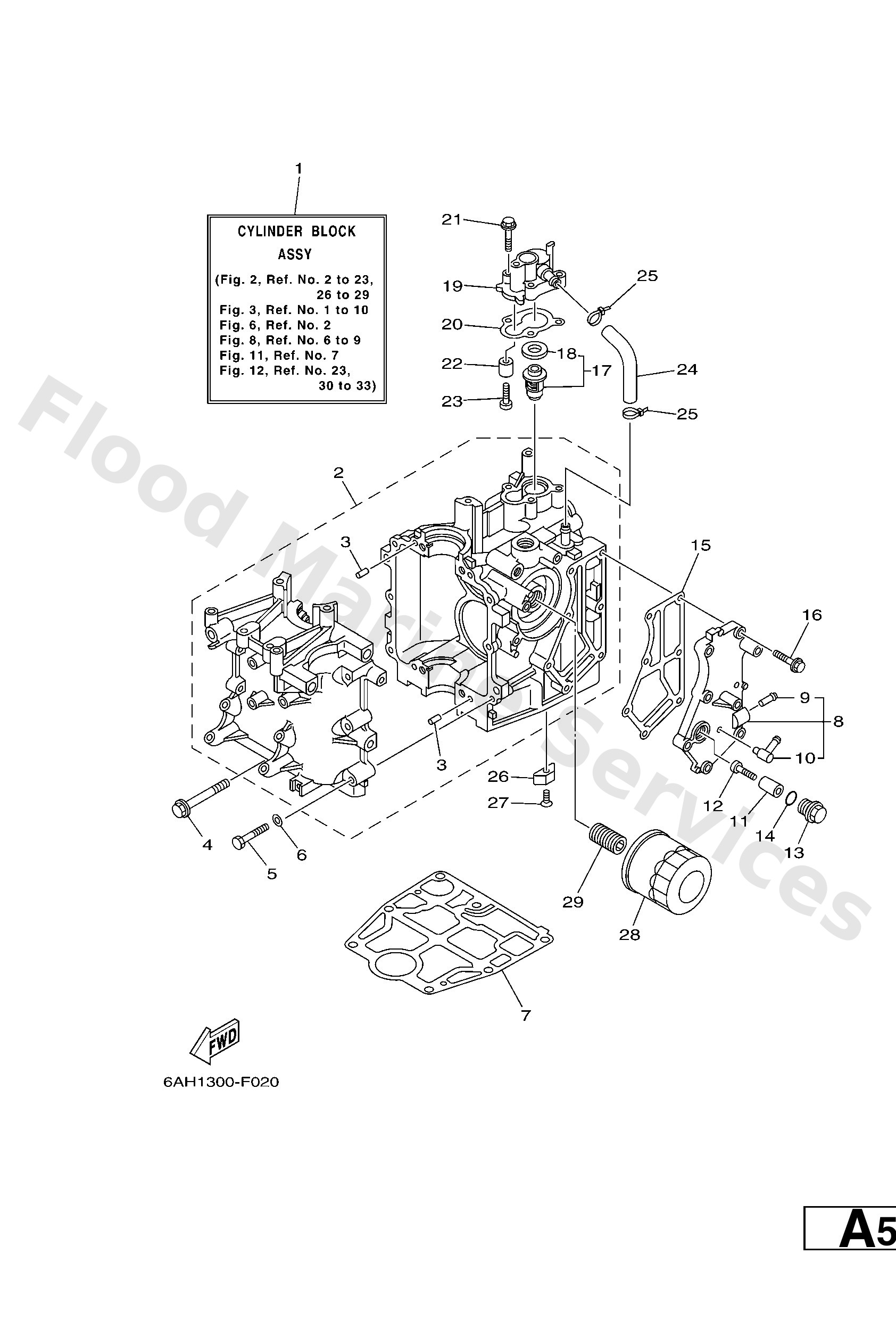

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6AHW009B001S
Cylinder block assembly
Loading…
↗
2
6AH15100001S
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9011908093
Bolt, with washer
Loading…
↗
5
9701306040
Bolt (682)
Loading…
↗
6
9290306600
Washer, plain (646)
Loading…
↗
7
6AH1135100
Gasket, cylinder
Loading…
↗
8
6AH41113001S
Outer cover, exhaust & pipe
Loading…
↗
9
6502437800
Pipe, joint 2
Loading…
↗
10
6761137200
Nipple, hose
Loading…
↗
11
6G81132500
Anode
Loading…
↗
12
9788005025
Screw, panhead (a93)
Loading…
↗
13
6G81119701
Plug, blind
Loading…
↗
14
9321013M63
O-ring (6g8)
Loading…
↗
15
6AH4111400
Gasket, exhaust outer cover
Loading…
↗
16
9011906MA3
Bolt, with washer
Loading…
↗
17
6AH1241100
Thermostat
Loading…
↗
18
6881241200
Seal, thermostat
Loading…
↗
19
6AH12413001S
Cover, thermostat
Loading…
↗
20
6AH1241400
Gasket, cover
Loading…
↗
24
6AH1248100
Pipe 1
Loading…
↗
25
9046511M10
Clamp
Loading…
↗
26
6E51132500
Anode
Loading…
↗
27
9878004016
Screw, flat head(ga5)
Loading…
↗
28
5GH1344020
Element assembly, oil cleaner
Loading…
↗
29
6C51285800
Bolt, union
Loading…
↗
